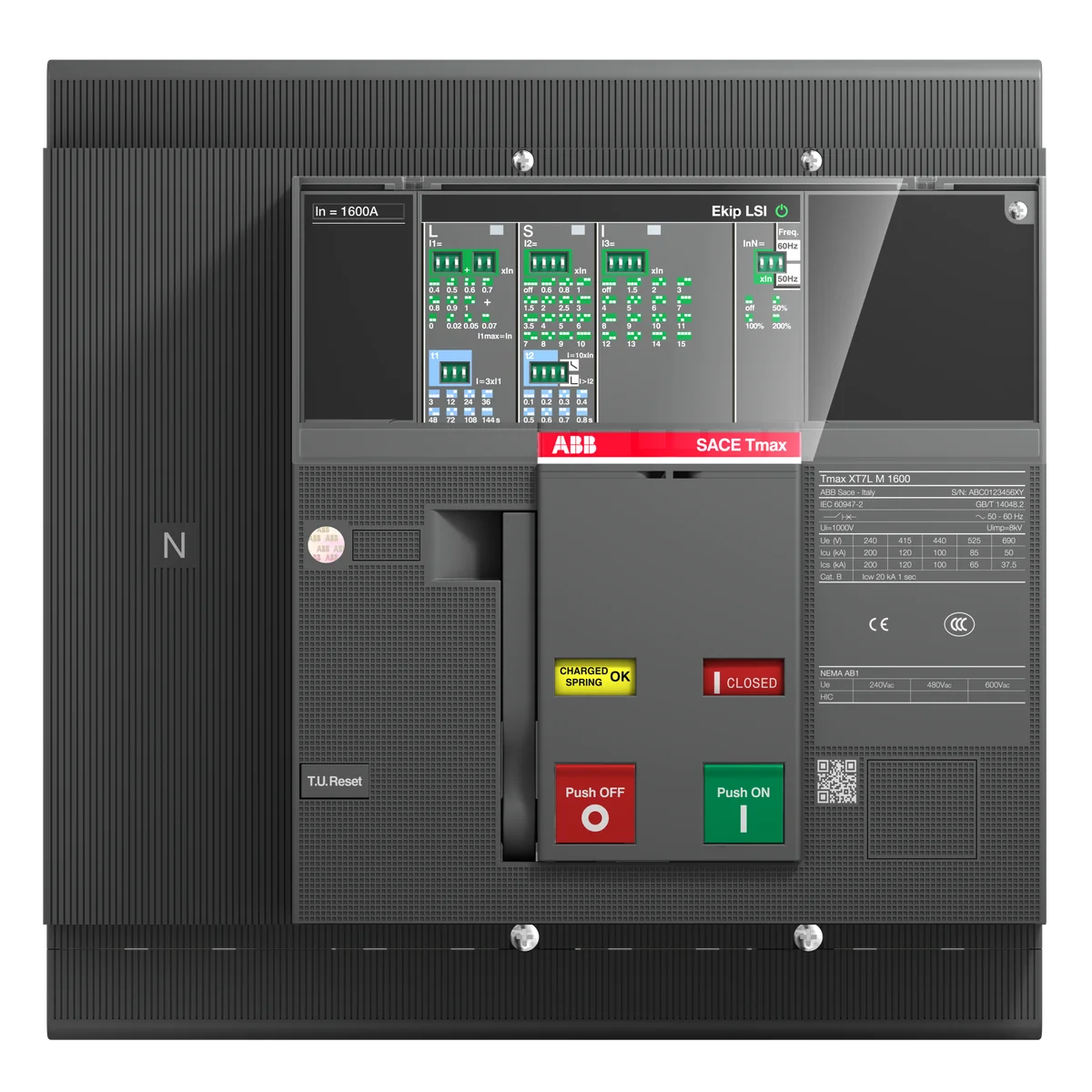

ABB 1SDA101713R1 XT7H M 1600 Ekip Dip LS/I In1600A 4p F F 1600A 4-Pole Fixed Power Circuit Breaker

The ABB 1SDA101713R1 XT7H M 1600 Ekip Dip LS/I In1600A 4p F F is a 1600 A, 4-pole fixed-mount power circuit breaker from the Tmax XT7 series, engineered for transformer, generator, and installation protection in demanding industrial power distribution applications. Equipped with the Ekip Dip LS/I electronic trip unit, it delivers precise long-time and instantaneous protection with field-adjustable settings, making it the preferred choice for engineers specifying high-current switchgear panels.

Technical Specifications

Certifications & Standards

• IEC 60947-2: International standard for low-voltage switchgear and controlgear — circuit breakers
• CE: Conformité Européenne marking confirming compliance with applicable EU directives
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical safety
• UL 2799: Recognised to UL standard for electrical power distribution systems
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU

Applications & Use Cases

• Transformer and generator outgoing feeder protection in industrial power distribution boards
• Main incomer protection for large switchgear panels and motor control centres
• Installation protection in data centres, utilities, and heavy manufacturing facilities
• High-current busbar and cable feeder protection requiring adjustable LS/I trip characteristics
