- Part number
- 1SDA101711R1
- Model no
- XT7H
- CE
- RoHS

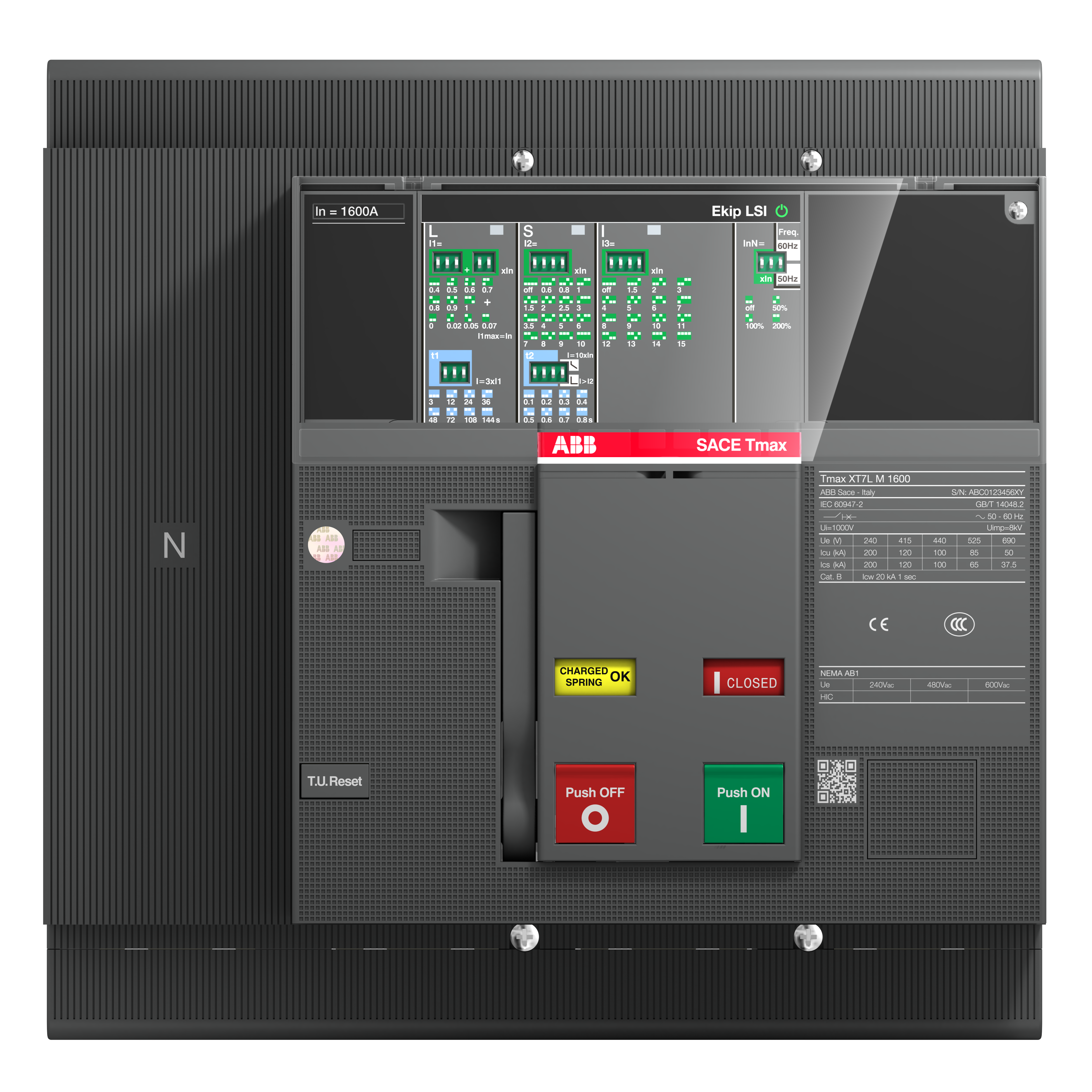

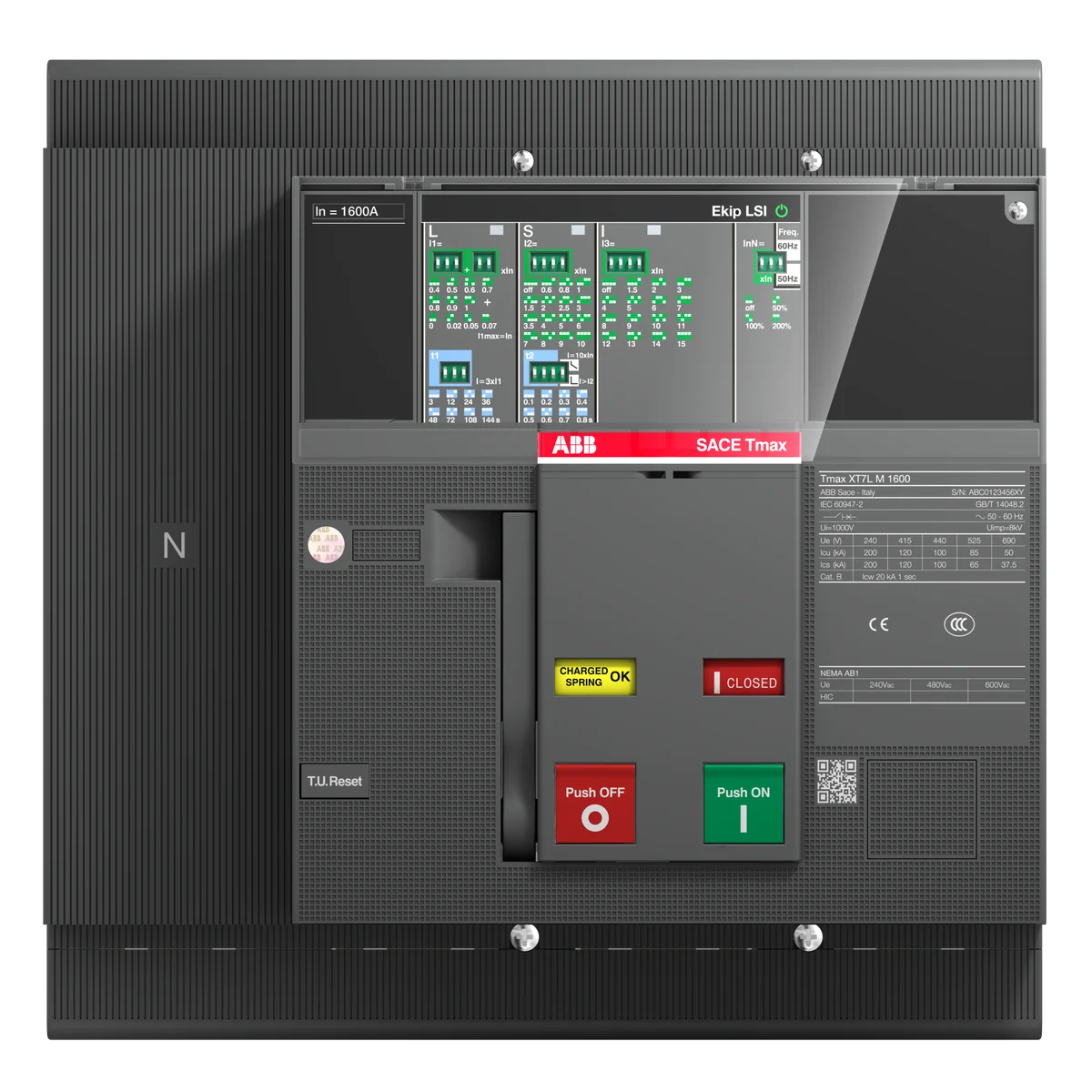

ABB 1SDA101711R1 XT7H M 1000 Ekip Dip LS/I In1000A 4p F F 4-Pole 1000A 70kA Fixed Moulded Case Circuit Breaker
Description
About the XT7H
About the XT7H
The ABB 1SDA101711R1 XT7H M 1000 Ekip Dip LS/I In1000A 4p F F is a 4-pole, 1000 A fixed-mount power circuit-breaker from the Tmax XT7 series, designed for protection of transformers, generators, and electrical installations. Rated at 70 kA breaking capacity at 400 V AC and equipped with the Ekip Dip LS/I electronic trip unit, this breaker delivers precision long-time and instantaneous overcurrent protection in a compact 280 × 268 × 178 mm frame weighing just 14 kg.
Certifications & Standards
- IEC 60947-2: Internationally recognised standard for low-voltage switchgear and controlgear — circuit-breakers
- CE: Confirmed compliance with applicable European Union health, safety, and environmental protection requirements
- RoHS: Compliant with EU Directive 2011/65/EU on the restriction of hazardous substances in electrical and electronic equipment
- REACH: Compliant with EU Regulation (EC) No 1907/2006 concerning the registration, evaluation, authorisation, and restriction of chemicals
- EU Directive 2011/65/EU: RoHS recast directive restricting ten hazardous substances in electrical and electronic equipment
- Amendment 2015/863: EU RoHS amendment expanding the restricted substances list under Directive 2011/65/EU
- WEEE: Compliant with EU Directive 2012/19/EU on waste electrical and electronic equipment — supports proper end-of-life recycling
Applications & Use Cases
- Transformer feeder and secondary protection in medium-to-large power distribution panels
- Generator circuit protection in standby and prime power installations
- Main incomer and bus-coupler protection in industrial switchboards
- Motor branch circuit protection for large LV drives and soft starters
- Data centre and critical infrastructure power distribution
- Marine and offshore power panels requiring high breaking capacity at 1000 A
Specification
Full specification
Material Compliance 3
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| SCIP | 38bb7f5e-1bda-479e-bd27-a7077a493213 Italy |
| Simplified SCIP | f9cb3432-b2fd-4919-a25e-f9b7b0e8afce Romania, ff578b92-cc47-402a-b220-c465907d9884 France, 70ca6750-50f9-44e3-88d8-a6668ac1d141 Spain, b7c44647-92fe-4e75-8c60-6c57cbc9f657 Germany, 9ae61bc5-d9ad-40b7-add9-4dd9b9953254 Belgium, 1c8b5939-cef2-4c1b-905f-49ce8b12d1bb Norway, f32cc476-cc72-4615-8a2b-76e32031b169 Hungary, 6f88159c-6755-436b-8cf2-dc74ed3b3b54 Germany, 150ce725-277a-497f-b219-7dfd5d6fbad8 Denmark, 9e3204f7-5c5b-42fc-82dc-ad0692e84871 Germany, 69246004-a361-4c88-996a-fc269e904907 Sweden, ade523fd-e153-4788-8e27-a134e51e6e1c Estonia, 355794ae-5a79-4208-97c4-e544a3a2a2ac Belgium, d8cca2c9-37da-49aa-b6ac-168903a4e69c Portugal, 8ed66979-53ed-4df0-97fc-857c8a1afae9 Sweden, 828469c9-7cea-4563-ae41-0ba55f1e5fc3 Germany, 362f202b-c8bc-4550-a781-aae2cbffcbf6 Germany, 01e23f95-f7c9-4f07-9cfe-47918ab54561 Finland, bc8e2ec6-f9a8-4054-bfd6-303abad86e30 Bulgaria, ed61e922-1939-4425-a62f-15a2f0e606b6 Hungary, 88466eee-5db3-4d5a-83bc-ee801e630664 Greece, c6244d50-a73d-448b-bb84-fa8229794382 Croatia, 07566b0c-4421-476a-939a-a896ae0e7326 Netherlands, 06084a55-b039-4bdf-a119-933c10ff71d2 Czechia, 82cc0b74-87df-4bac-b1e8-cf8b8ee1bbb4 France, 29d848bc-87cf-4941-979a-f952b374ed12 Poland, 90d6415a-53e1-49f0-8840-d773e76a0eca Poland, 3ce28906-6d88-4c11-87b3-47f740201419 Poland |
Environmental 1
| Ambient Air Temperature | Operation -40 ... 125 °C |
|---|
Dimensions 4
| Product Net Width | 280 mm |
|---|---|
| Product Net Height | 268 mm |
| Product Net Depth / Length | 178 mm |
| Product Net Weight | 14 kg |
Show all 57 specifications ↓ Show less ↑49 more values in Identification, Additional Information, Technical, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SDA101711R1 |
|---|---|
| Type designation | XT7H |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8056221017558 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
Additional Information 5
| Circuit Breaker Type to be Associated | Power Distribution |
|---|---|
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
Technical 20
| Current Type | AC |
|---|---|
| Electrical Durability | 3000 cycle, 60 cycles per hour |
| Mechanical Durability | 20000 cycle, 60 cycles per hour |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 37 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 50 kA, (690 V AC) 42 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | 20 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 50 kA, (690 V AC) 42 kA |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC60947-2 |
| Sub-type | XT7M |
| Terminal Connection Type | Front |
External Classifications and Standards 3
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 360 mm |
| Package Level 1 Height | 350 mm |
| Package Level 1 Depth / Length | 360 mm |
| Package Level 1 Gross Weight | 15.5 kg |
| Package Level 1 EAN | 8056221017558 |
| Shipping weight | 15.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SDA101711R1
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- IEC60947-2
Quick answers
Questions about the XT7H
What is the rated current of XT7H?
The rated current of XT7H is 1000 A.
What is the HS code of XT7H for customs?
The tariff (HS) code on file for XT7H is 85362090.
What is the EAN of XT7H?
The EAN (GTIN) of XT7H is 8056221017558.
Where does XT7H ship from, and how fast?
XT7H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
