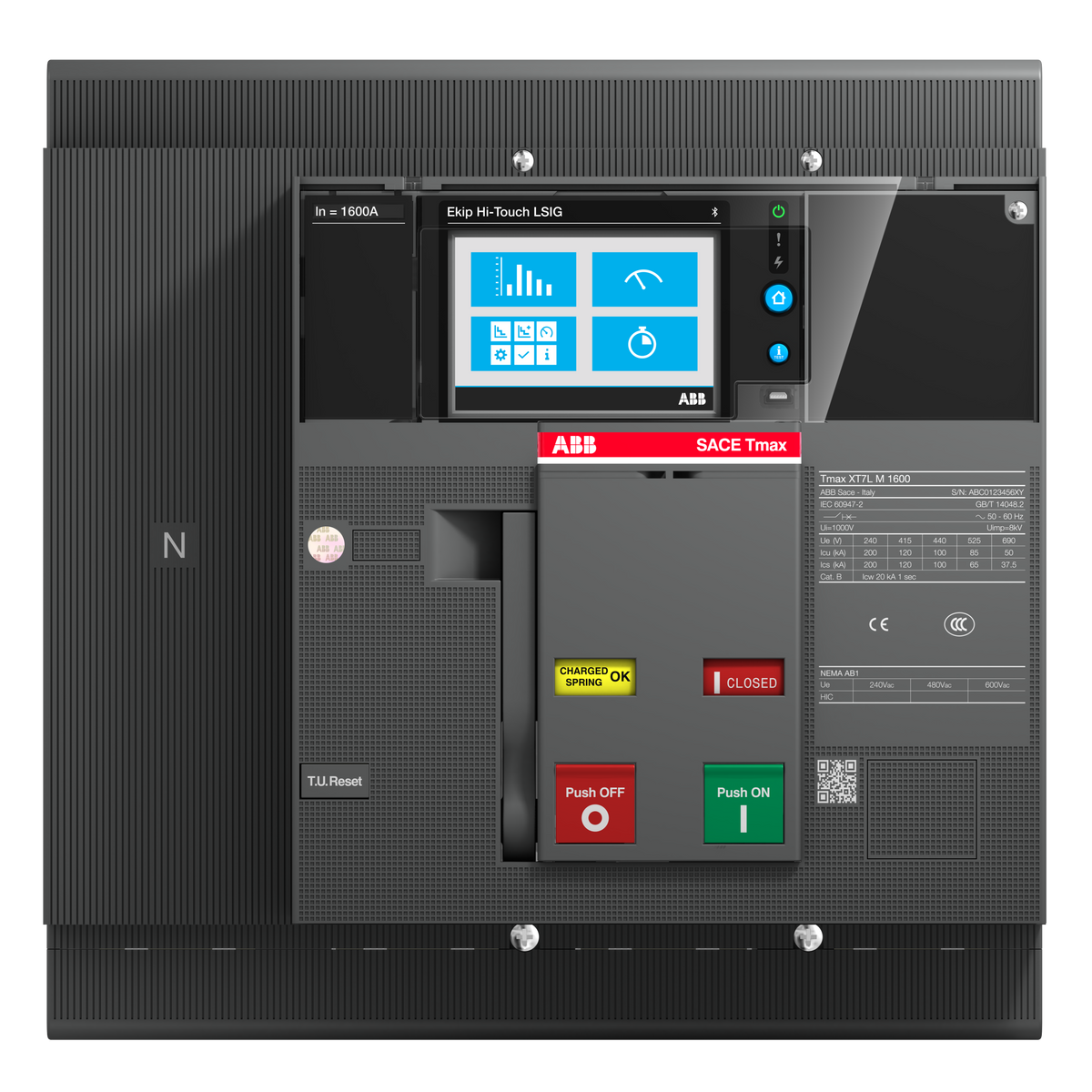

ABB 1SDA101677R1 XT7S M 1600 EkipTouch Meas.LSI 1600 4pFF 50kA Molded Case Circuit Breaker (MCCB)

% $-4,056.37
ABB 1SDA101677R1 XT7S M 1600 Ekip Touch LSI 4P MCCB - 50kA breaking capacity
ABB 1SDA101677R1 XT7S M 1600 Ekip Touch LSI 4P MCCB - 50kA breaking capacity

ABB 1SDA101677R1 XT7S M 1600 EkipTouch Meas.LSI 1600 4pFF 50kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101677R1
Catalog No: XT7S M 1600 EkipTouch Meas.LSI 1600 4pFF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 50 kA
Breaking Type: Ekip Touch Measuring LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,056.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA101677R1 is a four-pole, 1600 A Tmax XT7S M molded case circuit breaker with spring-charged stored-energy operation and an Ekip Touch Measuring LSI release for overload, short-time, and instantaneous protection. Rated 690 V AC, it breaks up to 50 kA at 400-440 V AC.

Technical Specifications

SKU 1SDA101677R1
Brand ABB
Series Tmax XT
Extended Product Type XT7S M 1600 EkipTouch Meas.LSI 1600 4pFF
EAN 8056221017213
Number of Poles 4P
Rated Current (In/Iu) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Short-time Withstand Current (Icw) 20 kA
Release / Trip Unit Ekip Touch Measuring LSI
Release Type Electronic (EL)
Short-Circuit Performance Level S
Terminal Connection Front
Mounting Fixed
Power Loss per Pole 94 W
Dimensions (W x H x D) 280 x 268 x 178 mm
Net Weight 12.5 kg
Ambient Operating Temperature -40 to 125 deg C

Certifications & Standards

  • IEC 60947-2

Selection Notes

The four-pole, 1600 A configuration is the largest frame in this XT7S M family covered here, suited to main distribution boards where the neutral also needs disconnection. Its 20 kA, 1 s short-time withstand together with the S-stage of the LSI release allows it to stay closed through a downstream short circuit long enough for a smaller breaker to clear first.

Technical Details

Short Description
ABB 1SDA101677R1 - Tmax XT7S M 1600A 4P MCCB, stored-energy mechanism, Ekip Touch Meas.LSI release, 50kA at 400-440V AC, 690V AC rated.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7S M 1600 EkipTouch Meas.LSI 1600 4pFF
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7S M 1600 EkipTouch Meas.LSI 1600 4pFF
Tariff Code
853620
