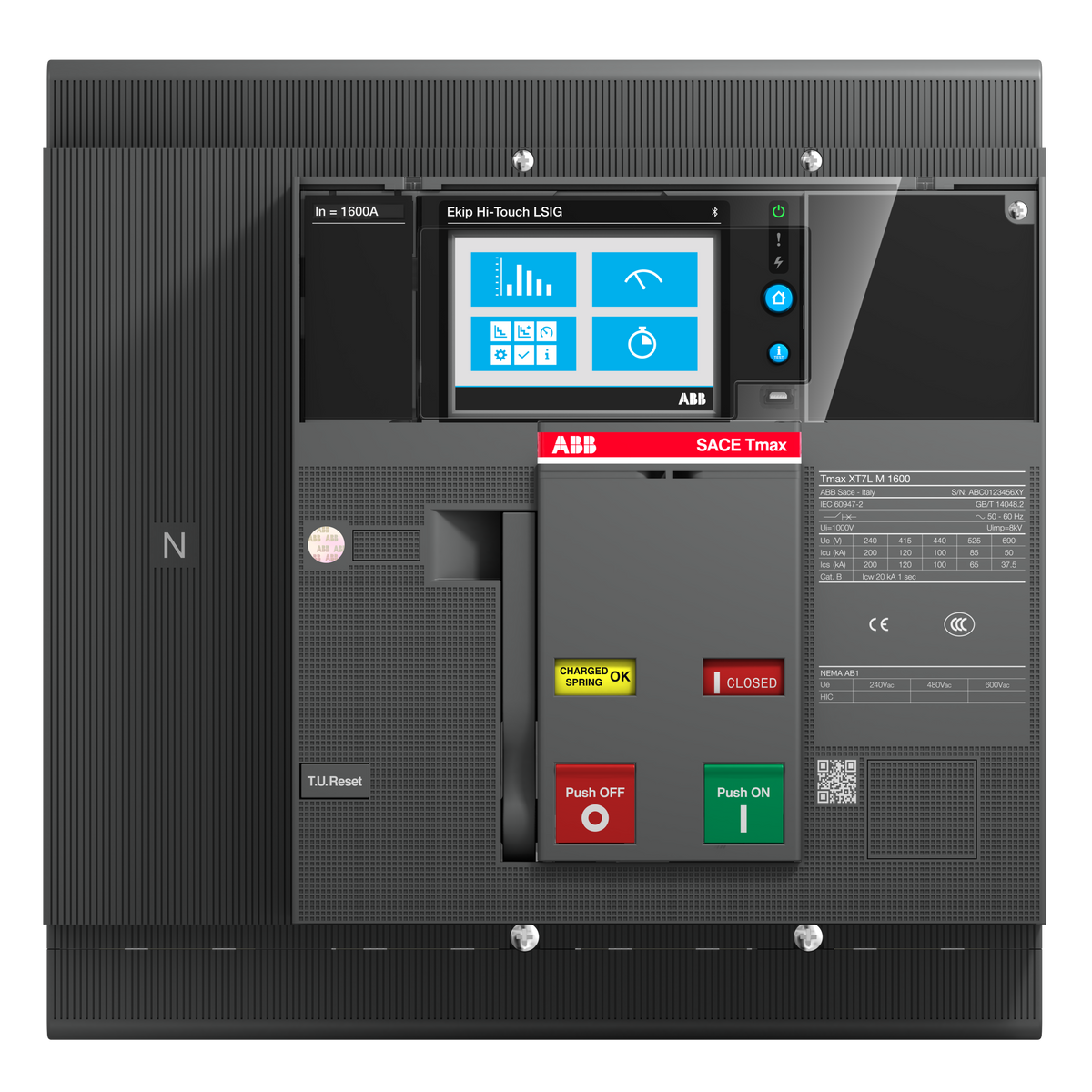

ABB 1SDA101674R1 XT7S M 800 Ekip Touch Meas.LSI 800 4p FF 50kA Molded Case Circuit Breaker (MCCB)

% $-2,267.82
ABB 1SDA101674R1 XT7S M 800 Ekip Touch LSI 4P MCCB - 50kA breaking capacity
ABB 1SDA101674R1 XT7S M 800 Ekip Touch LSI 4P MCCB - 50kA breaking capacity

ABB 1SDA101674R1 XT7S M 800 Ekip Touch Meas.LSI 800 4p FF 50kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101674R1
Catalog No: XT7S M 800 Ekip Touch Meas.LSI 800 4p FF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 800
Breaking Capacity: 50 kA
Breaking Type: Ekip Touch Measuring LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,267.82

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Rated 800 A across four poles, the ABB 1SDA101674R1 is a Tmax XT7S M molded case circuit breaker with a spring-charged operating mechanism and an Ekip Touch Measuring LSI release. It carries a 690 V AC rating, a 50 kA breaking capacity at 400-440 V AC, and a 20 kA Icw.

Technical Specifications

SKU 1SDA101674R1
Brand ABB
Series Tmax XT
Extended Product Type XT7S M 800 Ekip Touch Meas.LSI 800 4p FF
EAN 8056221017183
Number of Poles 4P
Rated Current (In/Iu) 800 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Short-time Withstand Current (Icw) 20 kA
Release / Trip Unit Ekip Touch Measuring LSI
Release Type Electronic (EL)
Short-Circuit Performance Level S
Terminal Connection Front
Mounting Fixed
Power Loss per Pole 24 W
Dimensions (W x H x D) 280 x 268 x 178 mm
Net Weight 12.5 kg
Ambient Operating Temperature -40 to 125 deg C

Certifications & Standards

  • IEC 60947-2

Selection Notes

This four-pole 800 A unit shares its rating with the three-pole M variant in the same frame - take the four-pole version when the neutral needs switching. The spring-charged stored-energy mechanism (20,000 mechanical cycles) makes it the pick over a plain-lever XT7S where the breaker is cycled frequently rather than left closed.

Technical Details

Short Description
ABB 1SDA101674R1 - Tmax XT7S M 800A 4P MCCB, stored-energy mechanism, Ekip Touch Meas.LSI release, 50kA at 400-440V AC, 690V AC rated.
Rated Current (Ampere)
800
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7S M 800 Ekip Touch Meas.LSI 800 4p FF
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7S M 800 Ekip Touch Meas.LSI 800 4p FF
Tariff Code
853620
