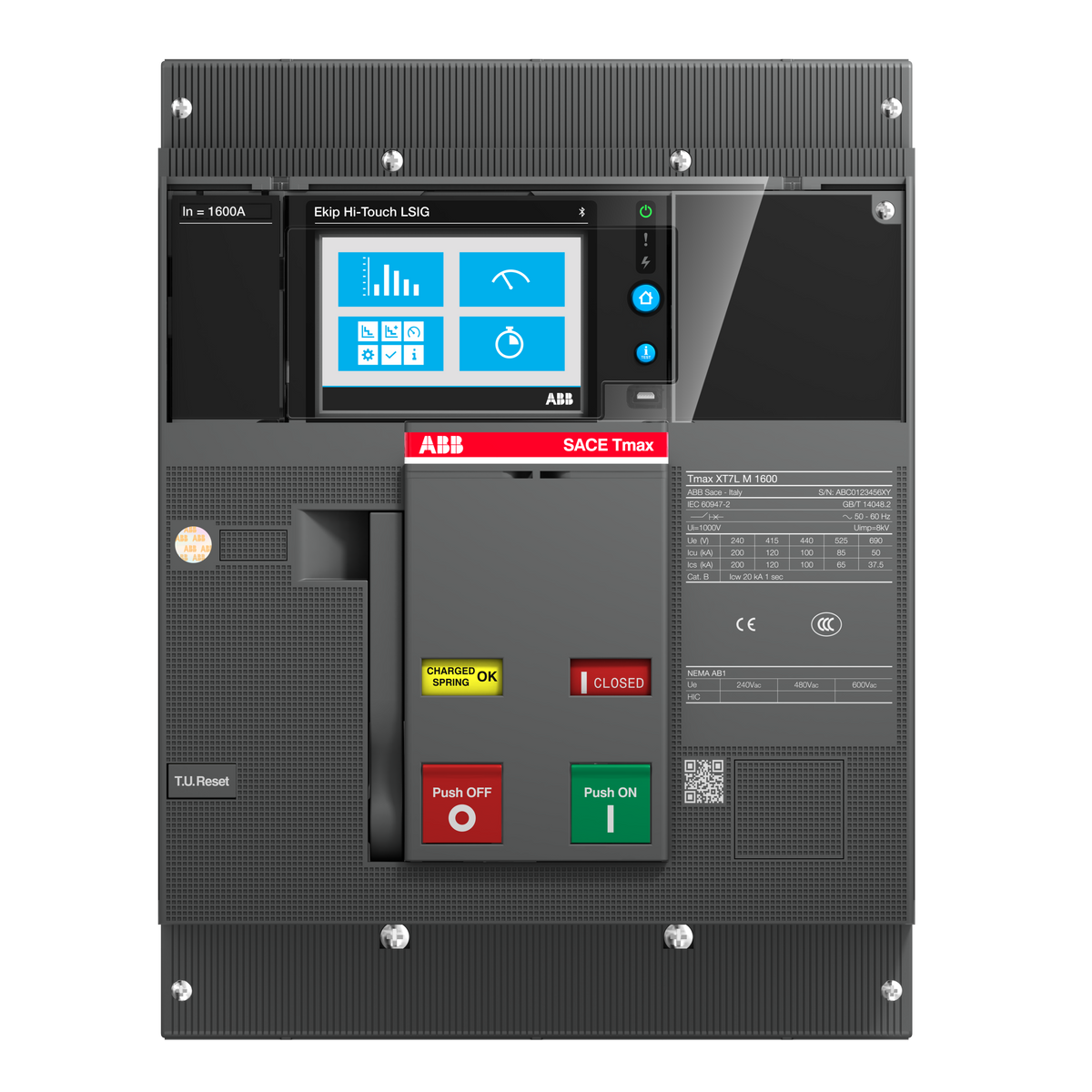

ABB 1SDA101452R1 XT7H M 1250 EkipTouch Meas.LSI 1250 3pFF 70kA Molded Case Circuit Breaker (MCCB)

% $-2,354.58
ABB 1SDA101452R1 Tmax XT7H M 1250A 3P MCCB - 70kA Icu, Ekip Touch Meas.LSI
ABB 1SDA101452R1 Tmax XT7H M 1250A 3P MCCB - 70kA Icu, Ekip Touch Meas.LSI

ABB 1SDA101452R1 XT7H M 1250 EkipTouch Meas.LSI 1250 3pFF 70kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101452R1
Catalog No: XT7H M 1250 EkipTouch Meas.LSI 1250 3pFF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 1250
Breaking Capacity: 70 kA
Breaking Type: Ekip Touch Meas.LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,354.58

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB Tmax XT7H M 1SDA101452R1 is a three-pole, fixed XT7 moulded case circuit breaker rated 1250 A, built with front terminals and a stored-energy operating mechanism. Performance level H delivers 70 kA Icu at 415 V AC, and the Ekip Touch Meas.LSI release combines long-time, short-time, instantaneous protection with integrated power metering.

Technical Specifications

SKU 1SDA101452R1
Brand ABB
Series / Frame Tmax XT7 (XT7M)
Catalog Designation XT7H M 1250 EkipTouch Meas.LSI 1250 3pFF
EAN 8056221012669
Number of Poles 3P
Rated Current (In/Iu) 1250 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 100 kA (220-240 V AC) | 70 kA (380-415 V AC) | 65 kA (440 V AC) | 50 kA (500-525 V AC) | 42 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 100 kA (220-240 V AC) | 70 kA (380-415 V AC) | 65 kA (440 V AC) | 50 kA (500-525 V AC) | 42 kA (690 V AC)
Rated Short-Time Withstand Current (Icw, 1s) 20 kA
Release / Trip Unit Ekip Touch Meas.LSI (Electronic - EL)
Short-Circuit Performance Level H
Operating Mechanism Stored-energy (spring-charged)
Terminal Connection Type Front
Power Loss per Pole 57 W
Ambient Air Temperature (Operation) -40 to 125 °C
Net Width 210 mm
Net Height 268 mm
Net Depth 178 mm
Net Weight 9.7 kg

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

At 1250 A with the stored-energy mechanism, this breaker closes from a charged spring rather than a manual lever stroke, which shortens closing time and supports remote or motorized operation over 20,000 mechanical cycles. Performance level H and the Ekip Touch Meas.LSI release deliver 70 kA Icu at 415 V AC with L/S/I protection and integrated metering. Step down to 1000 A or up to 1600 A in the same XT7M frame as load requirements change.

Technical Details

Short Description
ABB Tmax XT7H M 1SDA101452R1, 1250A 3-pole fixed MCCB, Ekip Touch Meas.LSI release, 70 kA Icu at 415V AC.
Rated Current (Ampere)
1250
Breaking Capacity (kA)
70 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7H M 1250 EkipTouch Meas.LSI 1250 3pFF
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7H M 1250 EkipTouch Meas.LSI 1250 3pFF
Tariff Code
853620
