ABB 1SDA101451R1 XT7H M 1000 EkipTouch Meas.LSI 1000 3pFF 70kA Molded Case Circuit Breaker (MCCB)

% $-2,060.46
ABB 1SDA101451R1 Tmax XT7H M 1000A 3P MCCB - 70kA Icu, Ekip Touch Meas.LSI
ABB 1SDA101451R1 Tmax XT7H M 1000A 3P MCCB - 70kA Icu, Ekip Touch Meas.LSI

ABB 1SDA101451R1 XT7H M 1000 EkipTouch Meas.LSI 1000 3pFF 70kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101451R1
Catalog No: XT7H M 1000 EkipTouch Meas.LSI 1000 3pFF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 1000
Breaking Capacity: 70 kA
Breaking Type: Ekip Touch Meas.LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,060.46

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

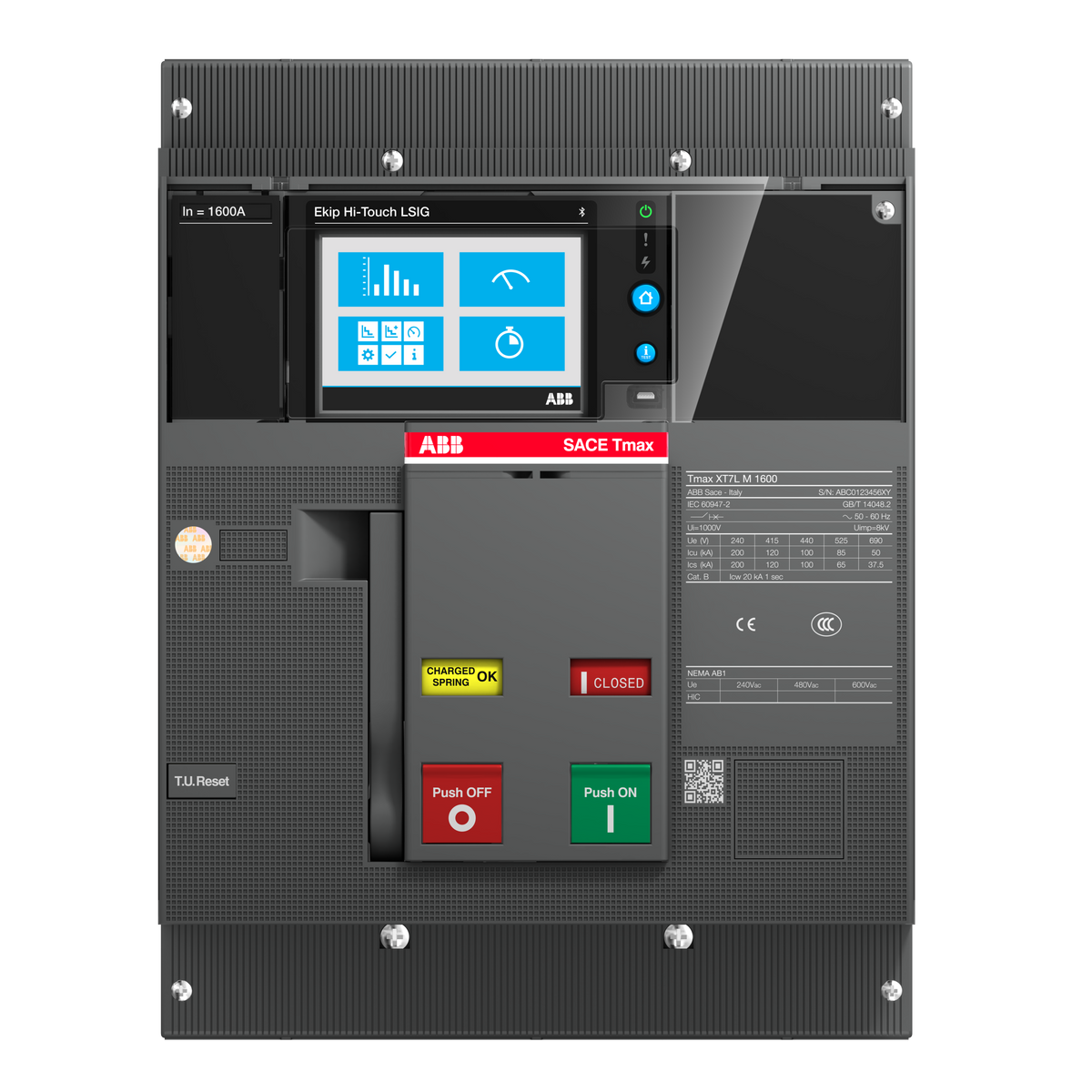

The ABB Tmax XT7H M 1SDA101451R1 is a three-pole, fixed XT7 moulded case circuit breaker rated 1000 A, built with front terminals and a stored-energy operating mechanism instead of a plain lever. Performance level H gives 70 kA Icu at 415 V AC, and the Ekip Touch Meas.LSI release adds long-time, short-time, instantaneous protection and metering.

Technical Specifications

SKU 1SDA101451R1
Brand ABB
Series / Frame Tmax XT7 (XT7M)
Catalog Designation XT7H M 1000 EkipTouch Meas.LSI 1000 3pFF
EAN 8056221012652
Number of Poles 3P
Rated Current (In/Iu) 1000 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 100 kA (220-240 V AC) | 70 kA (380-415 V AC) | 65 kA (440 V AC) | 50 kA (500-525 V AC) | 42 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 100 kA (220-240 V AC) | 70 kA (380-415 V AC) | 65 kA (440 V AC) | 50 kA (500-525 V AC) | 42 kA (690 V AC)
Rated Short-Time Withstand Current (Icw, 1s) 20 kA
Release / Trip Unit Ekip Touch Meas.LSI (Electronic - EL)
Short-Circuit Performance Level H
Operating Mechanism Stored-energy (spring-charged)
Terminal Connection Type Front
Power Loss per Pole 37 W
Ambient Air Temperature (Operation) -40 to 125 °C
Net Width 210 mm
Net Height 268 mm
Net Depth 178 mm
Net Weight 9.7 kg

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

The 'M' in the designation marks a stored-energy (spring-charged) operating mechanism in place of the plain lever, rated for 20,000 mechanical cycles versus 10,000 on the standard version, and suited to breakers that are opened and closed frequently or need motorized remote closing. Performance level H and the Ekip Touch Meas.LSI release still give 70 kA Icu at 415 V AC with L/S/I protection and integrated metering. Pick the standard lever version instead if the breaker will be operated manually and infrequently, or the 4-pole variant where the neutral must be switched.

Technical Details

Short Description
ABB Tmax XT7H M 1SDA101451R1, 1000A 3-pole fixed MCCB, Ekip Touch Meas.LSI release, 70 kA Icu at 415V AC.
Rated Current (Ampere)
1000
Breaking Capacity (kA)
70 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7H M 1000 EkipTouch Meas.LSI 1000 3pFF
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7H M 1000 EkipTouch Meas.LSI 1000 3pFF
Tariff Code
853620
