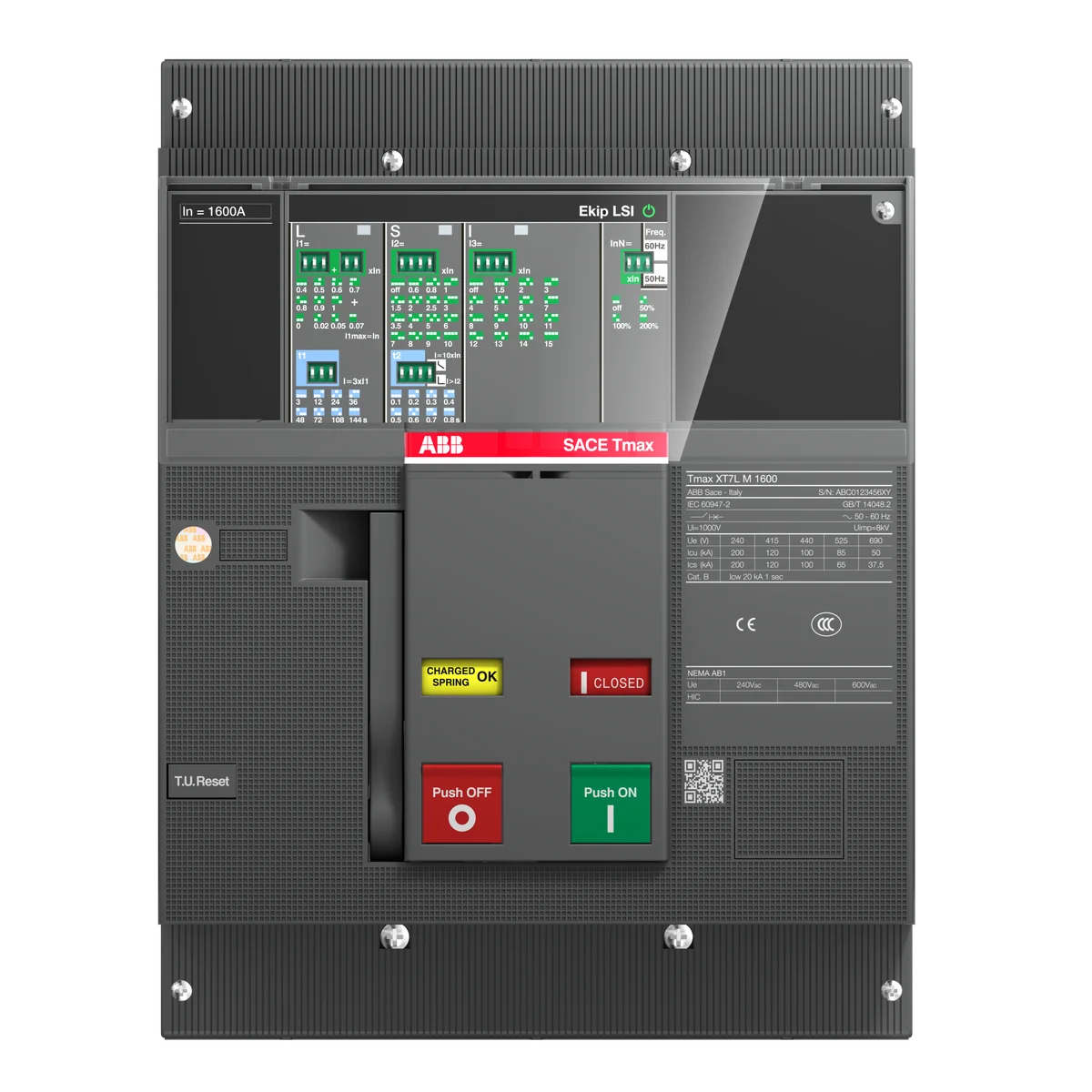

ABB 1SDA101431R1 XT7H M 1000 Ekip Dip LS/I In1000A 3p F F Moulded Case Circuit Breaker

Rated current
1000 A
Poles
3P
Breaking capacity
(400) 70 kA
EAN
8056221012492
Description

About the XT7H

The ABB 1SDA101431R1 — catalog number XT7H M 1000 Ekip Dip LS/I In1000A 3p F F — is a high-performance 1000 A, 3-pole fixed-mount power circuit-breaker from the Tmax XT7 series, designed for protection of transformers, generators, and distribution installations. Equipped with the Ekip Dip LS/I electronic trip unit, it delivers precise long-time and instantaneous protection with a breaking capacity of 70 kA at 400 V AC, making it suitable for demanding industrial and infrastructure applications.

Certifications & Standards

  • CE: Complies with applicable European Union directives for electrical equipment
  • RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU
  • Amendment 2015/863: Updated RoHS substance restrictions per EU Delegated Directive 2015/863
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Waste Electrical and Electronic Equipment Directive — responsible end-of-life disposal
  • IEC 60947-2: Low-voltage switchgear and controlgear — circuit-breakers

Applications & Use Cases

  • Transformer protection in industrial power distribution panels
  • Generator protection in standby and prime power systems
  • Main and feeder circuit protection in low-voltage switchgear assemblies
  • Installation protection in large commercial and infrastructure facilities
  • Motor feeder protection where high breaking capacity is required

Frequently Asked Questions

Q: What trip functions does the Ekip Dip LS/I unit provide?
A: The Ekip Dip electronic trip unit provides Long-time (L) and Instantaneous (I) overload and short-circuit protection, configurable via dip switches for flexible setting without external tools.

Q: What is the breaking capacity of the XT7H M 1000 Ekip Dip LS/I In1000A 3p F F?
A: The verified breaking capacity is 70 kA at 400 V AC.

Q: Is this circuit-breaker fixed or withdrawable?
A: This variant is fixed mounted (F F), meaning it is bolted directly into the switchboard or panel without a withdrawable cassette.

Q: Does this product comply with IEC standards?
A: Yes, the ABB 1SDA101431R1 is certified to IEC 60947-2, the international standard for low-voltage circuit-breakers.

Specification

Full specification

56 values · Last verified 30 Oct 2026

Material Compliance 2

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Simplified SCIP 99743aba-af23-4ce6-addf-c1b579647b88 Bulgaria, 27667ffc-cf23-419f-b975-d58884db40c3 Germany, f6d27f89-38c0-4144-bf5a-226139ce73d4 Norway, f6d06757-734d-4824-b062-a4e8a311193b Poland, de88cd75-d950-4ac3-97ca-33de5c9975bc Finland, 46682e51-3dc9-45c1-a4a9-392503f60fb9 Germany, db1668e1-6e05-4b1c-91a8-ad0c39e38765 Belgium, 0197b201-e9da-4a79-ba45-bec66dd6173e Denmark, fa0da0e1-95db-4bb6-a084-3742bce73e74 Germany, 84955230-028f-40cd-ba2f-0f5d6fb7c14b Croatia, 28b2d70c-a1d7-4e71-af61-47ce909147fd Estonia, 9500b7f1-f5e4-4eb2-85b0-54137cdb383a Czechia, 245bafb0-f8bd-4d2f-8160-a89f0deb7041 Greece, 283120c9-2f02-492a-82c0-aa314c040497 Netherlands, ee5ab709-1d24-40eb-b63a-d6bd5fe7b94d Poland, ae2a3a1b-2851-4296-a84a-7ba385e0dc44 Hungary, 9161b11b-4478-47c8-a9d3-8d1f8ace3c69 Portugal, bd5443b5-4316-4266-9eee-42f234be3569 Poland, f17c3c81-871c-4e66-add2-2cd4f9837bd7 Sweden, 834b73d5-c844-49df-ac93-10501444c163 France, 3844722d-8c1b-451d-b889-820ab6bc43af Sweden, 493ff02b-8ca2-42f9-97f2-bd19313b7a9a Germany, b659c255-9f87-4c3b-8d27-c2f892a95f14 Belgium, fc27d8ba-0ec1-494a-9dab-70c82477409a Spain, 33ffd1ed-8b90-4ae5-b2e0-8c438be3f711 Germany, 46a98aec-10d0-48a6-a9c7-192099e92c04 France, 0056035b-47cf-4b5c-bb90-47ff6128c4e9 Hungary

Environmental 1

Ambient Air Temperature Operation -40 ... 125 °C

Dimensions 4

Product Net Width 210 mm
Product Net Height 268 mm
Product Net Depth / Length 178 mm
Product Net Weight 11 kg
Show all 56 specifications ↓ Show less ↑49 more values in Identification, Additional Information, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA101431R1
Type designation XT7H
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8056221012492
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Additional Information 5

Circuit Breaker Type to be Associated Power Distribution
Product Main Type SACE Tmax XT
Product Name Moulded Case Circuit Breaker
Product Type Automatic Circuit Breaker
Version F

Technical 20

Current Type AC
Electrical Durability 3000 cycle, 60 cycles per hour
Mechanical Durability 20000 cycle, 60 cycles per hour
Number of Poles 3P
Order Multiple 1 piece
Power Loss at Rated Operating Conditions per Pole 37 W
Rated Current (In) 1000 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 50 kA, (690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (220 V AC) 100 kA, (230 V AC) 100 kA, (240 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (525 V AC) 50 kA, (690 V AC) 42 kA
Rated Uninterrupted Current (Iu) 1000 A
Release Ekip Dip LS/I
Release Type EL
Short-Circuit Performance Level H
Standards IEC60947-2
Sub-type XT7M
Terminal Connection Type Front

External Classifications and Standards 3

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 280 mm
Package Level 1 Height 350 mm
Package Level 1 Depth / Length 360 mm
Package Level 1 Gross Weight 12.5 kg
Package Level 1 EAN 8056221012492
Shipping weight 12.5 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SDA101431R1

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • RoHS
  • IEC60947-2
Quick answers

Questions about the XT7H

What is the rated current of XT7H?

The rated current of XT7H is 1000 A.

What is the HS code of XT7H for customs?

The tariff (HS) code on file for XT7H is 85362090.

What is the EAN of XT7H?

The EAN (GTIN) of XT7H is 8056221012492.

Where does XT7H ship from, and how fast?

XT7H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
