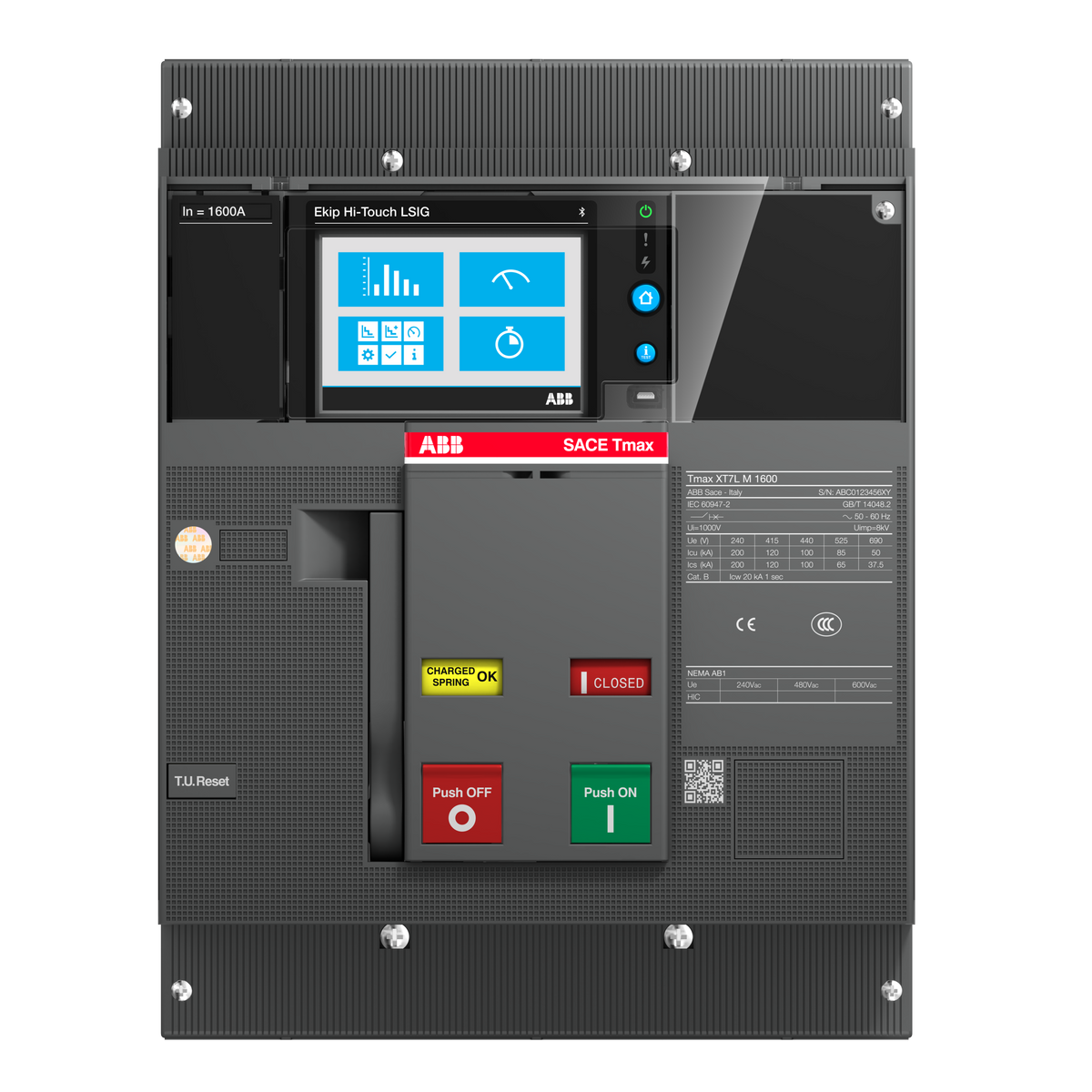

ABB 1SDA101389R1 XT7S M 1600 EkipTouch Meas.LSI 1600 3pFF 50kA Molded Case Circuit Breaker (MCCB)

% $-3,049.69
ABB 1SDA101389R1 XT7S M 1600 Ekip Touch LSI 3P MCCB - 50kA breaking capacity
ABB 1SDA101389R1 XT7S M 1600 Ekip Touch LSI 3P MCCB - 50kA breaking capacity

ABB 1SDA101389R1 XT7S M 1600 EkipTouch Meas.LSI 1600 3pFF 50kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101389R1
Catalog No: XT7S M 1600 EkipTouch Meas.LSI 1600 3pFF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 50 kA
Breaking Type: Ekip Touch Measuring LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,049.69

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

A three-pole Tmax XT7S M unit rated 1600 A, the ABB 1SDA101389R1 pairs a stored-energy plus lever operating mechanism with an Ekip Touch Measuring LSI electronic release. It carries a 50 kA breaking capacity at 400-440 V AC, a 20 kA short-time withstand (Icw), and a 690 V AC rated voltage.

Technical Specifications

SKU 1SDA101389R1
Brand ABB
Series Tmax XT
Extended Product Type XT7S M 1600 EkipTouch Meas.LSI 1600 3pFF
EAN 8056221012072
Number of Poles 3P
Rated Current (In/Iu) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Short-time Withstand Current (Icw) 20 kA
Release / Trip Unit Ekip Touch Measuring LSI
Release Type Electronic (EL)
Short-Circuit Performance Level S
Terminal Connection Front
Mounting Fixed
Power Loss per Pole 94 W
Dimensions (W x H x D) 210 x 268 x 178 mm
Net Weight 9.7 kg
Ambient Operating Temperature -40 to 125 deg C

Certifications & Standards

  • IEC 60947-2

Selection Notes

At 1600 A this is the top of the XT7S M three-pole range covered here - use it as a main or tie breaker ahead of the 800, 1000, and 1250 A siblings rather than on a feeder sized well below 1600 A. The Ekip Touch Measuring LSI release's S (short-time) stage, paired with the 20 kA/1 s Icw, supports selective coordination with downstream devices on main-incomer duty.

Technical Details

Short Description
ABB 1SDA101389R1 - Tmax XT7S M 1600A 3P MCCB, stored-energy mechanism, Ekip Touch Meas.LSI release, 50kA at 400-440V AC, 690V AC rated.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7S M 1600 EkipTouch Meas.LSI 1600 3pFF
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7S M 1600 EkipTouch Meas.LSI 1600 3pFF
Tariff Code
853620
