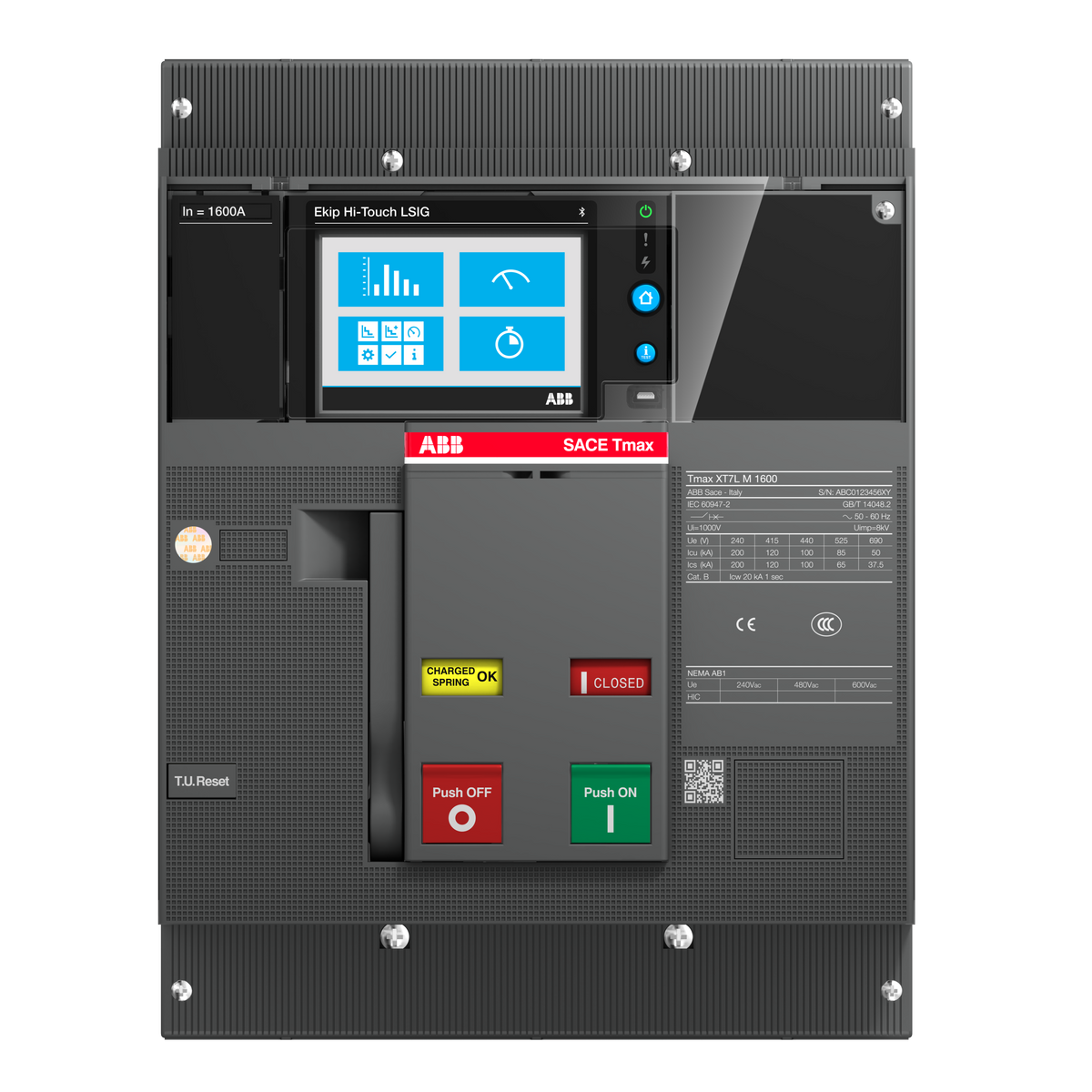

ABB 1SDA101387R1 XT7S M 1000 EkipTouch Meas.LSI 1000 3pFF 50kA Molded Case Circuit Breaker (MCCB)

% $-1,968.94
ABB 1SDA101387R1 XT7S M 1000 Ekip Touch LSI 3P MCCB - 50kA breaking capacity
ABB 1SDA101387R1 XT7S M 1000 Ekip Touch LSI 3P MCCB - 50kA breaking capacity

ABB 1SDA101387R1 XT7S M 1000 EkipTouch Meas.LSI 1000 3pFF 50kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101387R1
Catalog No: XT7S M 1000 EkipTouch Meas.LSI 1000 3pFF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 1000
Breaking Capacity: 50 kA
Breaking Type: Ekip Touch Measuring LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$1,968.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA101387R1 Tmax XT7S M 1000 is a three-pole molded case circuit breaker with a stored-energy spring plus lever operating mechanism and an Ekip Touch Measuring LSI release. It carries a 1000 A rated current, a 690 V AC operational voltage, and a 50 kA breaking capacity at 400-440 V AC.

Technical Specifications

SKU 1SDA101387R1
Brand ABB
Series Tmax XT
Extended Product Type XT7S M 1000 EkipTouch Meas.LSI 1000 3pFF
EAN 8056221012058
Number of Poles 3P
Rated Current (In/Iu) 1000 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Short-time Withstand Current (Icw) 20 kA
Release / Trip Unit Ekip Touch Measuring LSI
Release Type Electronic (EL)
Short-Circuit Performance Level S
Terminal Connection Front
Mounting Fixed
Power Loss per Pole 37 W
Dimensions (W x H x D) 210 x 268 x 178 mm
Net Weight 9.7 kg
Ambient Operating Temperature -40 to 125 deg C

Certifications & Standards

  • IEC 60947-2

Selection Notes

The stored-energy (spring-charged) mechanism, rated for 20,000 mechanical operations versus 10,000 for the plain-lever XT7S, is the reason to pick this M variant over the standard version when the application involves frequent manual or remote closing. At 1000 A it sits between the 800 A and 1250 A siblings in the same XT7S M frame - step up if the calculated feeder current leaves little margin below 1000 A.

Technical Details

Short Description
ABB 1SDA101387R1 - Tmax XT7S M 1000A 3P MCCB, stored-energy mechanism, Ekip Touch Meas.LSI release, 50kA at 400-440V AC, 690V AC rated.
Rated Current (Ampere)
1000
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7S M 1000 EkipTouch Meas.LSI 1000 3pFF
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7S M 1000 EkipTouch Meas.LSI 1000 3pFF
Tariff Code
853620
