ABB 1SDA101192R1 XT7H 1250 Ekip Touch Meas.LSI 1250 4p FF 70kA Molded Case Circuit Breaker (MCCB)

% $-2,913.20

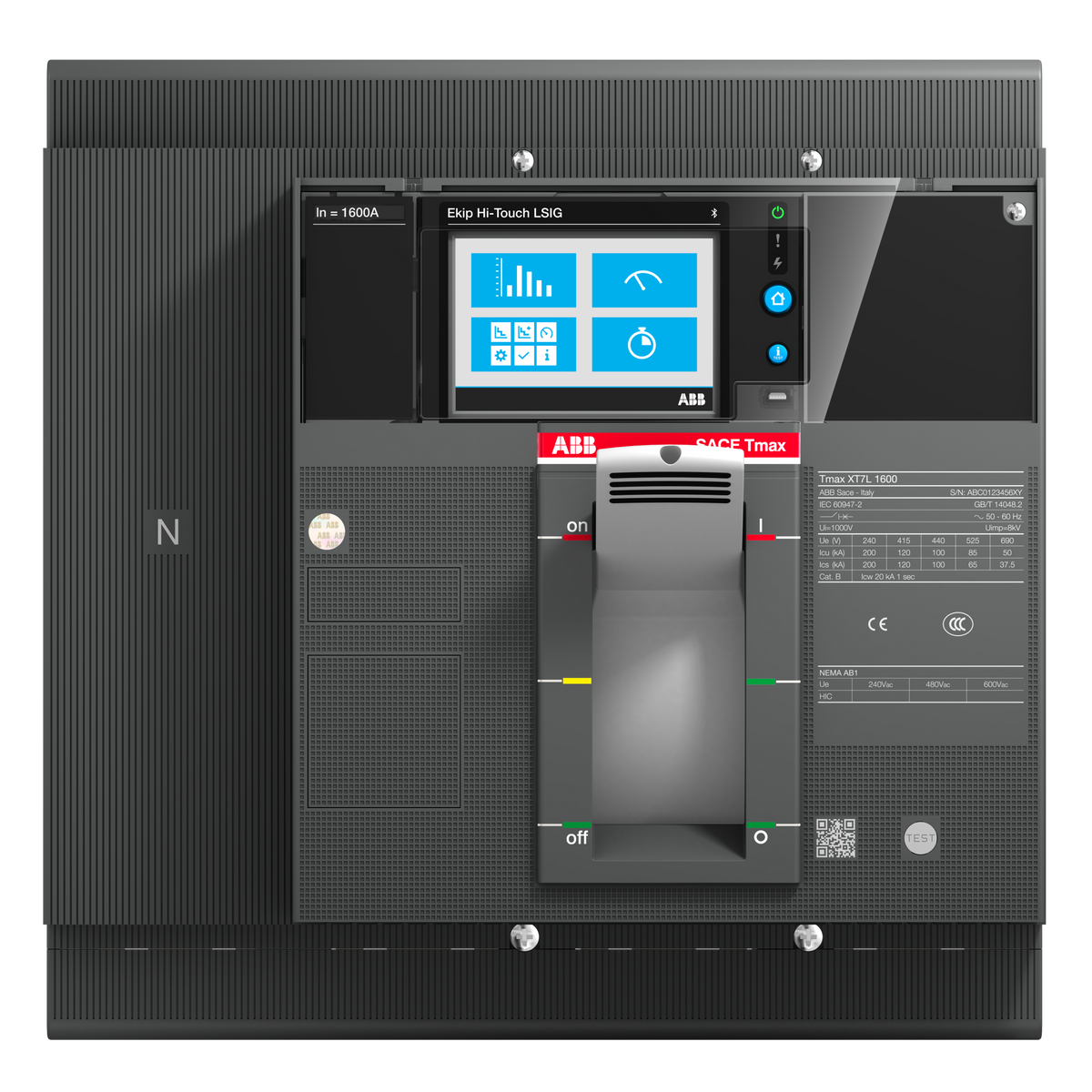

ABB 1SDA101192R1 Tmax XT7H 1250A 4P MCCB - 70kA Icu, Ekip Touch Meas.LSI
ABB 1SDA101192R1 Tmax XT7H 1250A 4P MCCB - 70kA Icu, Ekip Touch Meas.LSI

ABB 1SDA101192R1 XT7H 1250 Ekip Touch Meas.LSI 1250 4p FF 70kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA101192R1
Catalog No: XT7H 1250 Ekip Touch Meas.LSI 1250 4p FF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 1250
Breaking Capacity: 70 kA
Breaking Type: Ekip Touch Meas.LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,913.20

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's Tmax XT7H 1SDA101192R1 is a fixed, four-pole XT7 moulded case circuit breaker rated 1250 A, with front terminals and a lever operating mechanism. It reaches 70 kA Icu at 415 V AC at performance level H, and its Ekip Touch Meas.LSI release combines long-time, short-time and instantaneous protection with integrated power metering.

Technical Specifications

SKU 1SDA101192R1
Brand ABB
Series / Frame Tmax XT7 (XT7)
Catalog Designation XT7H 1250 Ekip Touch Meas.LSI 1250 4p FF
EAN 8056221014953
Number of Poles 4P
Rated Current (In/Iu) 1250 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 100 kA (220-240 V AC) | 70 kA (380-415 V AC) | 65 kA (440 V AC) | 50 kA (500-525 V AC) | 42 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 100 kA (220-240 V AC) | 70 kA (380-415 V AC) | 65 kA (440 V AC) | 50 kA (500-525 V AC) | 42 kA (690 V AC)
Rated Short-Time Withstand Current (Icw, 1s) 20 kA
Release / Trip Unit Ekip Touch Meas.LSI (Electronic - EL)
Short-Circuit Performance Level H
Operating Mechanism Lever (manual)
Terminal Connection Type Front
Power Loss per Pole 57 W
Ambient Air Temperature (Operation) -40 to 125 °C
Net Width 280 mm
Net Height 268 mm
Net Depth 166 mm
Net Weight 12.5 kg

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

Four poles let this 1250 A breaker switch the neutral as well as the three phases, which is required on some 4-wire distribution boards. Performance level H gives 70 kA Icu at 415 V AC and a 20 kA Icw, and the Ekip Touch Meas.LSI release adds L/S/I protection with integrated metering. Pick the 3-pole version where neutral switching is not needed, or step down to 1000 A if the feeder current does not require the full 1250 A rating.

Technical Details

Short Description
ABB Tmax XT7H 1SDA101192R1, 1250A 4-pole fixed MCCB, Ekip Touch Meas.LSI release, 70 kA Icu at 415V AC.
Rated Current (Ampere)
1250
Breaking Capacity (kA)
70 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7H 1250 Ekip Touch Meas.LSI 1250 4p FF
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7H 1250 Ekip Touch Meas.LSI 1250 4p FF
Tariff Code
853620
