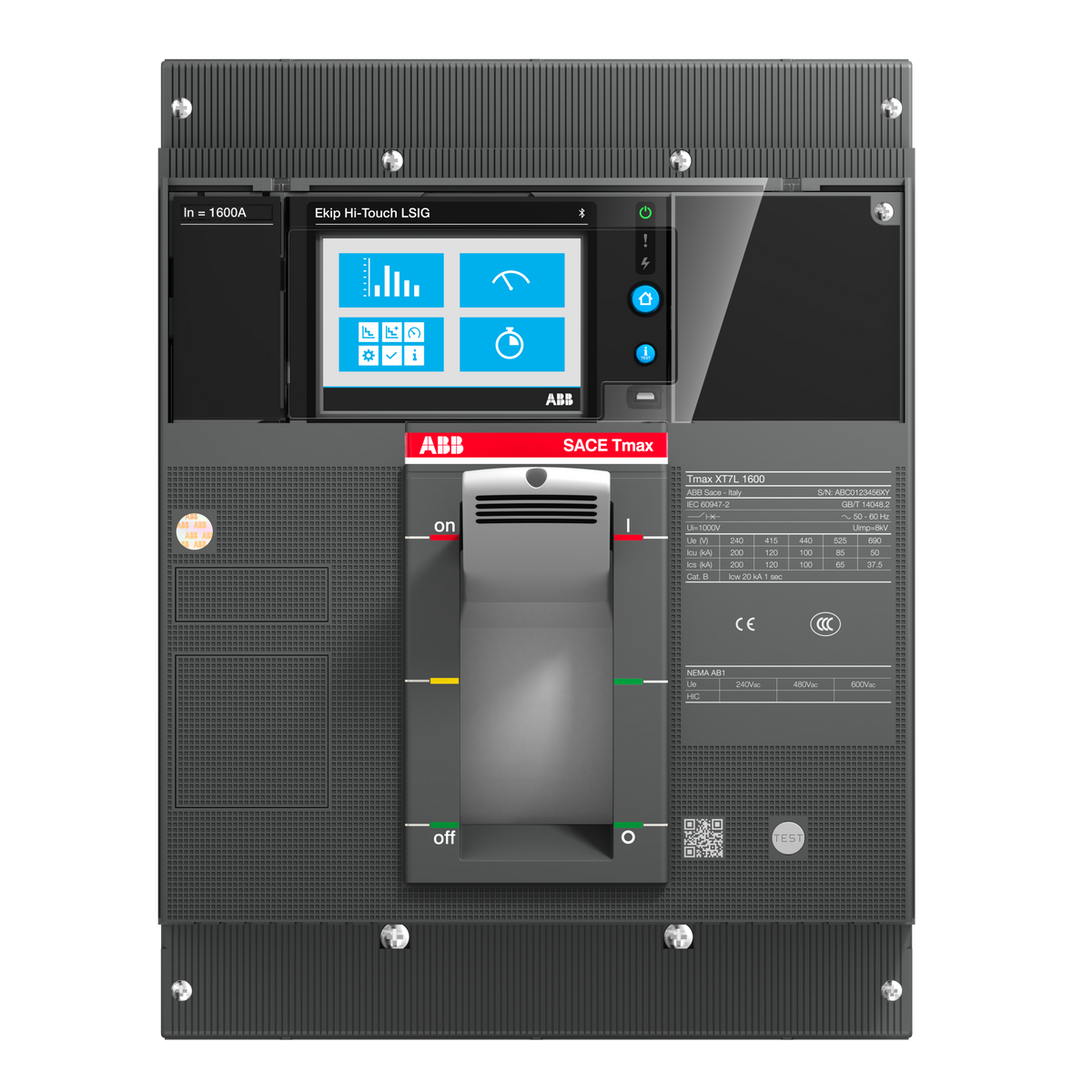

ABB 1SDA100848R1 XT7S 1250 Ekip Touch Meas.LSI 1250 3p FF 50kA Molded Case Circuit Breaker (MCCB)

% $-2,086.91
ABB 1SDA100848R1 Tmax XT7S 1250A 3P MCCB - 50kA Icu, Ekip Touch Meas.LSI
ABB 1SDA100848R1 Tmax XT7S 1250A 3P MCCB - 50kA Icu, Ekip Touch Meas.LSI

ABB 1SDA100848R1 XT7S 1250 Ekip Touch Meas.LSI 1250 3p FF 50kA Molded Case Circuit Breaker (MCCB)

Brand: ABB
Reference No: 1SDA100848R1
Catalog No: XT7S 1250 Ekip Touch Meas.LSI 1250 3p FF
Series: Tmax XT
Tariff Code (HS): 853620
Rated Current: 1250
Breaking Capacity: 50 kA
Breaking Type: Ekip Touch Meas.LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,086.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's Tmax XT7S 1SDA100848R1 is a three-pole, fixed XT7 moulded case circuit breaker rated 1250 A, with front terminals and a lever operating mechanism. It carries 50 kA Icu at 415 V AC under performance level S, and the Ekip Touch Meas.LSI release handles long-time, short-time and instantaneous protection plus integrated metering.

Technical Specifications

SKU 1SDA100848R1
Brand ABB
Series / Frame Tmax XT7 (XT7)
Catalog Designation XT7S 1250 Ekip Touch Meas.LSI 1250 3p FF
EAN 8056221009027
Number of Poles 3P
Rated Current (In/Iu) 1250 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Service Breaking Capacity (Ics) 85 kA (220-240 V AC) | 50 kA (380-440 V AC) | 45 kA (500-525 V AC) | 30 kA (690 V AC)
Rated Short-Time Withstand Current (Icw, 1s) 20 kA
Release / Trip Unit Ekip Touch Meas.LSI (Electronic - EL)
Short-Circuit Performance Level S
Operating Mechanism Lever (manual)
Terminal Connection Type Front
Power Loss per Pole 57 W
Ambient Air Temperature (Operation) -40 to 125 °C
Net Width 210 mm
Net Height 268 mm
Net Depth 166 mm
Net Weight 9.7 kg

Certifications & Standards

  • IEC/EN 60947-2

Selection Notes

At 1250 A, performance level S carries 50 kA Icu at 415 V AC against 70 kA on the H class, a lower-cost option where the installation's prospective fault current stays within that limit. The Ekip Touch Meas.LSI release handles L/S/I protection with integrated metering, and the 20 kA Icw still supports selective coordination with downstream breakers. Move to the H performance class if a higher short-circuit rating is required.

Technical Details

Short Description
ABB Tmax XT7S 1SDA100848R1, 1250A 3-pole fixed MCCB, Ekip Touch Meas.LSI release, 50 kA Icu at 415V AC.
Rated Current (Ampere)
1250
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Fixed
Catalog No
XT7S 1250 Ekip Touch Meas.LSI 1250 3p FF
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
XT7S 1250 Ekip Touch Meas.LSI 1250 3p FF
Tariff Code
853620
