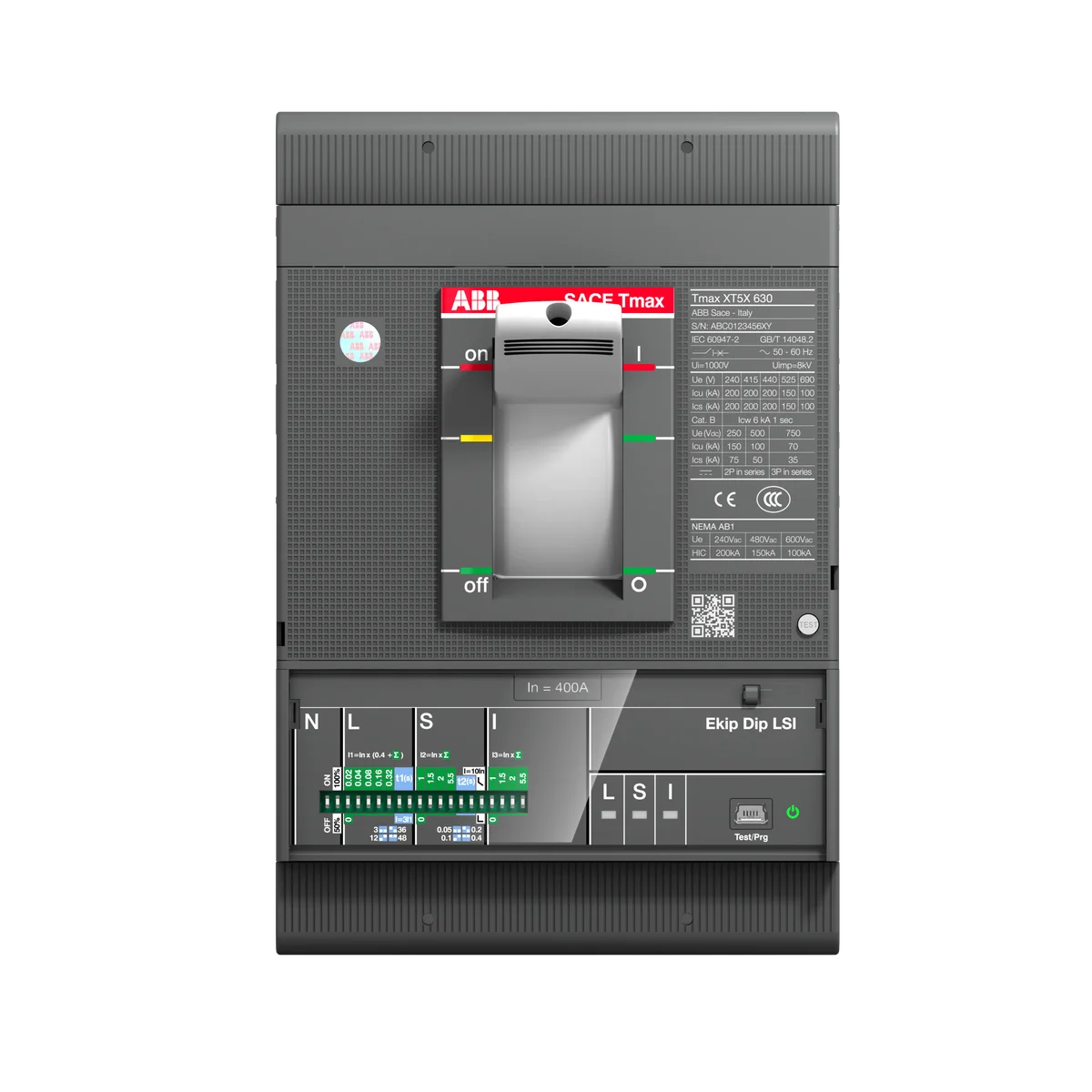

ABB 1SDA100424R1 XT5S 400 Ekip Dip LS/I In=400 3p F F Moulded Case Circuit Breaker 400A 3P Fixed 85kA

The ABB 1SDA100424R1 XT5S 400 Ekip Dip LS/I In=400 3p F F is a 400A, 3-pole fixed-mount power circuit-breaker from the Tmax XT5 series, engineered for trafo, generator, and installation protection in demanding industrial environments. Delivering a breaking capacity of 85 kA at 220 V AC, the XT5S 400 Ekip Dip LS/I In=400 3p F F combines compact dimensions with robust overcurrent and short-circuit protection via the Ekip Dip LS/I release unit, making it a reliable choice for critical power distribution panels.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH chemical safety regulation
• EU Directive 2011/65/EU: RoHS recast directive compliance
• Amendment 2015/863: Updated RoHS substance restriction compliance
• IEC 60947-2: Low-voltage switchgear and controlgear — circuit-breakers standard
• IEC 61850: Communication networks and systems for power utility automation
• CE: Conformité Européenne marking — meets EU safety, health, and environmental requirements
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Transformer and generator feeder protection in industrial power distribution systems
• Main and sub-distribution panel protection in manufacturing facilities
• Installation protection in data centres, utilities, and infrastructure projects
• Motor feeder circuits requiring high short-circuit breaking capacity
• Control panel integration where compact 3-pole fixed circuit-breaker design is required
