ABB 1SDA100397R1 XT5N 630 Ekip Dip LS/I In=630 4p F F 630A 4-Pole Fixed Moulded Case Circuit Breaker

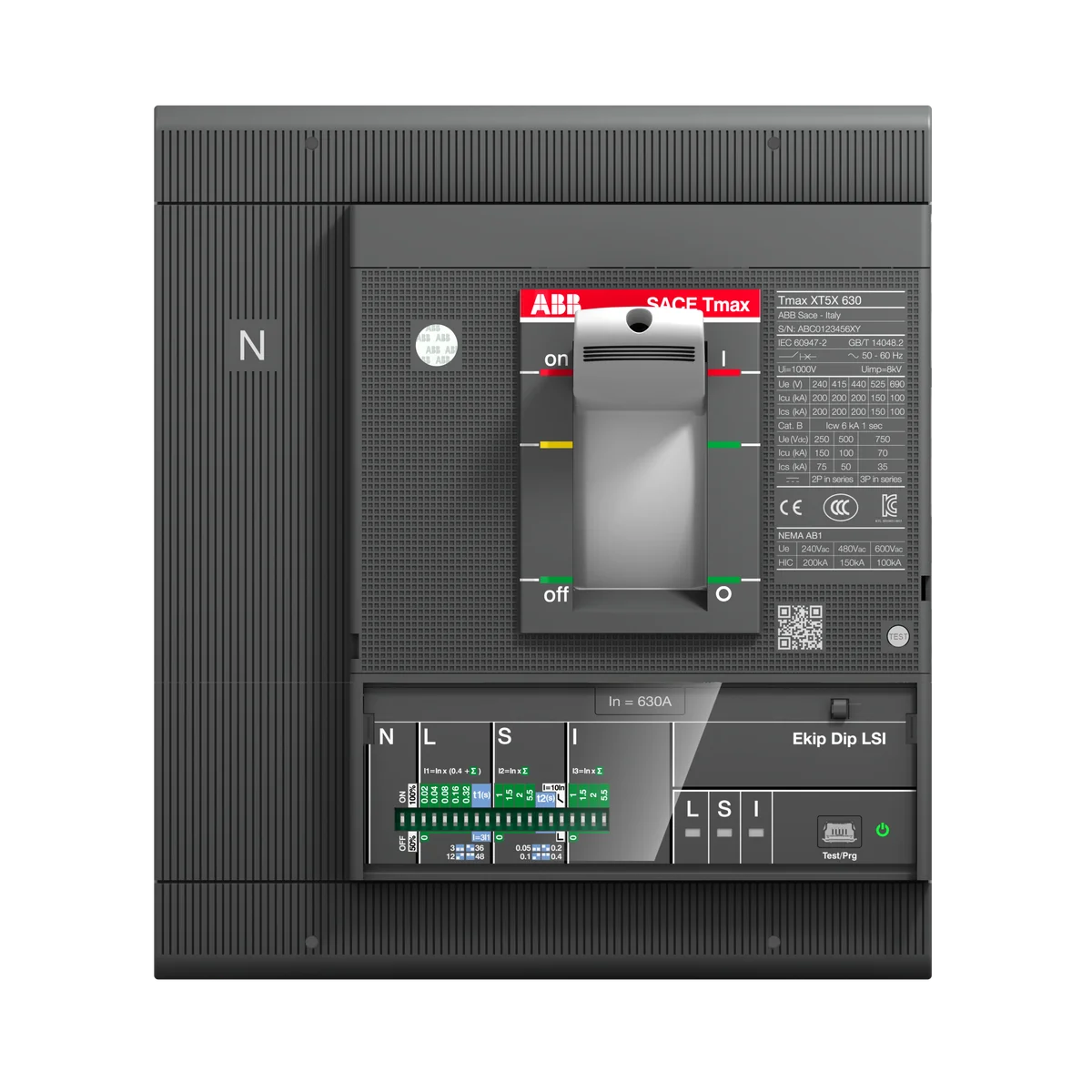

The ABB 1SDA100397R1 — catalog number XT5N 630 Ekip Dip LS/I In=630 4p F F — is a 630A, 4-pole fixed-mount power circuit-breaker from the Tmax XT5 series, engineered for transformer, generator, and installation protection in demanding industrial environments. Featuring the Ekip Dip LS/I electronic trip unit and a breaking capacity of 70 kA at 220 V AC, it delivers precision overcurrent protection with robust performance in compact panel layouts.

Technical Specifications

Certifications & Standards

• IEC 60947-2: International standard for low-voltage switchgear — circuit-breakers; confirms design and performance compliance
• IEC 61850: Communication standard for intelligent electronic devices in electrical substations; enables smart grid integration
• CE: European Conformity mark confirming compliance with applicable EU directives for electrical equipment
• RoHS: Restriction of Hazardous Substances — product is free from restricted hazardous materials per EU Directive 2011/65/EU
• REACH: Compliance with EU REACH regulation (EC 1907/2006) on chemical substance safety
• WEEE: Waste Electrical and Electronic Equipment Directive compliance — product is registered for responsible end-of-life disposal

Applications & Use Cases

• Transformer feeder and generator protection in industrial power distribution panels
• Main and sub-main installation protection in commercial and industrial buildings
• Motor feeder protection in automation and process control systems
• Control panel integration requiring compact 4-pole fixed circuit-breaker solutions
• Applications demanding IEC 61850 communication compatibility for smart grid or substation automation
