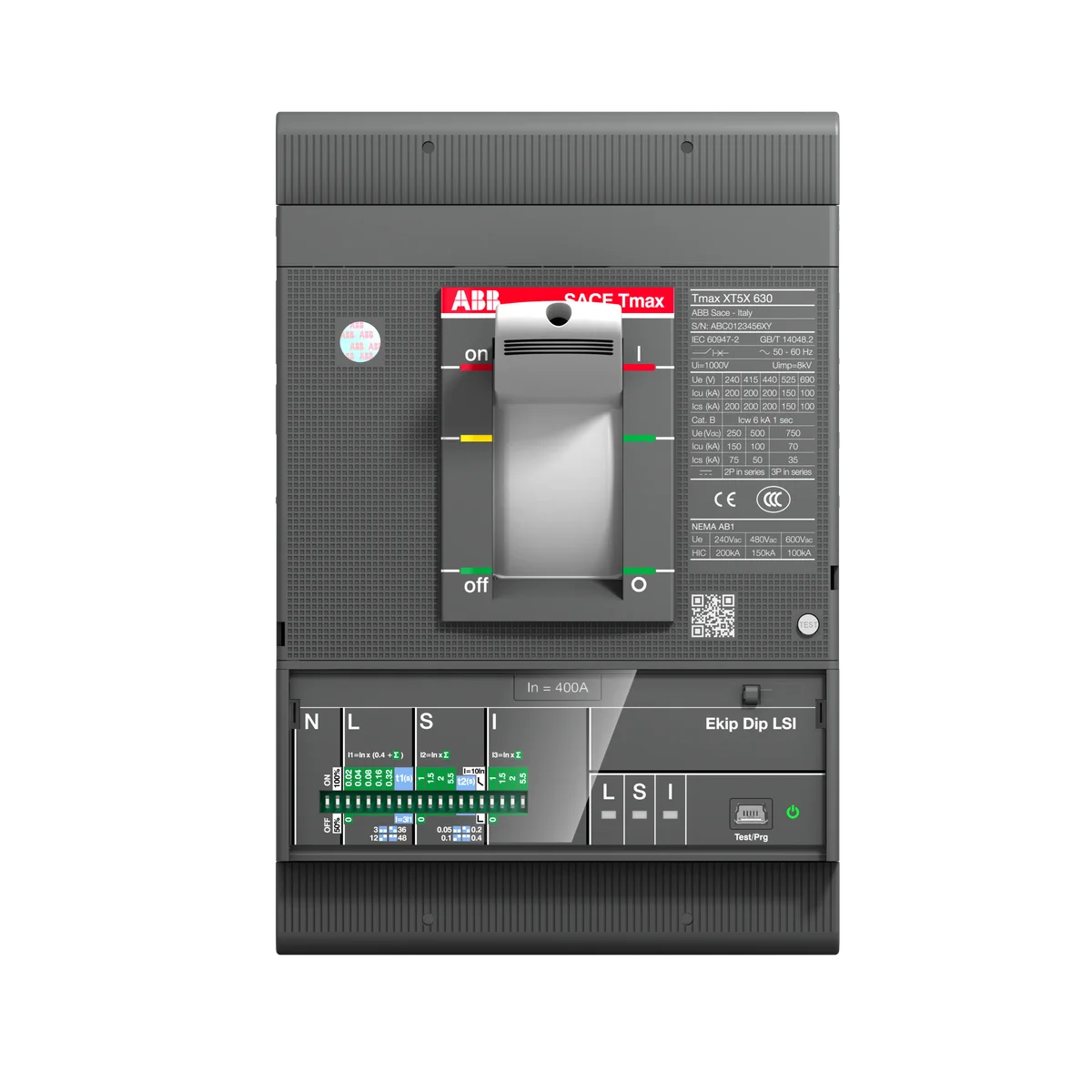

ABB 1SDA100354R1 XT5N 400 Ekip Dip LS/I In=400 3p F F 400A 3-Pole Fixed Moulded Case Circuit Breaker

The ABB 1SDA100354R1 XT5N 400 Ekip Dip LS/I In=400 3p F F is a 400A, 3-pole fixed-mounted power circuit-breaker engineered for transformer, generator, and installation protection in demanding industrial environments. Part of ABB's Tmax XT5 series, this breaker delivers a breaking capacity of 70 kA at 220 V AC, combining the Ekip Dip LS/I electronic trip unit with robust construction to ensure reliable overcurrent and short-circuit protection across critical power distribution applications.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with Restriction of Hazardous Substances requirements
• REACH: Compliant with EU REACH chemical safety regulation
• EU Directive 2011/65/EU: Meets European Union RoHS Directive requirements
• Amendment 2015/863: Compliant with the updated RoHS substance restriction amendment
• IEC 60947-2: Certified to the international standard for low-voltage circuit-breakers
• IEC 60947-2: Dual-verified compliance with IEC low-voltage switchgear standard
• IEC 61850: Supports the international standard for substation communication and automation
• CE: Carries CE marking, confirming conformity with applicable EU directives
• WEEE: Registered under the Waste Electrical and Electronic Equipment directive for proper end-of-life disposal

Applications & Use Cases

• Transformer and generator feeder protection in industrial power distribution panels
• Main and sub-main circuit protection in commercial and industrial installations
• Protection of large motor feeders and critical machinery in automation control panels
• Integration into IEC 61850-compliant digital substation architectures
• Switchboard and MCC (Motor Control Centre) applications requiring high breaking capacity

Why Choose the ABB XT5N 400 Ekip Dip LS/I In=400 3p F F?

The XT5N 400 Ekip Dip LS/I In=400 3p F F stands out for its high short-circuit breaking capacity of 70 kA, making it suitable for installations close to transformer secondaries or generator outputs where fault currents can be severe. The Ekip Dip electronic trip unit provides precise LS/I (Long-time and Instantaneous) protection functions, allowing engineers to fine-tune tripping parameters directly on the device without additional programming hardware. Its compact fixed-frame design optimises panel space while maintaining full 400 A rated current capability, and IEC 61850 support future-proofs the installation for smart grid and digital substation integration.
