ABB 1SDA074173R1 EKIP SUPPLY 24-48VDC E1.2..E6.2-Tmax XT Power Supply Module Air Circuit Breaker Accessory

% $-114.00

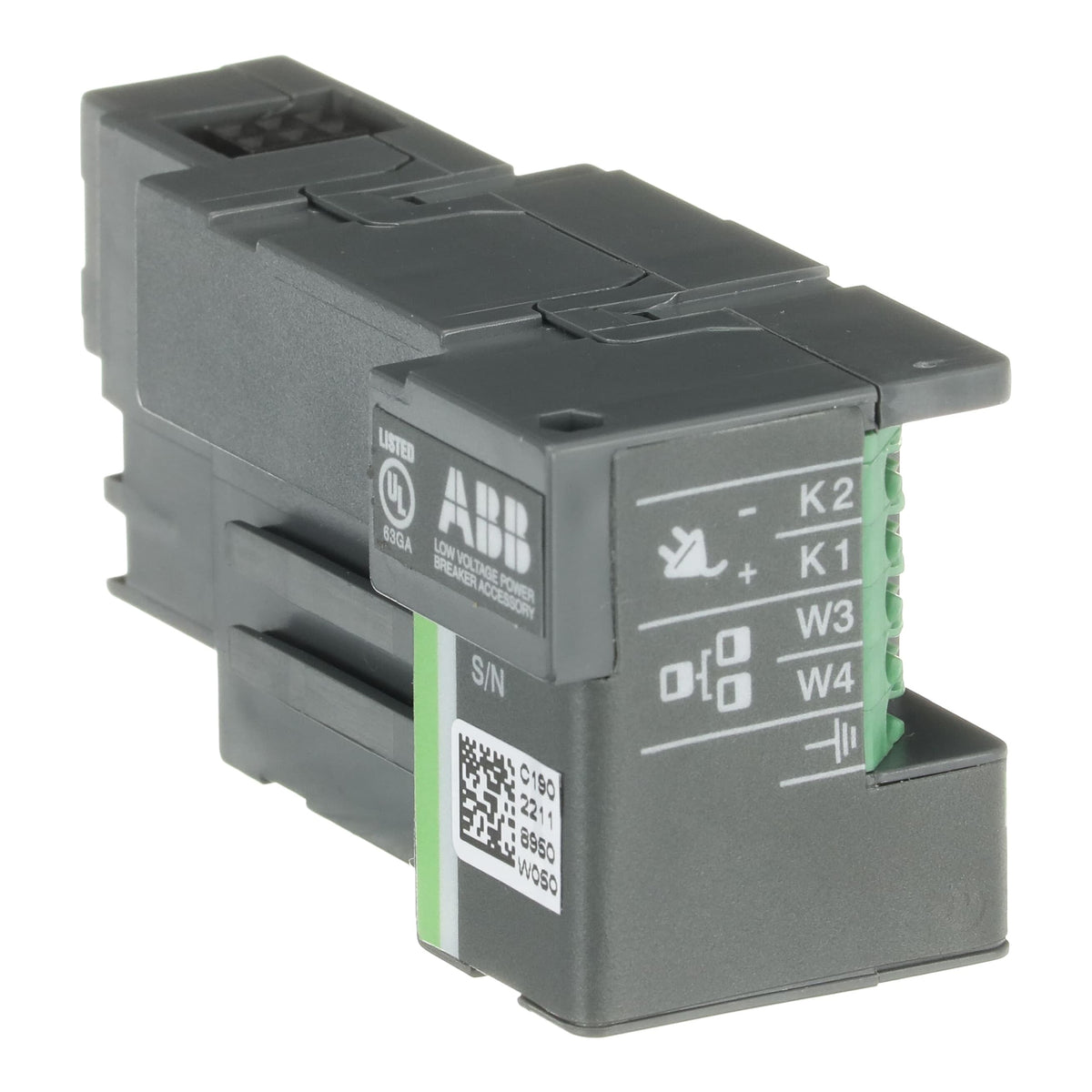

ABB 1SDA074173R1 EKIP Supply 24-48VDC power supply module
ABB 1SDA074173R1 EKIP Supply 24-48VDC power supply module

ABB 1SDA074173R1 EKIP SUPPLY 24-48VDC E1.2..E6.2-Tmax XT Power Supply Module Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA074173R1
Catalog No: EKIP SUPPLY 24-48VDC E1.2..E6.2-Tmax XT
Series: Accessories for Emax 2
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$114.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA074173R1 EKIP Supply is a 24-48 V DC power supply module for the SACE Emax 2 E1.2 to E6.2 and Tmax XT circuit breaker range, powering the Ekip electronic release and its accessories from an external low-voltage DC source. It is required where the breaker's trip unit and communication modules need continuous auxiliary power independent of the main circuit.

Technical Specifications

SKU 1SDA074173R1
Brand ABB
Series Accessories for Emax 2
Catalog Designation EKIP SUPPLY 24-48VDC E1.2..E6.2-Tmax XT
EAN 8015644781064
Function Power supply module for Ekip electronic release
Supply Voltage 24-48 V DC
Compatibility E1.2-E6.2, XT7, XT7M, XT2, XT4, XT5
Configuration Type Loose or configurable
Order Multiple 1 piece
Dimensions (W x H x D) 120 x 155 x 190 mm
Net Weight 0.22 kg

Selection Notes

EKIP Supply powers the Ekip trip unit and its communication/signalling modules from an external 24-48 V DC source, keeping the electronic release and accessories live even when the breaker itself is open or the main circuit is de-energized. It covers the full E1.2 to E6.2 Emax 2 frame range plus Tmax XT, so one part number fits across breaker sizes. Specify it together with EKIP COM or EKIP 10K whenever the installation cannot rely on the breaker's own internal power for continuous monitoring.

Technical Details

Short Description
ABB EKIP Supply 24-48 V DC power supply module for Emax 2 and Tmax XT breaker electronic releases.
Mounting Type
External module
Catalog No
EKIP SUPPLY 24-48VDC E1.2..E6.2-Tmax XT
Delivery Date (Days)
30 days
Model Number
EKIP SUPPLY 24-48VDC E1.2..E6.2-Tmax XT
Tariff Code
853890
