ABB 1SDA073990R1 KIT HR/VR E1.2/3-XT7-XT7M F 4PCS 4P Air Circuit Breaker Accessory

% $-645.38

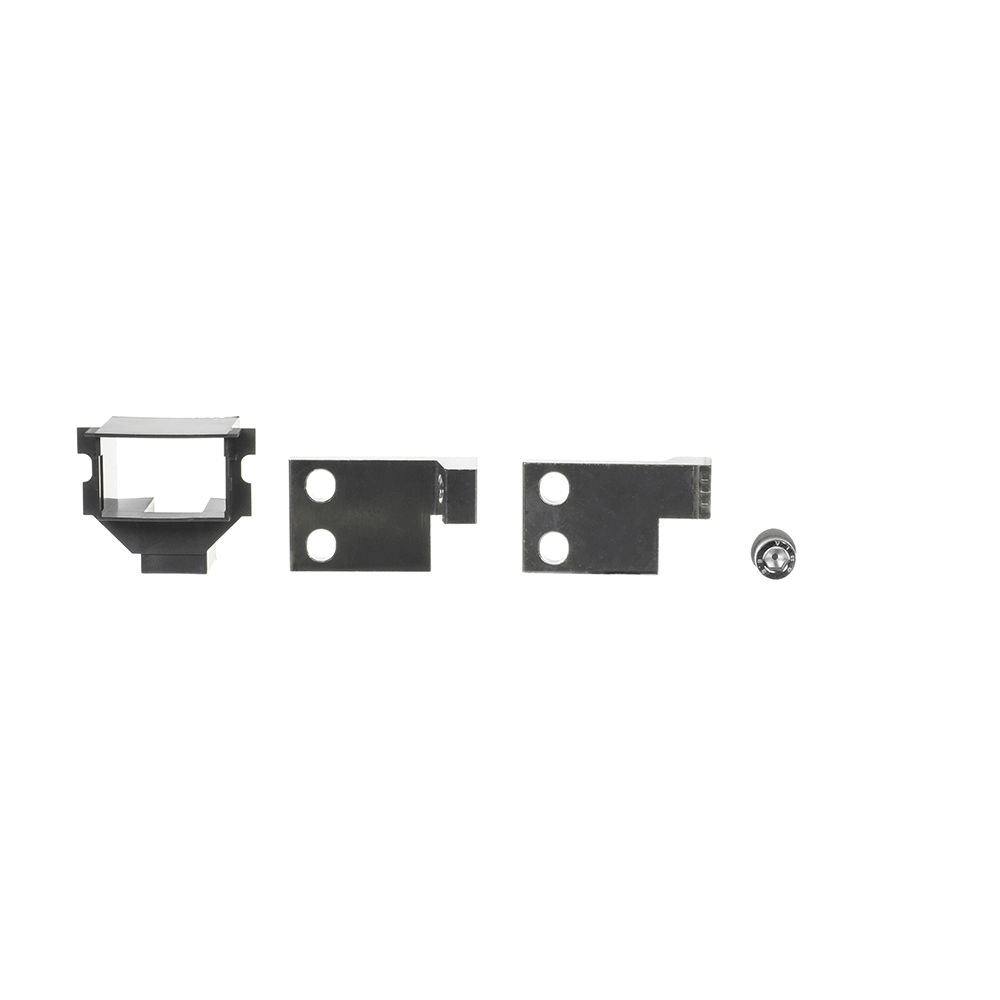

ABB 1SDA073990R1 KIT HR/VR rear terminals 4 pieces 4-pole
ABB 1SDA073990R1 KIT HR/VR rear terminals 4 pieces 4-pole

ABB 1SDA073990R1 KIT HR/VR E1.2/3-XT7-XT7M F 4PCS 4P Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA073990R1
Catalog No: KIT HR/VR E1.2/3-XT7-XT7M F 4PCS
Series: Accessories for Emax 2
Tariff Code (HS): 853890
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$645.38

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA073990R1 KIT HR/VR is a set of 4 rear terminals, configurable horizontal or vertical, for fixed-mounting SACE Emax 2 E1.2/3 and Tmax XT7/XT7M 4-pole air circuit breakers, used when the breaker connects to busbar entering from behind rather than the front. One kit covers all four poles of a 4-pole fixed breaker.

Technical Specifications

SKU 1SDA073990R1
Brand ABB
Series Accessories for Emax 2
Catalog Designation KIT HR/VR E1.2/3-XT7-XT7M F 4PCS
EAN 8015644779238
Function Rear terminal kit, horizontal or vertical, 4 pieces
Compatibility Fixed E1.2/3 Emax 2, XT7, XT7M
Number of Poles 4P
Configuration Type Loose or configurable
Order Multiple 1 piece
Dimensions (W x H x D) 160 x 63 x 268 mm
Net Weight 1 kg

Selection Notes

HR (horizontal rear) and VR (vertical rear) describe the busbar orientation this terminal kit accepts, letting one part number serve either rear-entry layout depending on how it is fitted. Choose it over the front-entry EF or ES kits whenever the switchboard busbar runs behind the breaker rather than in front of it. The kit supplies all 4 poles of a 4-pole fixed breaker; a 3-pole breaker needs the corresponding 3-piece version.

Technical Details

Short Description
ABB KIT HR/VR rear horizontal/vertical terminals, 4 pieces, for fixed Emax 2 E1.2/3 and Tmax XT7/XT7M 4-pole breakers.
Mounting Type
Fixed, rear terminal kit
Catalog No
KIT HR/VR E1.2/3-XT7-XT7M F 4PCS
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
KIT HR/VR E1.2/3-XT7-XT7M F 4PCS
Tariff Code
853890
