ABB 1SDA073979R1 Kit ES E1.2/3-XT7-XT7M F 3pcs 3P Air Circuit Breaker Accessory

% $-832.65

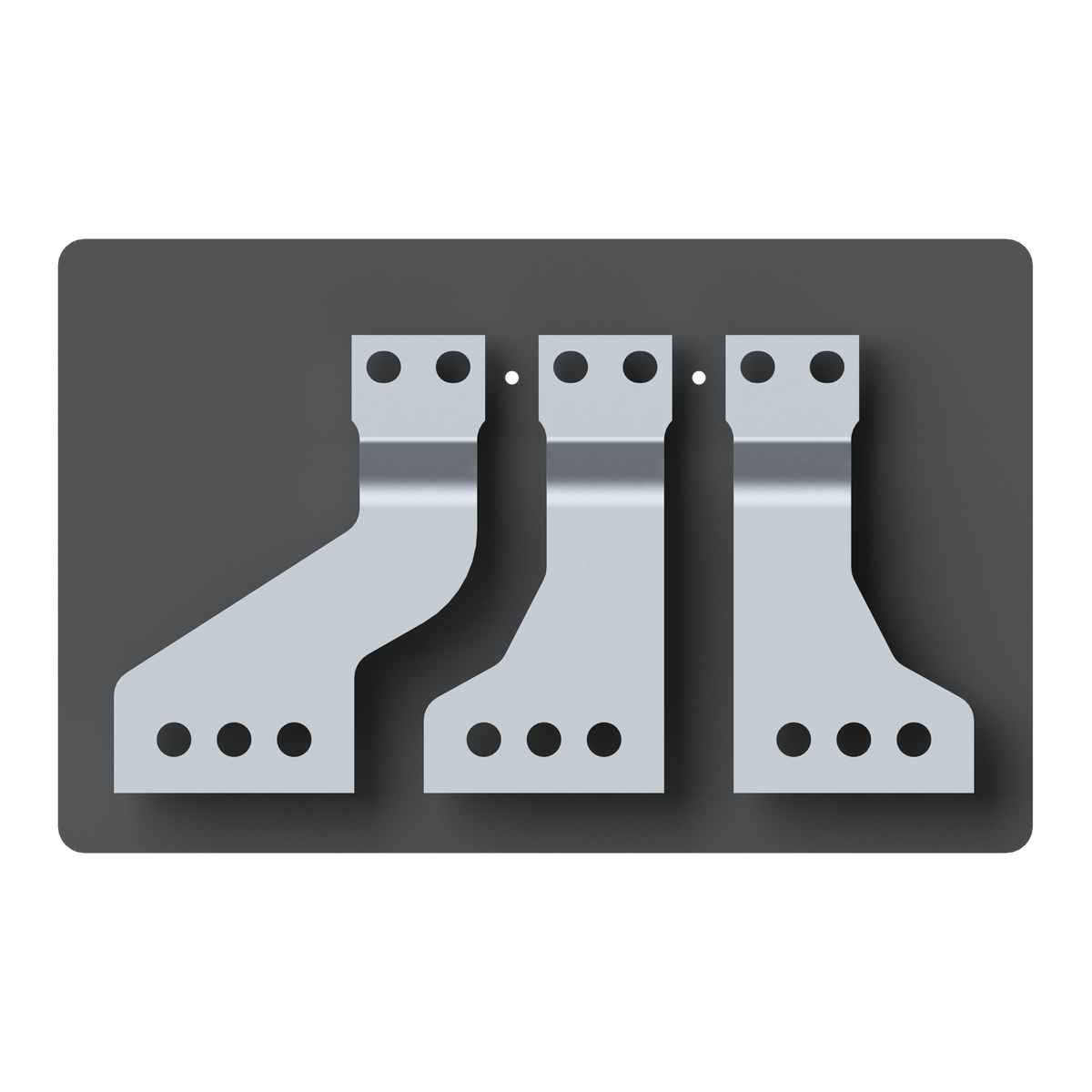

ABB 1SDA073979R1 KIT ES extended front terminals distance piece 3-pole
ABB 1SDA073979R1 KIT ES extended front terminals distance piece 3-pole

ABB 1SDA073979R1 Kit ES E1.2/3-XT7-XT7M F 3pcs 3P Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA073979R1
Catalog No: Kit ES E1.2/3-XT7-XT7M F 3pcs
Series: Accessories for Emax 2
Tariff Code (HS): 853890
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$832.65

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA073979R1 KIT ES is a set of 3 extended front terminals with an upper distance piece for fixed-mounting SACE Emax 2 E1.2/3 and Tmax XT7/XT7M 3-pole air circuit breakers, raising the connection point further forward and upward than the standard EF kit. One kit covers all three poles of a 3-pole fixed breaker.

Technical Specifications

SKU 1SDA073979R1
Brand ABB
Series Accessories for Emax 2
Catalog Designation Kit ES E1.2/3-XT7-XT7M F 3pcs
EAN 8015644779122
Function Extended front terminal kit with upper distance piece, 3 pieces
Compatibility Fixed E1.2/3 Emax 2, XT7, XT7M
Number of Poles 3P
Configuration Type Loose or configurable
Order Multiple 1 piece
Dimensions (W x H x D) 370 x 85 x 520 mm
Net Weight 4.7 kg

Selection Notes

ES (extended, distance upper) raises and extends the front terminal further than the standard EF kit, giving more clearance where the incoming cable or busbar needs to clear equipment mounted close above the breaker. Its larger footprint and 4.7 kg weight reflect the added distance piece compared with the lighter EF kit for the same frame group. The kit supplies all 3 poles of a 3-pole fixed breaker; a 4-pole breaker requires the corresponding 4-piece version.

Technical Details

Short Description
ABB KIT ES extended front terminals with distance piece, 3 pieces, for fixed Emax 2 E1.2/3 and Tmax XT7/XT7M breakers.
Mounting Type
Fixed, front terminal kit
Catalog No
Kit ES E1.2/3-XT7-XT7M F 3pcs
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
Kit ES E1.2/3-XT7-XT7M F 3pcs
Tariff Code
853890
