ABB 1SDA073968R1 KIT EF E1.2/3-XT7-XT7M F 4PCS 4P Air Circuit Breaker Accessory

% $-512.34

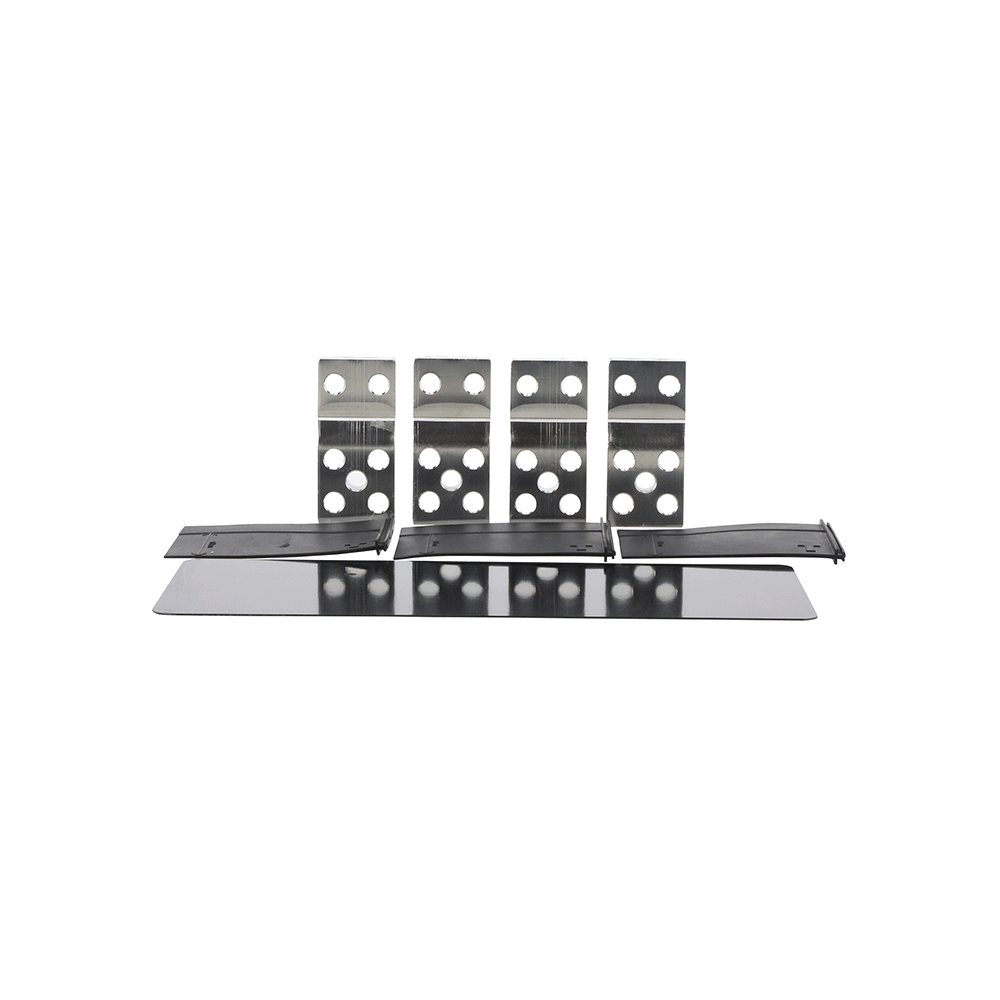

ABB 1SDA073968R1 KIT EF extended front terminals 4 pieces 4-pole
ABB 1SDA073968R1 KIT EF extended front terminals 4 pieces 4-pole

ABB 1SDA073968R1 KIT EF E1.2/3-XT7-XT7M F 4PCS 4P Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA073968R1
Catalog No: KIT EF E1.2/3-XT7-XT7M F 4PCS
Series: Accessories for Emax 2
Tariff Code (HS): 853890
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$512.34

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA073968R1 KIT EF is a set of 4 extended front terminals for fixed-mounting SACE Emax 2 E1.2/3 and Tmax XT7/XT7M 4-pole air circuit breakers, lengthening the standard front terminal to simplify busbar or cable connection on deeper switchboard layouts. One kit covers all four poles of a 4-pole fixed breaker, including neutral.

Technical Specifications

SKU 1SDA073968R1
Brand ABB
Series Accessories for Emax 2
Catalog Designation KIT EF E1.2/3-XT7-XT7M F 4PCS
EAN 8015644779016
Function Extended front terminal kit, 4 pieces
Compatibility Fixed E1.2/3 Emax 2, XT7, XT7M
Number of Poles 4P
Configuration Type Loose or configurable
Order Multiple 1 piece
Dimensions (W x H x D) 250 x 63 x 340 mm
Net Weight 0.6 kg

Selection Notes

The extended front (EF) terminal moves the connection point further out from the breaker body, giving extra clearance for cable lugs or busbar on panels where the standard front terminal sits too close to the enclosure wall. This kit is sized for the fixed-mounting E1.2/3-XT7-XT7M frame group and supplies all 4 poles of a 4-pole breaker, including neutral, in one order. For a 3-pole breaker, use the matching 3-piece KIT EF instead of removing a terminal from this kit.

Technical Details

Short Description
ABB KIT EF extended front terminals, 4 pieces, for fixed Emax 2 E1.2/3 and Tmax XT7/XT7M 4-pole breakers.
Mounting Type
Fixed, front terminal kit
Catalog No
KIT EF E1.2/3-XT7-XT7M F 4PCS
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
KIT EF E1.2/3-XT7-XT7M F 4PCS
Tariff Code
853890
