ABB 1SDA073922R1 E6.2 W FP Iu=6300 or X version 4p/f HRHR Air Circuit Breaker Accessory

% $-4,687.47

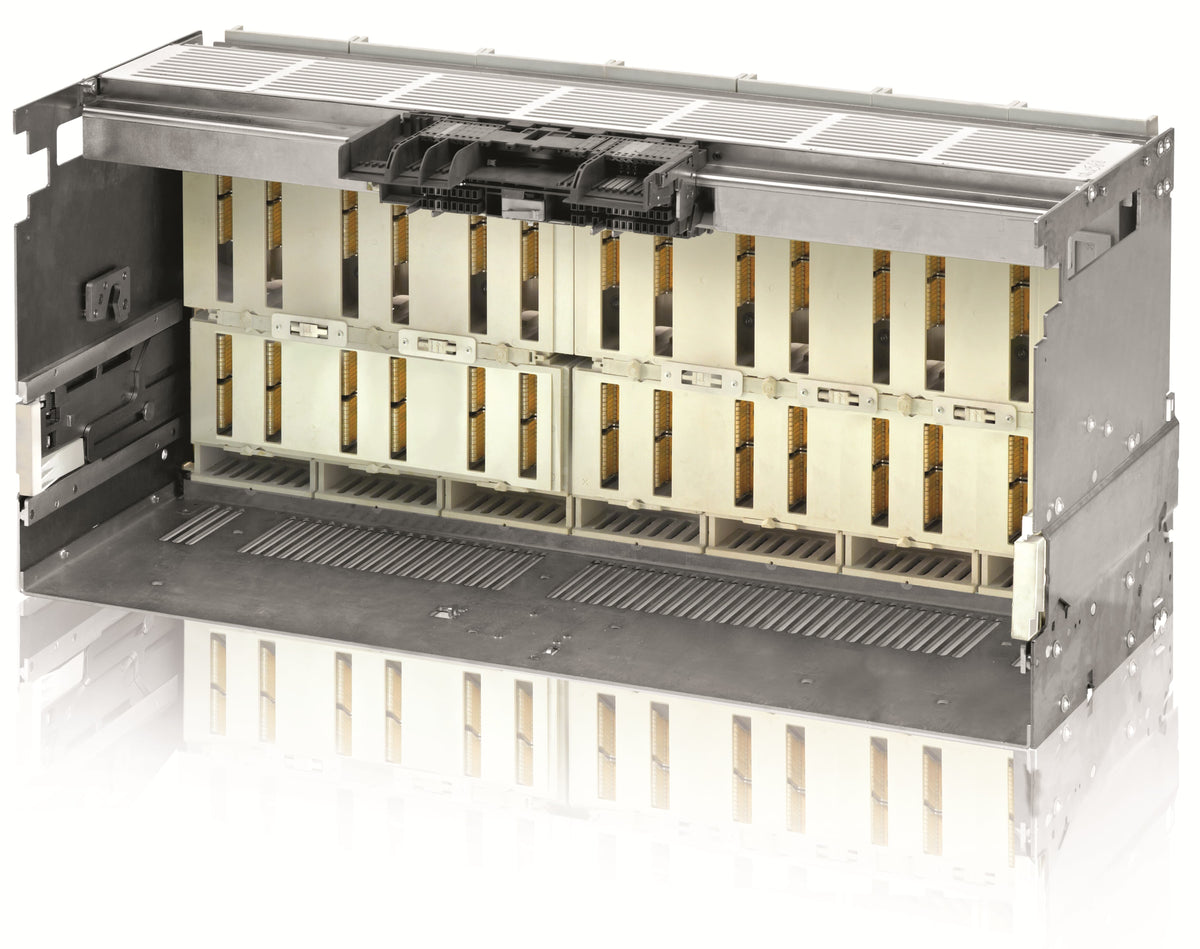

ABB 1SDA073922R1 E6.2 withdrawable fixed part, 4P full-size neutral, Iu 6300A
ABB 1SDA073922R1 E6.2 withdrawable fixed part, 4P full-size neutral, Iu 6300A

ABB 1SDA073922R1 E6.2 W FP Iu=6300 or X version 4p/f HRHR Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA073922R1
Catalog No: E6.2 W FP Iu=6300 or X version 4p/f HRHR
Series: Emax 2
Tariff Code (HS): 853890
Rated Voltage: 690 V AC
Poles: 4P (full size)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,687.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA073922R1 is the E6.2 W FP, the withdrawable fixed part for a 4-pole full-size SACE Emax 2 E6.2 breaker rated Iu 6300 A, with a full-rated (100%) neutral pole and rear horizontal terminals. It pairs with a matching E6.2 full-size moving part for withdrawable installation and weighs 112 kg.

Technical Specifications

SKU 1SDA073922R1
Brand ABB
Series Emax 2
Catalog Designation E6.2 W FP Iu=6300 or X version 4p/f HRHR
EAN 8015644778552
Sub-type E6.2
Number of Poles 4 / f (full size)
Neutral Pole Current 100%
Rated Uninterrupted Current (Iu) 6300 A
Rated Voltage (Ur) 690 V
Rated Operational Voltage 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Connecting Capacity 6000 mm2
Net Weight 112 kg
Dimensions (W x H x D) 1069 x 425 x 383 mm

Selection Notes

This is the full-size (4p/f) version of the E6.2 fixed part, carrying a 100% rated neutral pole rather than the 50% neutral on the standard 4-pole FP, for systems where the neutral conductor must carry the same current as the phases. It is wider than the standard 4-pole and 3-pole FPs in this series to accommodate the full-size neutral pole and its matching moving part.

Technical Details

Short Description
ABB E6.2 W FP fixed part, 4P full-size neutral, Iu 6300A, for withdrawable Emax 2 breakers.
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E6.2 W FP Iu=6300 or X version 4p/f HRHR
Number of Poles
4P (full size)
Delivery Date (Days)
30 days
Model Number
E6.2 W FP Iu=6300 or X version 4p/f HRHR
Tariff Code
853890
