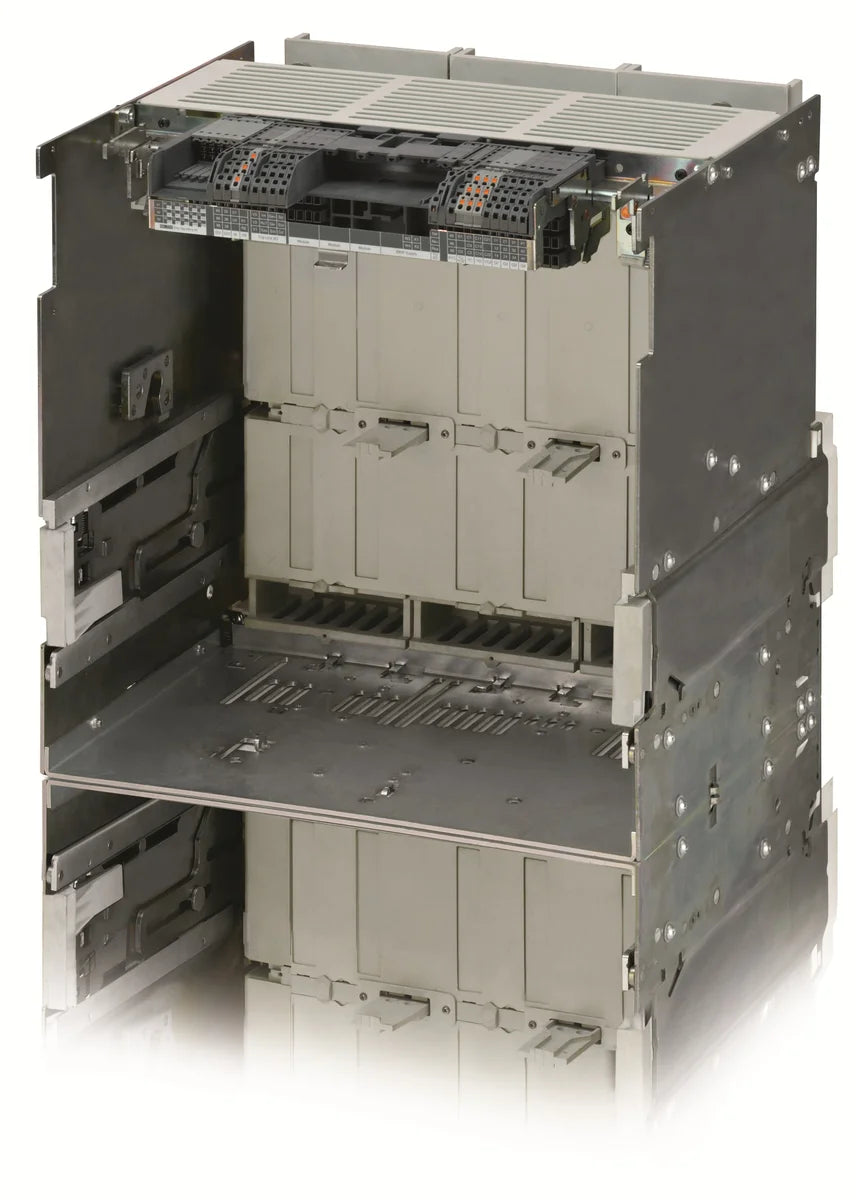

The ABB 1SDA073915R1 chassis part power circuit breaker, catalog number E4.2 W FP Iu=4000 or V version 3p HR HR, is the withdrawable fixed part (chassis) for the SACE Emax2 E4.2 series air circuit breaker rated at 4000 A across 3 poles. Designed for high-current industrial power distribution switchboards, this robust steel chassis enables safe insertion and withdrawal of the circuit breaker moving part without de-energising the busbar, supporting both standard voltage (V) and high-rupture (HR) configurations.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Width | 425 mm |
|---|---|
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 50 kg |
| Product Main Type | SACE Emax 2 |
|---|---|
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | WFP |
| Part number | 1SDA073915R1 |
|---|---|
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644778484 |
| ETIM class | EC002043 |
| eCl@ss | 27370422 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Connecting Capacity | 4000 mm² |
|---|---|
| Current Type | AC |
| Number of Poles | 3P |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC, 800 V AC, 900 V AC, 1000 V AC |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 1000 V |
| Recommended Screw Driver | M12 |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
|---|---|
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 570 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 57 kg |
| Package Level 1 EAN | 8015644778484 |
| Shipping weight | 50.0 kg |
| Ships from | Türkiye |
| Dispatch | 9 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of 1SDA073915R1 is 4000 A.
The tariff (HS) code on file for 1SDA073915R1 is 85389099.
The EAN (GTIN) of 1SDA073915R1 is 8015644778484.
1SDA073915R1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
