ABB 1SDA073877R1 PB Sep. H=100mm 4pz E1.2/3-XT7-XT7M F 3P Air Circuit Breaker Accessory

% $-14.79

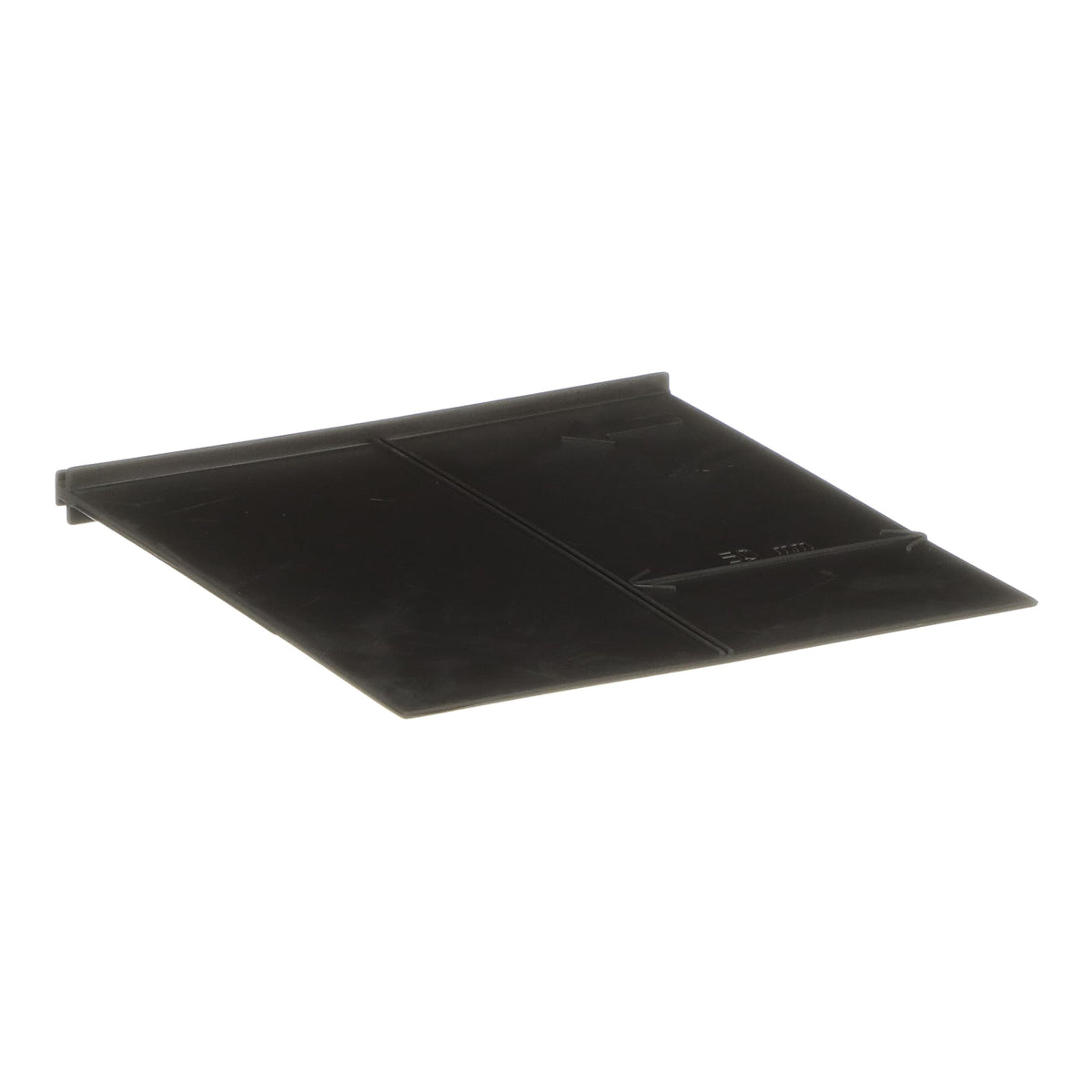

ABB 1SDA073877R1 phase separator barrier kit H100mm 3-pole
ABB 1SDA073877R1 phase separator barrier kit H100mm 3-pole

ABB 1SDA073877R1 PB Sep. H=100mm 4pz E1.2/3-XT7-XT7M F 3P Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA073877R1
Catalog No: PB Sep. H=100mm 4pz E1.2/3-XT7-XT7M F 3P
Series: Accessories for Emax 2
Tariff Code (HS): 853890
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$14.79

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA073877R1 is a kit of 4 phase-separation barriers, 100 mm high, for fixed-mounting SACE Emax 2 E1.2/3 and Tmax XT7/XT7M 3-pole air circuit breakers, inserted between poles to raise the internal clearance and creepage distance between phases. It is sized for the low (lower-terminal) position on a 3-pole fixed breaker.

Technical Specifications

SKU 1SDA073877R1
Brand ABB
Series Accessories for Emax 2
Catalog Designation PB Sep. H=100mm 4pz E1.2/3-XT7-XT7M F 3P
EAN 8015644778101
Function Phase-separation barrier kit, 4 pieces
Barrier Height 100 mm
Compatibility Fixed E1.2/3 Emax 2, XT7, XT7M, 3-pole
Number of Poles 3P
Configuration Type Loose or configurable
Order Multiple 1 piece
Dimensions (W x H x D) 145 x 15 x 180 mm
Net Weight 0.17 kg

Selection Notes

These low partitions sit between the breaker poles on the terminal side, raising phase-to-phase clearance where the installation or local wiring rules call for extra segregation beyond the breaker's standard pole spacing. The H=100 mm height and 4-piece kit size are specific to the 3-pole fixed E1.2/3-XT7-XT7M mounting; a 4-pole breaker needs a different kit count. Fit it at commissioning rather than retrofitting live, since the barriers mount directly against the pole housings.

Technical Details

Short Description
ABB phase separator barrier kit, 4 pieces, H=100mm, for fixed Emax 2 E1.2/3 and Tmax XT7/XT7M 3-pole breakers.
Mounting Type
Fixed, inter-pole barrier
Catalog No
PB Sep. H=100mm 4pz E1.2/3-XT7-XT7M F 3P
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
PB Sep. H=100mm 4pz E1.2/3-XT7-XT7M F 3P
Tariff Code
853890
