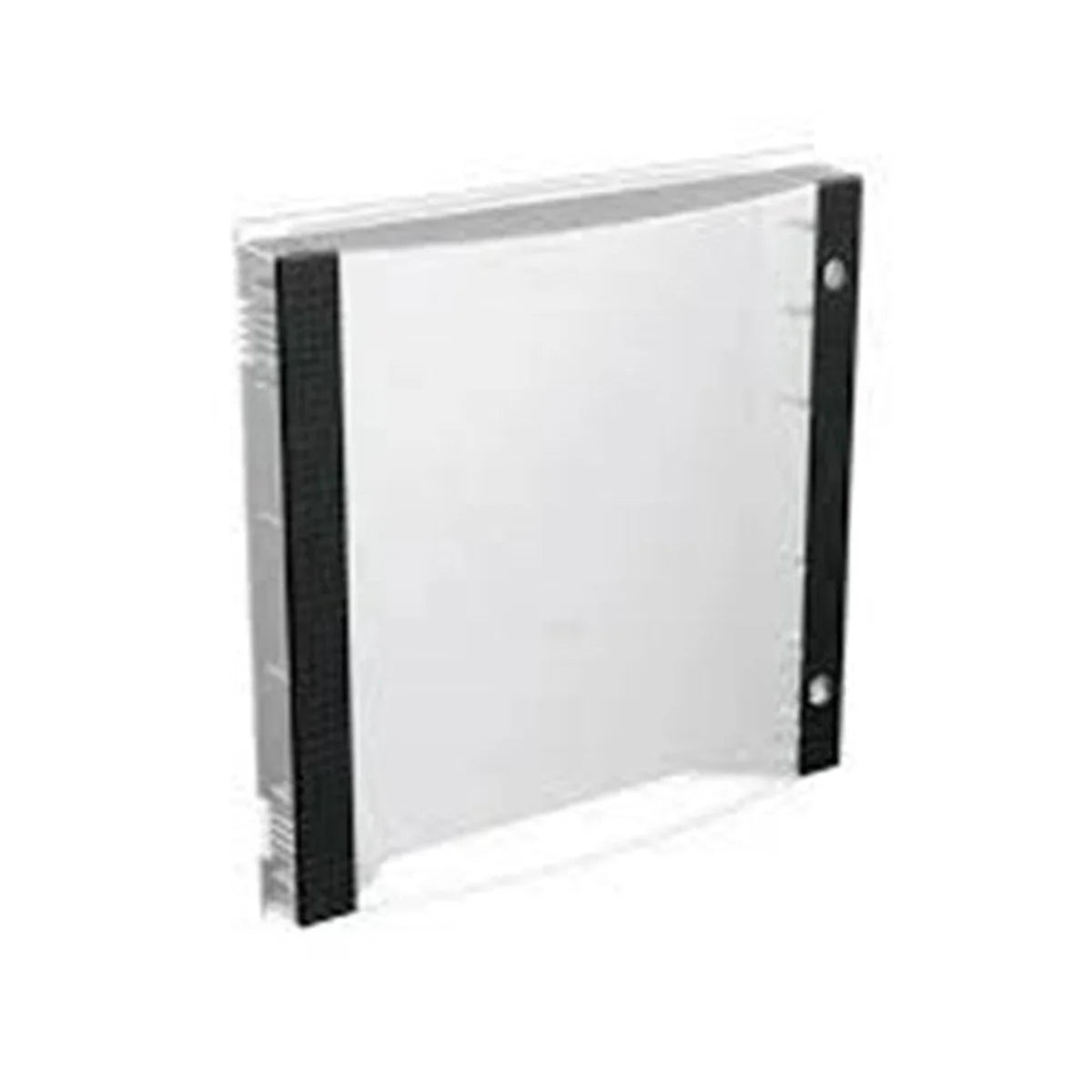

ABB 1SDA073869R1 IP54 Flange key No.20005E2.2/3..E6.2/3 Accessory for Air Circuit Breaker

The ABB 1SDA073869R1 IP54 Flange key No.20005E2.2/3..E6.2/3 is a genuine OEM accessory for ABB Emax 2 series Air Circuit Breakers, providing an IP54-rated flange key interface to maintain ingress protection when the breaker is panel-mounted. Designed for compatibility with Emax 2 frame sizes E2.2/3 through E6.2/3, this accessory ensures a reliable sealed connection between the ACB and the mounting flange. Weighing just 1.8 kg with overall dimensions of 424 × 364 × 132 mm, it integrates seamlessly into control panel assemblies where dust and water protection are required.

Technical Specifications

Certifications & Standards

• CE: Conforms to applicable European Union directives for safety and electromagnetic compatibility.
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive 2011/65/EU — free from restricted substances including lead, mercury, and cadmium.
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006 regarding the safe use of chemical substances.
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal and recycling.

Applications & Use Cases

• Panel-mounting of ABB Emax 2 Air Circuit Breakers where IP54 ingress protection is required at the flange interface
• Industrial power distribution switchboards in dusty or wet environments
• Marine, offshore, and outdoor enclosure installations demanding sealed ACB mounting
• Factory automation and process control panels requiring compliance with IP54 standards
• Replacement or upgrade of existing Emax 2 flange key assemblies in retrofit projects
