ABB 1SDA073866R1 IP54 Flange different keys E1.2/3-XT7M Air Circuit Breaker Accessory

% $-220.17

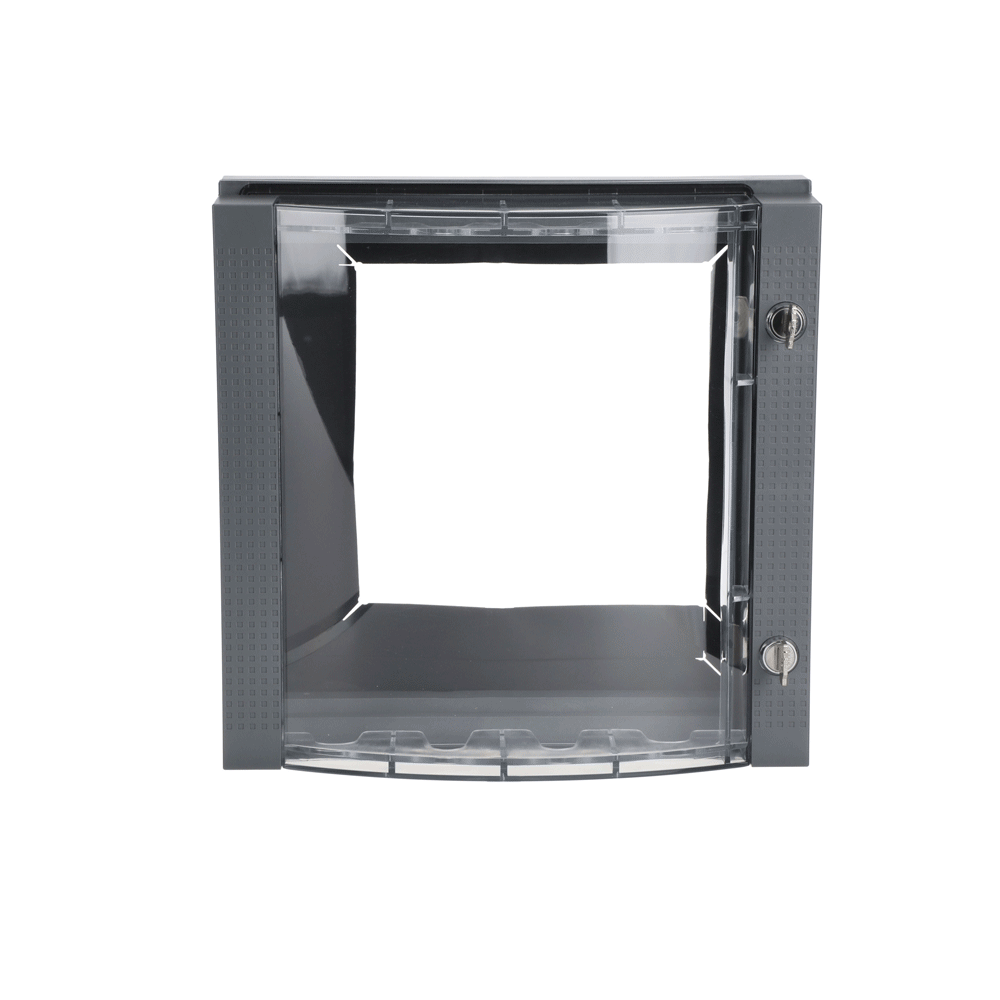

ABB 1SDA073866R1 IP54 flange protection keyed lock E1.2-XT7M breaker
ABB 1SDA073866R1 IP54 flange protection keyed lock E1.2-XT7M breaker

ABB 1SDA073866R1 IP54 Flange different keys E1.2/3-XT7M Air Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA073866R1
Catalog No: IP54 Flange different keys E1.2/3-XT7M
Series: Accessories for Emax 2
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$220.17

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA073866R1 is an IP54 flange protection kit with lock keys for the SACE Emax 2 E1.2/3 and Tmax XT7M air circuit breaker range, sealing the panel cut-out around the breaker front to raise the enclosure ingress rating to IP54. The keyed lock option lets the panel builder restrict front-panel access on switchboards with multiple breakers.

Technical Specifications

SKU 1SDA073866R1
Brand ABB
Series Accessories for Emax 2
Catalog Designation IP54 Flange different keys E1.2/3-XT7M
EAN 8015644777999
Function IP54 flange protection with keyed lock
Compatibility E1.2/3 Emax 2 frame, XT7M Tmax XT frame
Configuration Type Loose or configurable
Order Multiple 1 piece
Dimensions (W x H x D) 364 x 132 x 424 mm
Net Weight 1.26 kg

Certifications & Standards

    Selection Notes

    This flange fits the E1.2/3 Emax 2 frame and the XT7M Tmax XT frame, so it bridges two frame families sharing a common front cut-out size. Specify it where the switchboard front must reach IP54 - the standard breaker cut-out alone does not provide that ingress rating. The 'different keys' option assigns a distinct key profile, useful when several breakers on the same switchboard require separate access control.

    Technical Details

    Short Description
    ABB IP54 flange protection kit with lock keys for Emax 2 E1.2/3 and Tmax XT7M breaker front panel mounting.
    Mounting Type
    Panel flange
    Protection Type
    IP54
    Catalog No
    IP54 Flange different keys E1.2/3-XT7M
    Standards
    IEC/UL
    Delivery Date (Days)
    30 days
    Model Number
    IP54 Flange different keys E1.2/3-XT7M
    Tariff Code
    853890
