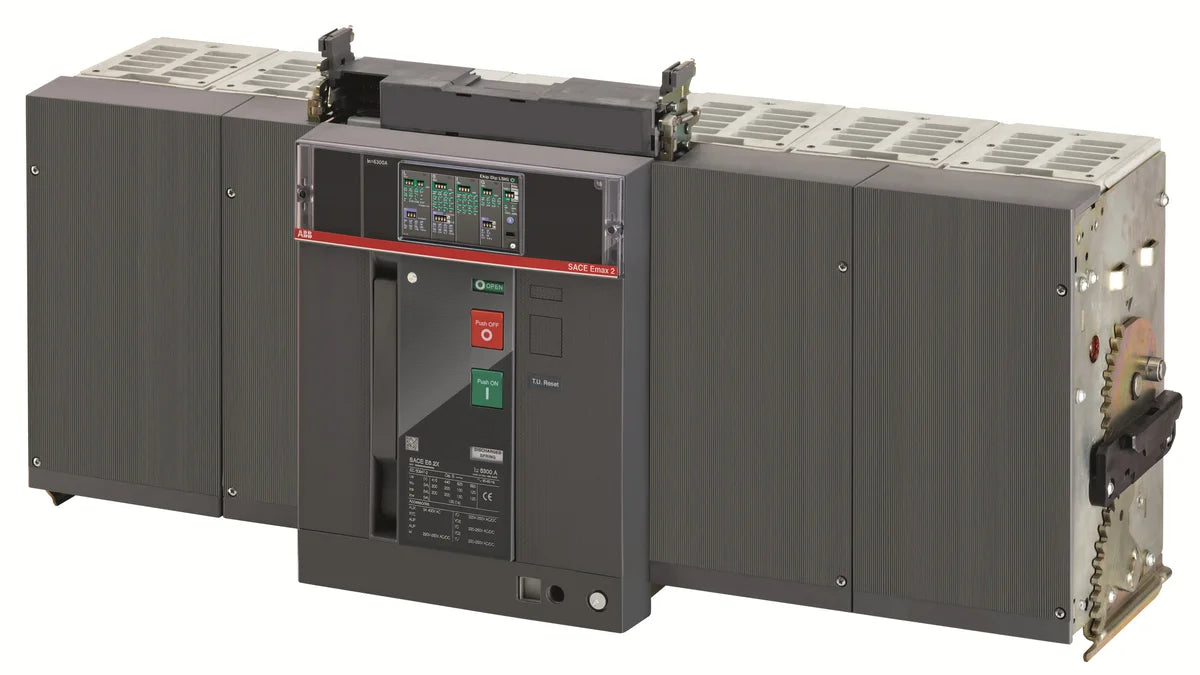

ABB 1SDA073242R1 E6.2H 5000 Ekip Dip LSI 4p WMP 5000A 4P 100kA Withdrawable Power Circuit Breaker

The ABB 1SDA073242R1 E6.2H 5000 Ekip Dip LSI 4p WMP is a heavy-duty 5000 A, 4-pole withdrawable power circuit breaker from the SACE Emax2 E6.2 series, rated for a breaking capacity of 100 kA at 400 V AC. Designed for trafo, generator, and installation protection, the E6.2H 5000 Ekip Dip LSI 4p WMP features the Ekip Dip LSI protection unit, delivering precise long-time, short-time, and instantaneous trip functions within a robust withdrawable (WMP) frame.

Technical Specifications

Certifications & Standards

• CE: Conforms to EU harmonised directives for market access in the European Economic Area
• IEC: Designed and tested in accordance with IEC standards
• IEC 60947: Compliant with IEC 60947 series for low-voltage switchgear and controlgear
• UL 2799: UL certification for electrical construction materials and assemblies
• ATEX: Approved for use in potentially explosive atmospheres
• CSA: Canadian Standards Association certified for North American markets
• VDE: Verband der Elektrotechnik certified to German/European electrical standards
• RoHS: Compliant with EU Directive 2011/65/EU Restriction of Hazardous Substances
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) for chemical safety
• EU Directive 2011/65/EU: RoHS2 directive compliance for restricted substances
• Amendment 2015/863: Compliant with updated RoHS substance restrictions under EU Delegated Directive 2015/863
• WEEE: Registered and compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

• Transformer protection in medium and large distribution boards
• Generator protection for standby and prime power installations
• Main incoming protection for industrial switchgear panels
• Bus-tie and bus-coupler applications in high-current distribution systems
• Protection of large motor feeders and critical infrastructure loads
• Oil & gas, petrochemical, and heavy-process industries requiring ATEX-rated equipment
