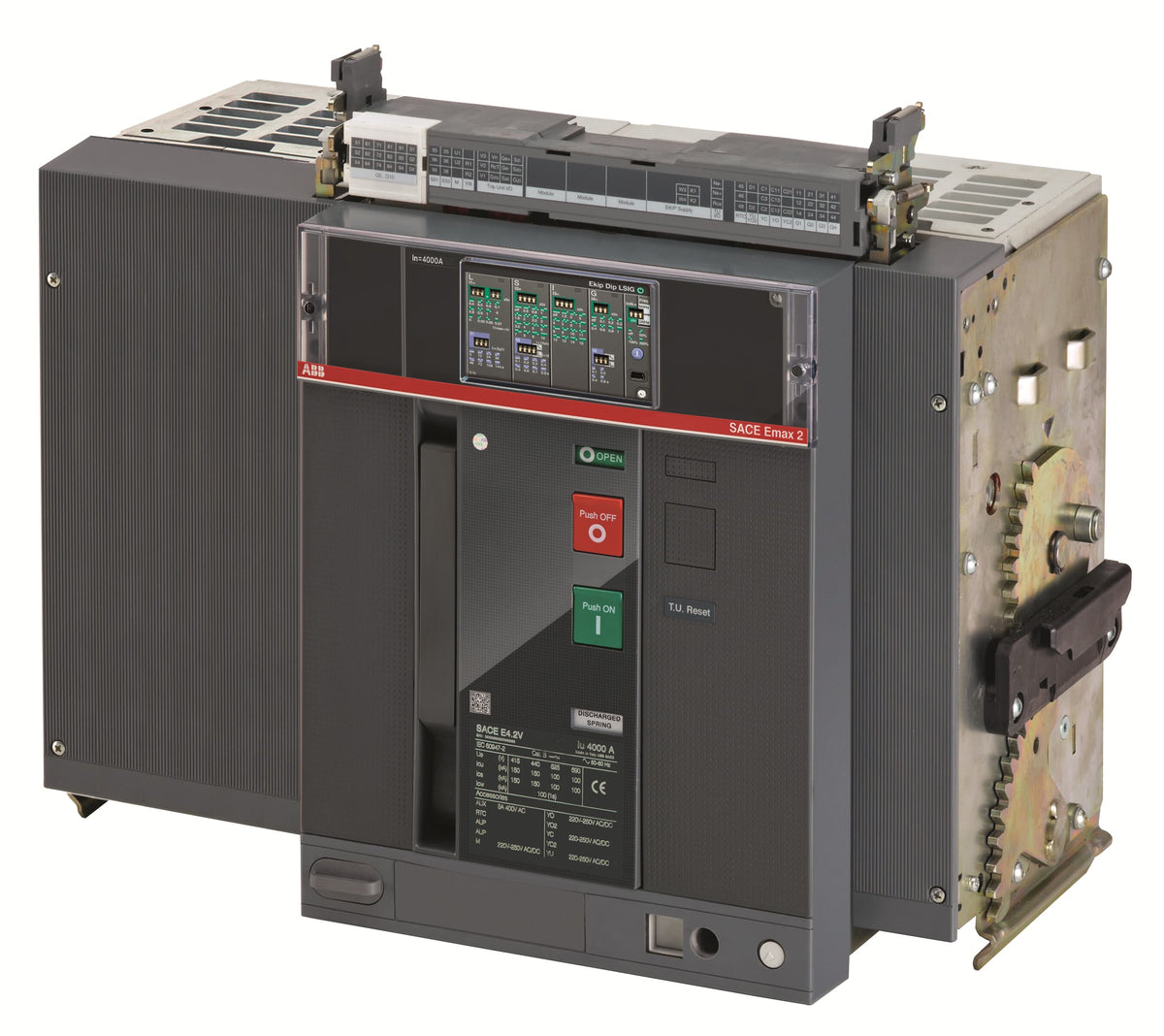

ABB 1SDA073142R1 E4.2H 3200 Ekip Dip LSI 4p WMP 100kA Air Circuit Breaker

% $-8,942.75
ABB 1SDA073142R1 E4.2H 3200 Ekip Dip LSI 4p WMP Air Circuit Breaker - 100kA
ABB 1SDA073142R1 E4.2H 3200 Ekip Dip LSI 4p WMP Air Circuit Breaker - 100kA

ABB 1SDA073142R1 E4.2H 3200 Ekip Dip LSI 4p WMP 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA073142R1
Catalog No: E4.2H 3200 Ekip Dip LSI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 3200
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8,942.75

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Closing out the E4.2H 3200 range, the ABB 1SDA073142R1 moving part is a four-pole SACE Emax 2 Ekip Dip LSI air circuit breaker rated 100 kA ultimate breaking capacity at 400 V AC. The fourth pole is rated at the full 3200 A, and the LSI release adds an adjustable short-time delay for selective tripping.

Technical Specifications

SKU 1SDA073142R1
Brand ABB
Series SACE Emax 2
Catalog Designation E4.2H 3200 Ekip Dip LSI 4p WMP
EAN 8015644769925
Frame E4.2
Breaking Capacity Performance Level H
Rated Current (In) 3200 A
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 100 kA
Service Breaking Capacity (Ics, 400 V AC) 100 kA (100% of Icu)
Short-Time Withstand Current (Icw) 85 kA for 1 s / 66 kA for 3 s
Release / Trip Unit Ekip Dip LSI
Version Withdrawable moving part (WMP) - separate fixed part/cradle required
Connecting Capacity 3000 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 743 W
Net Weight 74 kg
Dimensions (W x H x D) 551 x 425 x 383 mm

Selection Notes

This four-pole unit switches and protects the neutral at the full 3200 A rating, for boards that need a breaking neutral at the top of the Emax 2 current range. The LSI short-time delay supports a main-incomer role by letting the breaker hold through a downstream fault while a smaller breaker clears first - the LI-only 1SDA073141R1 in the same WMP, H-level frame trips instantaneously instead. As a WMP unit it requires a matching E4.2 fixed part already installed in the switchboard before it can be racked in.

Technical Details

Short Description
ABB 1SDA073142R1 - SACE Emax 2 E4.2H 3200 Ekip Dip LSI 4p WMP, 3200 A, 100 kA Icu at 400 V AC, withdrawable moving part.
Rated Current (Ampere)
3200
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable (Moving Part Only - WMP)
Catalog No
E4.2H 3200 Ekip Dip LSI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E4.2H 3200 Ekip Dip LSI 4p WMP
Tariff Code
853620
