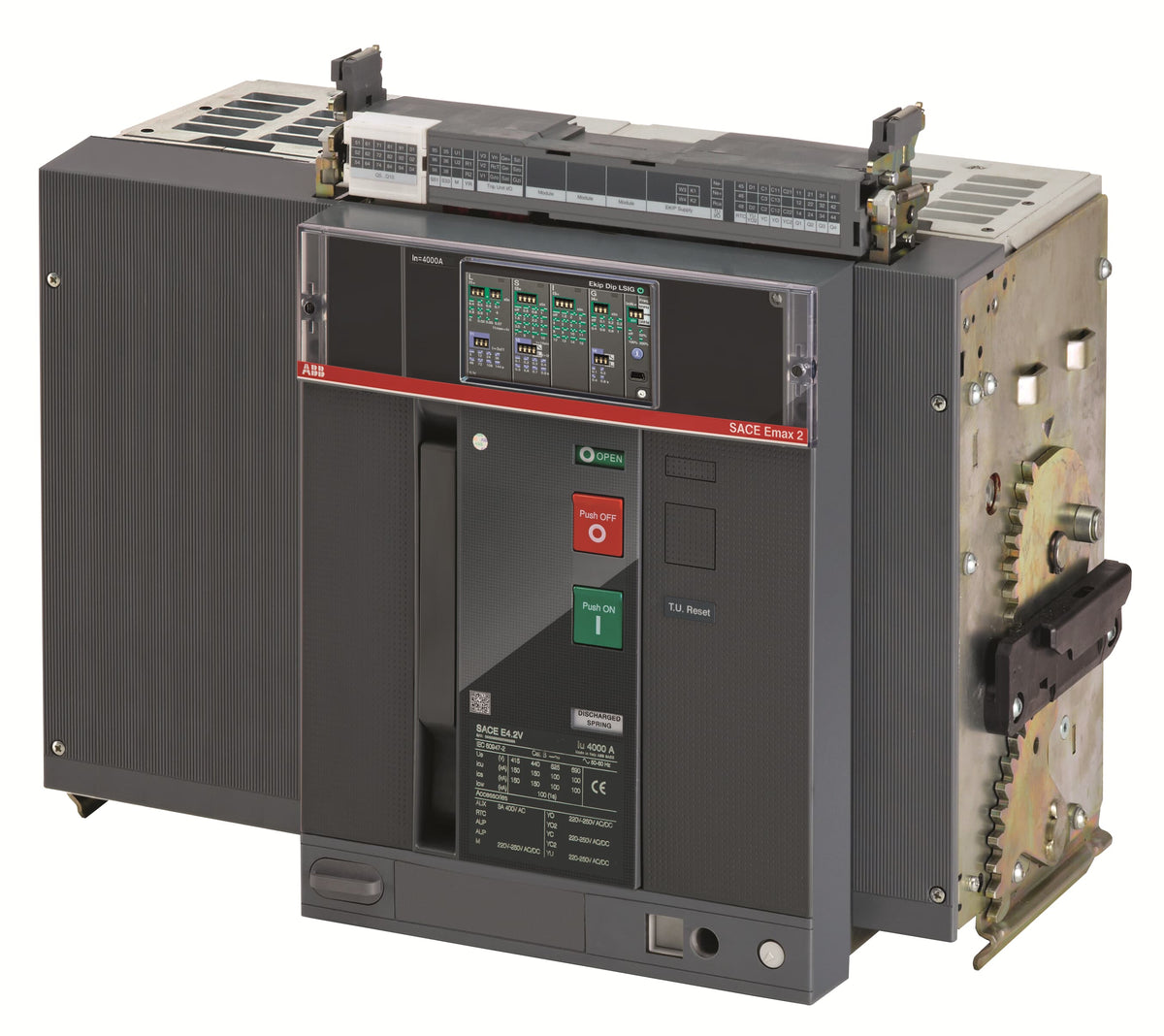

ABB 1SDA073141R1 E4.2H 3200 Ekip Dip LI 4p WMP 100kA Air Circuit Breaker

% $-8,468.23
ABB 1SDA073141R1 E4.2H 3200 Ekip Dip LI 4p WMP Air Circuit Breaker - 100kA
ABB 1SDA073141R1 E4.2H 3200 Ekip Dip LI 4p WMP Air Circuit Breaker - 100kA

ABB 1SDA073141R1 E4.2H 3200 Ekip Dip LI 4p WMP 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA073141R1
Catalog No: E4.2H 3200 Ekip Dip LI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 3200
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$8,468.23

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Four-pole and 3200 A, the ABB 1SDA073141R1 moving part belongs to the SACE Emax 2 E4.2H Ekip Dip LI line, rated 100 kA ultimate breaking capacity at 400 V AC. The fourth pole carries the full rated current, and the LI release gives overload plus instantaneous short-circuit protection.

Technical Specifications

SKU 1SDA073141R1
Brand ABB
Series SACE Emax 2
Catalog Designation E4.2H 3200 Ekip Dip LI 4p WMP
EAN 8015644769918
Frame E4.2
Breaking Capacity Performance Level H
Rated Current (In) 3200 A
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 100 kA
Service Breaking Capacity (Ics, 400 V AC) 100 kA (100% of Icu)
Short-Time Withstand Current (Icw) 85 kA for 1 s / 66 kA for 3 s
Release / Trip Unit Ekip Dip LI
Version Withdrawable moving part (WMP) - separate fixed part/cradle required
Connecting Capacity 3000 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 743 W
Net Weight 74 kg
Dimensions (W x H x D) 551 x 425 x 383 mm

Selection Notes

This four-pole unit switches and protects the neutral at the full 3200 A rating, suiting an installation that needs a breaking neutral at the top of the Emax 2 current range. The LI release trips instantaneously with no timed short-time stage, so it fits a sub-main or final position better than an incomer meant to ride through a downstream fault - the LSI-equipped 1SDA073142R1 in the same WMP, H-level frame is built for that role. A matching E4.2 fixed part must already be installed since this ships as the moving part only.

Technical Details

Short Description
ABB 1SDA073141R1 - SACE Emax 2 E4.2H 3200 Ekip Dip LI 4p WMP, 3200 A, 100 kA Icu at 400 V AC, withdrawable moving part.
Rated Current (Ampere)
3200
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable (Moving Part Only - WMP)
Catalog No
E4.2H 3200 Ekip Dip LI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E4.2H 3200 Ekip Dip LI 4p WMP
Tariff Code
853620
