ABB 1SDA073051R1 E2.2S 2500 Ekip Dip LI 4p WMP 85kA Air Circuit Breaker

% $-7,124.57
ABB 1SDA073051R1 E2.2S 2500 Ekip Dip LI 4p WMP Air Circuit Breaker - 85kA
ABB 1SDA073051R1 E2.2S 2500 Ekip Dip LI 4p WMP Air Circuit Breaker - 85kA

ABB 1SDA073051R1 E2.2S 2500 Ekip Dip LI 4p WMP 85kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA073051R1
Catalog No: E2.2S 2500 Ekip Dip LI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2500
Breaking Capacity: 85 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$7,124.57

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

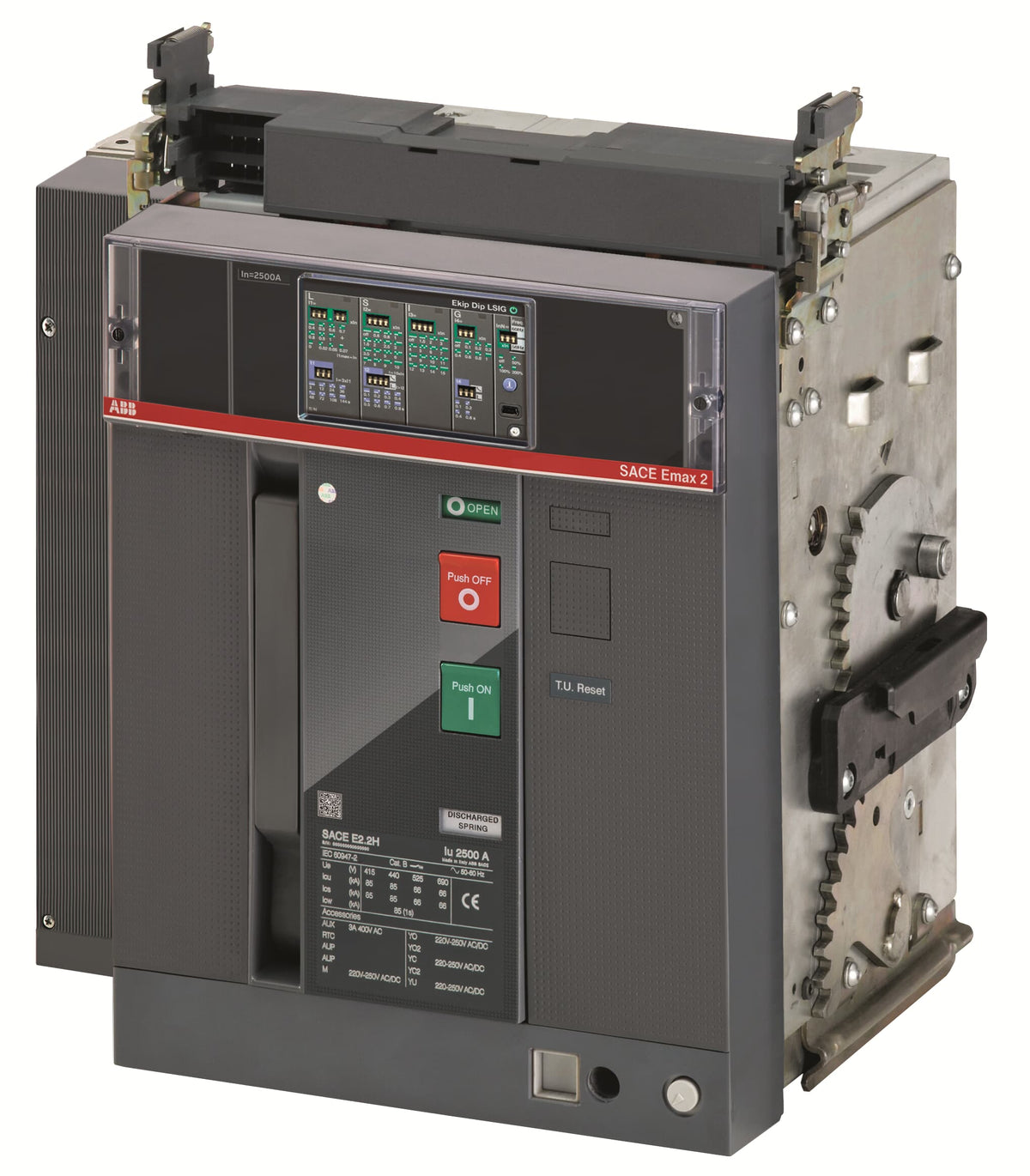

Stepping up to 2500 A, the ABB 1SDA073051R1 is a four-pole SACE Emax 2 E2.2S Ekip Dip LI moving part rated 85 kA ultimate breaking capacity at 400 V AC. The LI release provides long-time overload and instantaneous short-circuit protection with no adjustable short-time stage.

Technical Specifications

SKU 1SDA073051R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2S 2500 Ekip Dip LI 4p WMP
EAN 8015644769017
Frame E2.2
Breaking Capacity Performance Level S
Rated Current (In) 2500 A
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 85 kA
Service Breaking Capacity (Ics, 400 V AC) 85 kA (100% of Icu)
Short-Time Withstand Current (Icw) 66 kA for 1 s / 50 kA for 3 s
Release / Trip Unit Ekip Dip LI
Version Withdrawable moving part (WMP) - separate fixed part/cradle required
Connecting Capacity 1800 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 550 W
Net Weight 55 kg
Dimensions (W x H x D) 407 x 425 x 383 mm

Selection Notes

At 2500 A this is the higher-current step above the 2000 A E2.2S units in the same frame and release family, useful where the board's main run exceeds 2000 A but still sits within the E2.2 frame's physical envelope. The LI release trips instantaneously on a short circuit, so it is better suited to a sub-main or final position than an incomer needing to stay closed through a downstream fault - the LSI-equipped 1SDA073052R1 covers that case at the same 2500 A rating. As a WMP unit it ships without a fixed part, which must already be installed in the cubicle.

Technical Details

Short Description
ABB 1SDA073051R1 - SACE Emax 2 E2.2S 2500 Ekip Dip LI 4p WMP, 2500 A, 85 kA Icu at 400 V AC, withdrawable moving part.
Rated Current (Ampere)
2500
Breaking Capacity (kA)
85 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable (Moving Part Only - WMP)
Catalog No
E2.2S 2500 Ekip Dip LI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2S 2500 Ekip Dip LI 4p WMP
Tariff Code
853620
