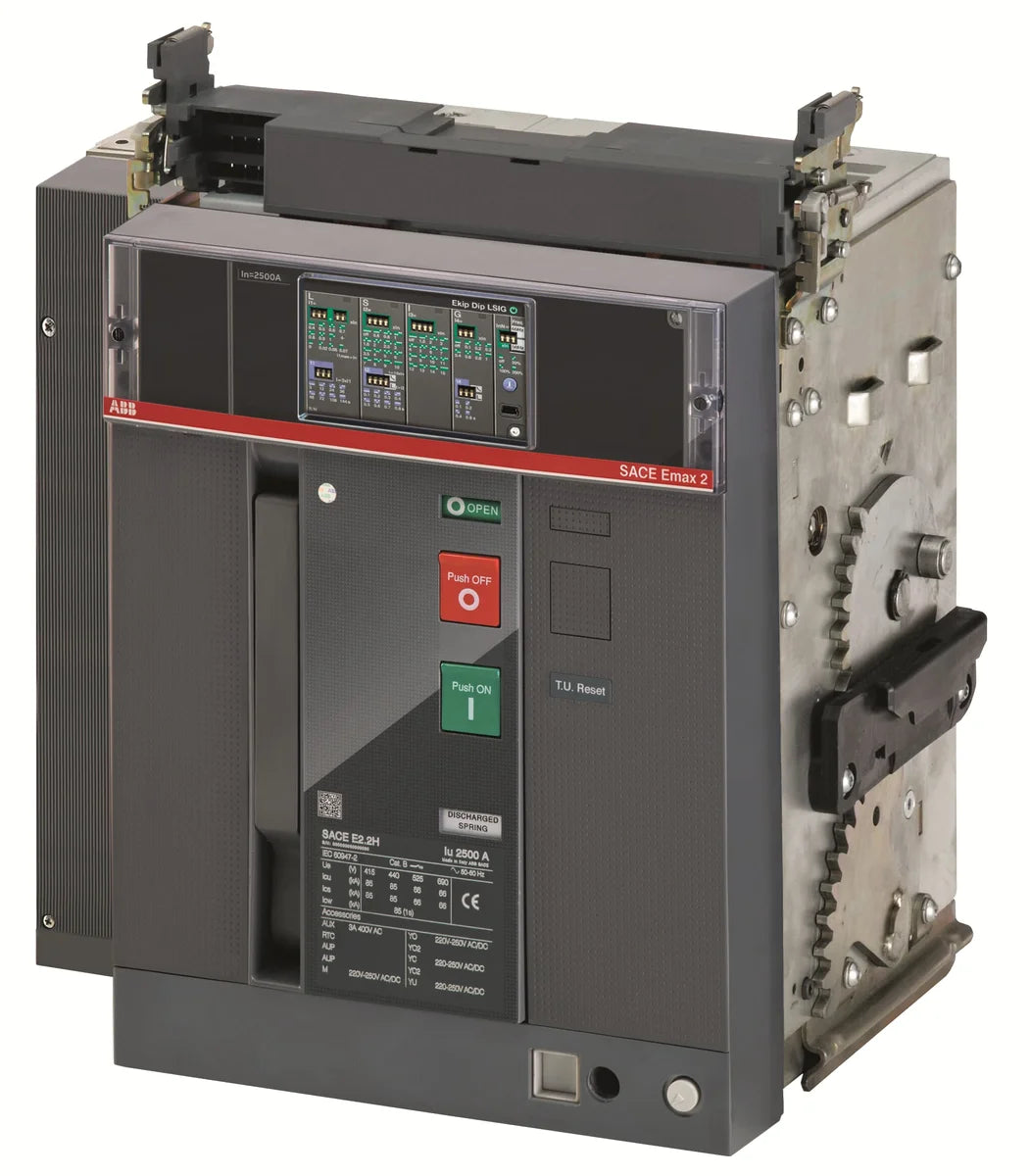

ABB 1SDA073041R1 E2.2N 2500 Ekip Dip LI 4p WMP 2500A 4P 66kA Withdrawable Power Circuit Breaker

The ABB 1SDA073041R1 E2.2N 2500 Ekip Dip LI 4p WMP is a 2500A 4-pole withdrawable power circuit breaker from the SACE Emax2 E2.2 series, delivering a breaking capacity of 66 kA at 400 V AC. The E2.2N 2500 Ekip Dip LI 4p WMP features the Ekip Dip LI protection release for precise overload (L) and short-circuit (I) protection, making it an authoritative solution for transformer, generator, and installation protection in demanding industrial power distribution applications.

Technical Specifications

Certifications & Standards

• IEC: Designed and tested in accordance with IEC standards for low-voltage switchgear and controlgear
• IEC 60947: Compliant with IEC 60947 series for low-voltage switchgear performance and safety
• CE: Carries CE marking confirming conformity with applicable European directives
• EU Directive 2011/65/EU (RoHS): Compliant with the Restriction of Hazardous Substances Directive
• Amendment 2015/863: Meets the updated RoHS restricted substances list under EU Amendment 2015/863
• RoHS: Restriction of Hazardous Substances compliance verified
• REACH: Compliant with EU REACH regulation on chemical substance safety
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for proper end-of-life disposal
• ATEX: Certified for use in potentially explosive atmospheres where applicable
• UL 2799: Recognised under UL 2799 for relevant North American market requirements
• CSA: Certified to CSA standards for Canadian and North American installations
• VDE: Tested and approved by VDE to German/European electrical safety standards

Applications & Use Cases

• Main and tie breaker protection in medium-to-large MV/LV transformer substations
• Generator incomer protection in standby and prime power installations
• Bus-coupler and feeder protection in main distribution boards (MDB) and power distribution panels
• Industrial plants requiring high-interrupting-capacity switching in oil & gas, mining, water treatment, and data centre facilities
• Applications requiring withdrawable (truck-type) breakers for safe maintenance and rapid replacement
