ABB 1SDA072972R1 E2.2N 1600 Ekip Dip LSI 4p WMP 66kA Air Circuit Breaker

% $-4,595.95

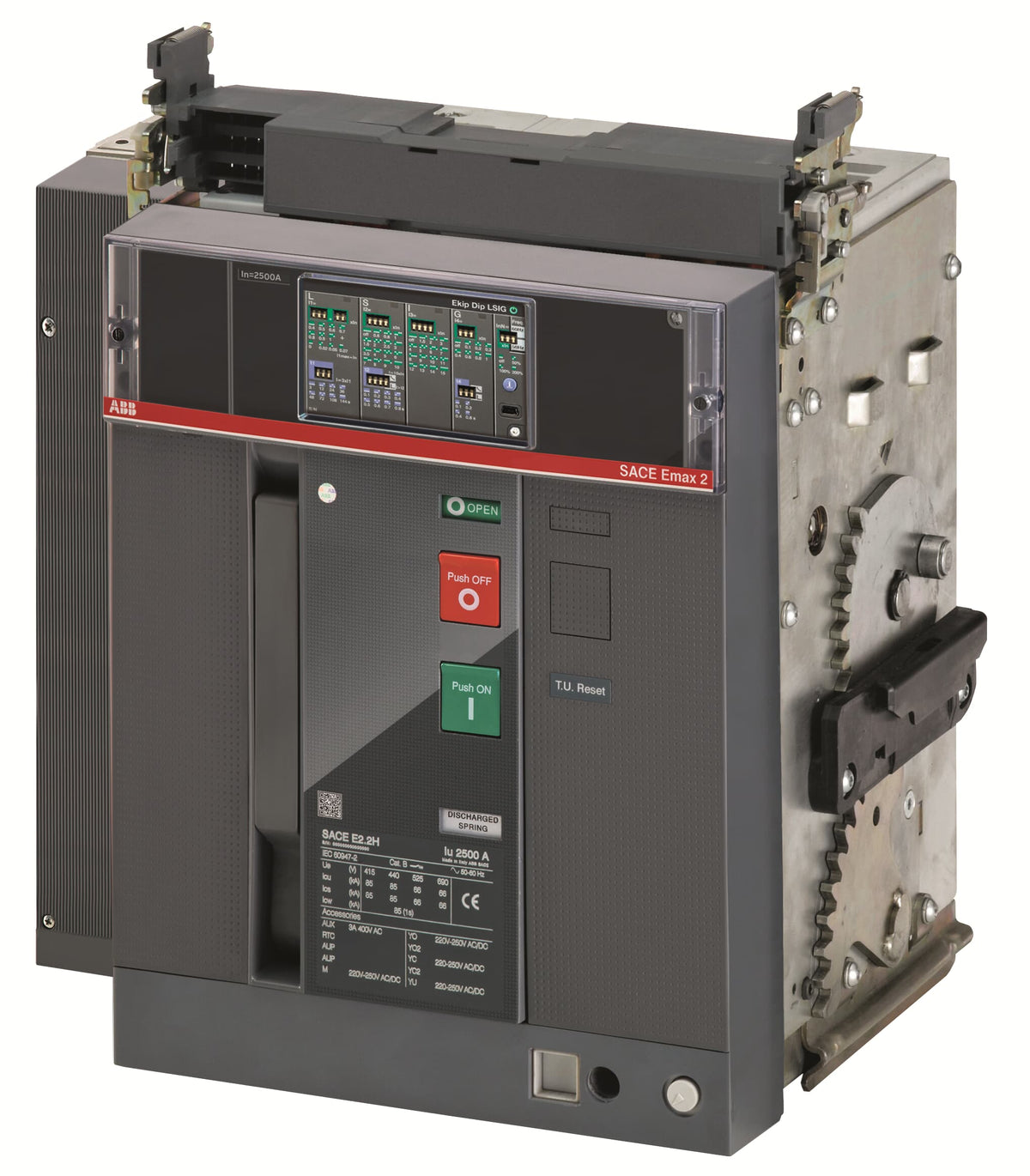

ABB 1SDA072972R1 E2.2N 1600 Ekip Dip LSI 4p WMP air circuit breaker moving part
ABB 1SDA072972R1 E2.2N 1600 Ekip Dip LSI 4p WMP air circuit breaker moving part

ABB 1SDA072972R1 E2.2N 1600 Ekip Dip LSI 4p WMP 66kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072972R1
Catalog No: E2.2N 1600 Ekip Dip LSI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 66 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,595.95

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

1SDA072972R1 covers the withdrawable moving part of an ABB SACE Emax 2 E2.2N 1600 air circuit breaker, four-pole, with the Ekip Dip LSI electronic release, 1600 A uninterrupted current and 66 kA breaking capacity at 400 V AC. Being a WMP, it requires a separately ordered fixed part before it can be racked into a switchboard.

Technical Specifications

SKU 1SDA072972R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2N 1600 Ekip Dip LSI 4p WMP
EAN 8015644768225
Frame / Performance Level E2.2N (level N)
Poles 4P
Neutral Pole Current 100% of In
Rated Current (In / Iu) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 66 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 66 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 66 kA / 1 s, 50 kA / 3 s
Release / Trip Unit Ekip Dip LSI
Connecting Capacity 1200 mm²
Power Loss (per pole) 288 W
Dimensions (W x H x D) 407 x 425 x 383 mm
Net Weight 55 kg
Suitable for IT Networks Yes, up to 690 V

Selection Notes

The S function in this Ekip Dip LSI release lets the breaker hold off tripping on a downstream short-circuit for a set time, so a smaller device further down the installation can clear it first — worth specifying when this unit needs to coordinate selectively with other Emax 2 or Tmax breakers. 66 kA Icu and 66 kA Icw for 1 second put it at the N performance level, below the H-level E2.2 frame and generally the more economical option where the switchboard's fault level allows it. As a WMP, the matching fixed part is a separate order; the pair is what delivers a withdrawable breaker that can be pulled for maintenance without disturbing wiring. Step up to the 2000 A E2.2N sibling in the same release and pole count for a higher feeder current.

Technical Details

Short Description
ABB 1SDA072972R1 - SACE Emax 2 E2.2N 1600A 4P, Ekip Dip LSI release, 66 kA Icu, withdrawable moving part (cradle sold separately).
Rated Current (Ampere)
1600
Breaking Capacity (kA)
66 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2N 1600 Ekip Dip LSI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2N 1600 Ekip Dip LSI 4p WMP
Tariff Code
853620
