ABB 1SDA072962R1 E2.2B 1600 Ekip Dip LSI 4p WMP 42kA Air Circuit Breaker

% $-4,115.09
ABB 1SDA072962R1 E2.2B 1600 Ekip Dip LSI 4p WMP Air Circuit Breaker - 42 kA Icu
ABB 1SDA072962R1 E2.2B 1600 Ekip Dip LSI 4p WMP Air Circuit Breaker - 42 kA Icu

ABB 1SDA072962R1 E2.2B 1600 Ekip Dip LSI 4p WMP 42kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072962R1
Catalog No: E2.2B 1600 Ekip Dip LSI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 42 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,115.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

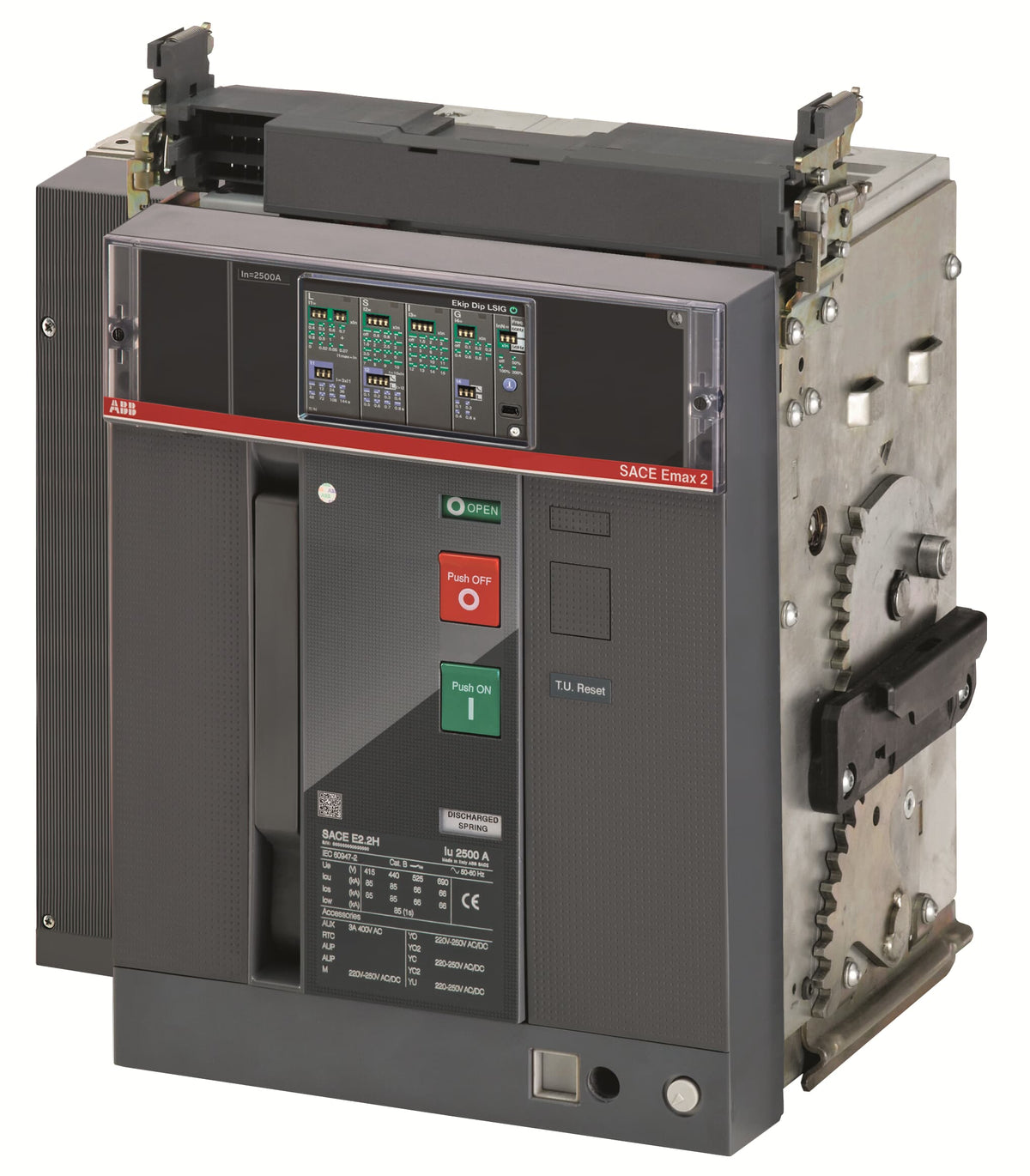

This is the withdrawable moving part of ABB's 1SDA072962R1, a SACE Emax 2 E2.2B 1600 Ekip Dip LSI four-pole air circuit breaker - a matching fixed part (cradle) is needed to complete the installation. It carries a 42 kA breaking capacity (Icu) at 400 V AC and a 1600 A uninterrupted current rating, with the fourth pole switching the neutral in four-wire 690 V AC systems.

Technical Specifications

Catalog Designation E2.2B 1600 Ekip Dip LSI 4p WMP
SKU / Order Code 1SDA072962R1
Brand ABB
Series SACE Emax 2 (E2.2 frame, performance level B)
EAN 8015644768126
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Uninterrupted Current (Iu / In) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV, acc. to IEC 60947-2
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 42 kA at 400-690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 42 kA at 220-440 V AC (100% of Icu)
Rated Short-time Withstand Current (Icw) 42 kA for 1 s and 3 s
Release / Trip Unit Ekip Dip LSI (electronic)
Short-Circuit Performance Level B
Version Withdrawable moving part only - requires separate fixed part (cradle)
Connecting Capacity 1200 mm²
Power Loss 288 W
Net Weight 55 kg
Dimensions (W x H x D) 407 x 425 x 383 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

This four-pole WMP moving part pairs with a separate fixed cradle, unlike the fixed F HR version - pick it when retrofitting a four-pole withdrawable Emax 2 installation already in service. It carries the same 1600 A rating and 42 kA Icu as the three-pole moving part, with the LSI release's short-time delay enabling coordinated tripping ahead of an instantaneous trip. The fourth pole handles neutral switching for four-wire systems.

Technical Details

Short Description
ABB 1SDA072962R1 - SACE Emax 2 E2.2B 1600 Ekip Dip LSI 4p WMP moving part, 1600A, 42 kA Icu.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
42 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2B 1600 Ekip Dip LSI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2B 1600 Ekip Dip LSI 4p WMP
Tariff Code
853620
