ABB 1SDA072961R1 E2.2B 1600 Ekip Dip LI 4p WMP 42kA Air Circuit Breaker

% $-3,975.96
ABB 1SDA072961R1 E2.2B 1600 Ekip Dip LI 4p WMP Air Circuit Breaker - 42 kA
ABB 1SDA072961R1 E2.2B 1600 Ekip Dip LI 4p WMP Air Circuit Breaker - 42 kA

ABB 1SDA072961R1 E2.2B 1600 Ekip Dip LI 4p WMP 42kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072961R1
Catalog No: E2.2B 1600 Ekip Dip LI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 42 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,975.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

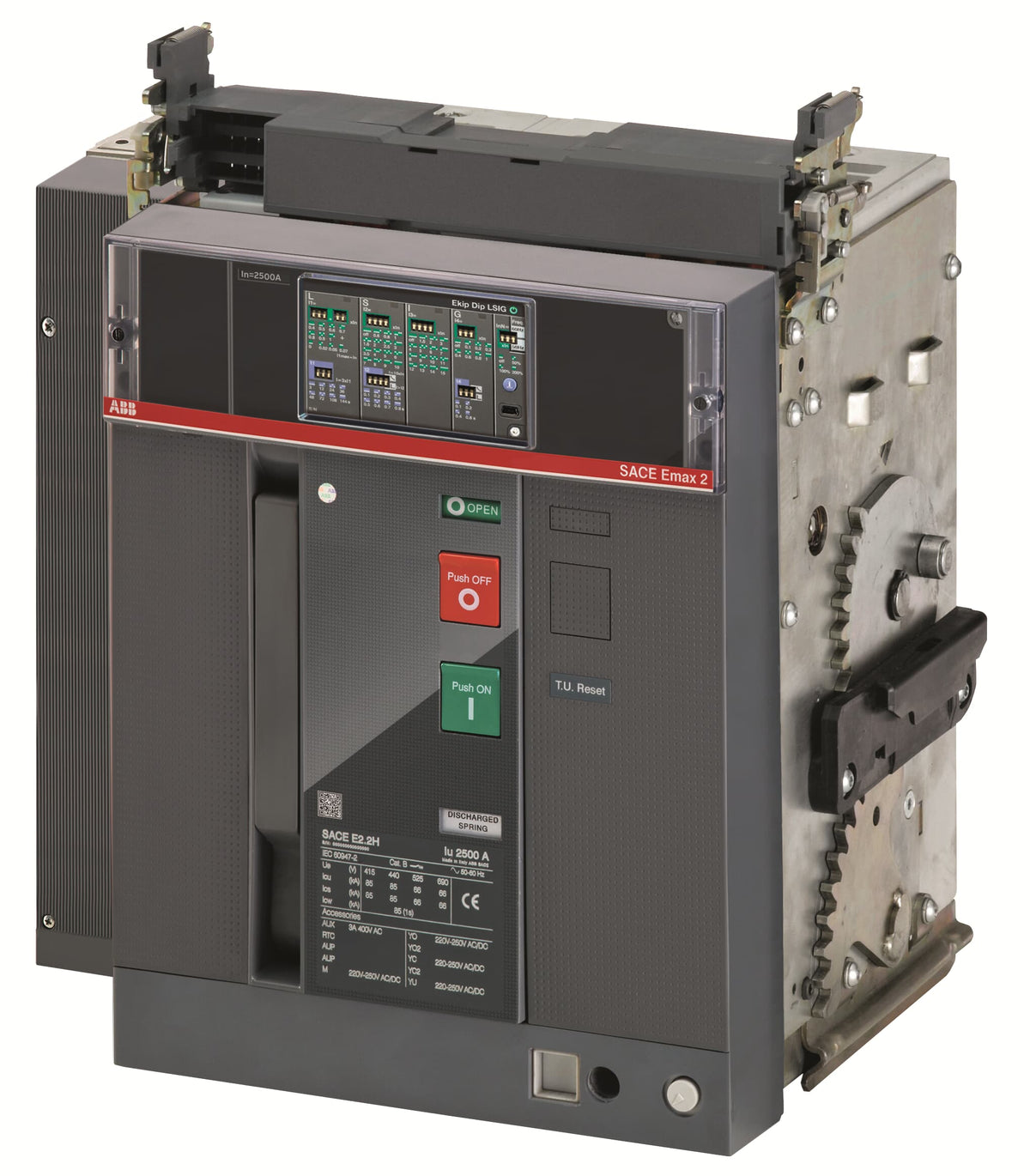

Order code 1SDA072961R1 is the ABB SACE Emax 2 E2.2B 1600 Ekip Dip LI 4p WMP, a four-pole withdrawable moving part on the larger E2.2 frame, rated 1600 A (Iu) with a 42 kA ultimate breaking capacity (Icu) at 400 V AC. The part is the drawout truck alone; it needs a matching fixed part and cradle already installed to operate.

Technical Specifications

SKU 1SDA072961R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2B 1600 Ekip Dip LI 4p WMP
EAN 8015644768119
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Current (In / Iu) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 42 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 42 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 42 kA / 1 s, 42 kA / 3 s
Release / Trip Unit Ekip Dip LI
Short-Circuit Performance Level B
Connecting Capacity 1200 mm²
Mounting Withdrawable (moving part only — fixed part/cradle ordered separately)
Current Type AC
Suitable for IT Networks Yes, up to 690 V
Power Loss 288 W
Net Dimensions (W x H x D) 407 x 425 x 383 mm
Net Weight 55 kg

Selection Notes

The fourth pole carries 100% of Iu, so this moving part is for a four-wire 1600 A circuit where the neutral must switch with the phases — the three-pole 1600 A WMP in the same E2.2B frame leaves the neutral through-connected. Performance class B holds the 42 kA Icw flat at both 1 s and 3 s, but Ekip Dip LI has no short-time delay (S) stage, so it still trips instantaneously on a fault; specify the LSI-equipped 1600 A four-pole truck instead where selective coordination with downstream breakers is required.

Technical Details

Short Description
ABB SACE Emax 2 E2.2B 1600 Ekip Dip LI 4p WMP moving part, 1600 A, 42 kA Icu at 400 V AC, withdrawable.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
42 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2B 1600 Ekip Dip LI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2B 1600 Ekip Dip LI 4p WMP
Tariff Code
853620

Downloads

Customers say

Pairs well with

Related products
