ABB 1SDA072932R1 E2.2N 1250 Ekip Dip LSI 4p WMP 66kA Air Circuit Breaker

% $-4,177.51
ABB 1SDA072932R1 E2.2N 1250 Ekip Dip LSI 4p WMP air circuit breaker moving part
ABB 1SDA072932R1 E2.2N 1250 Ekip Dip LSI 4p WMP air circuit breaker moving part

ABB 1SDA072932R1 E2.2N 1250 Ekip Dip LSI 4p WMP 66kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072932R1
Catalog No: E2.2N 1250 Ekip Dip LSI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1250
Breaking Capacity: 66 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,177.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

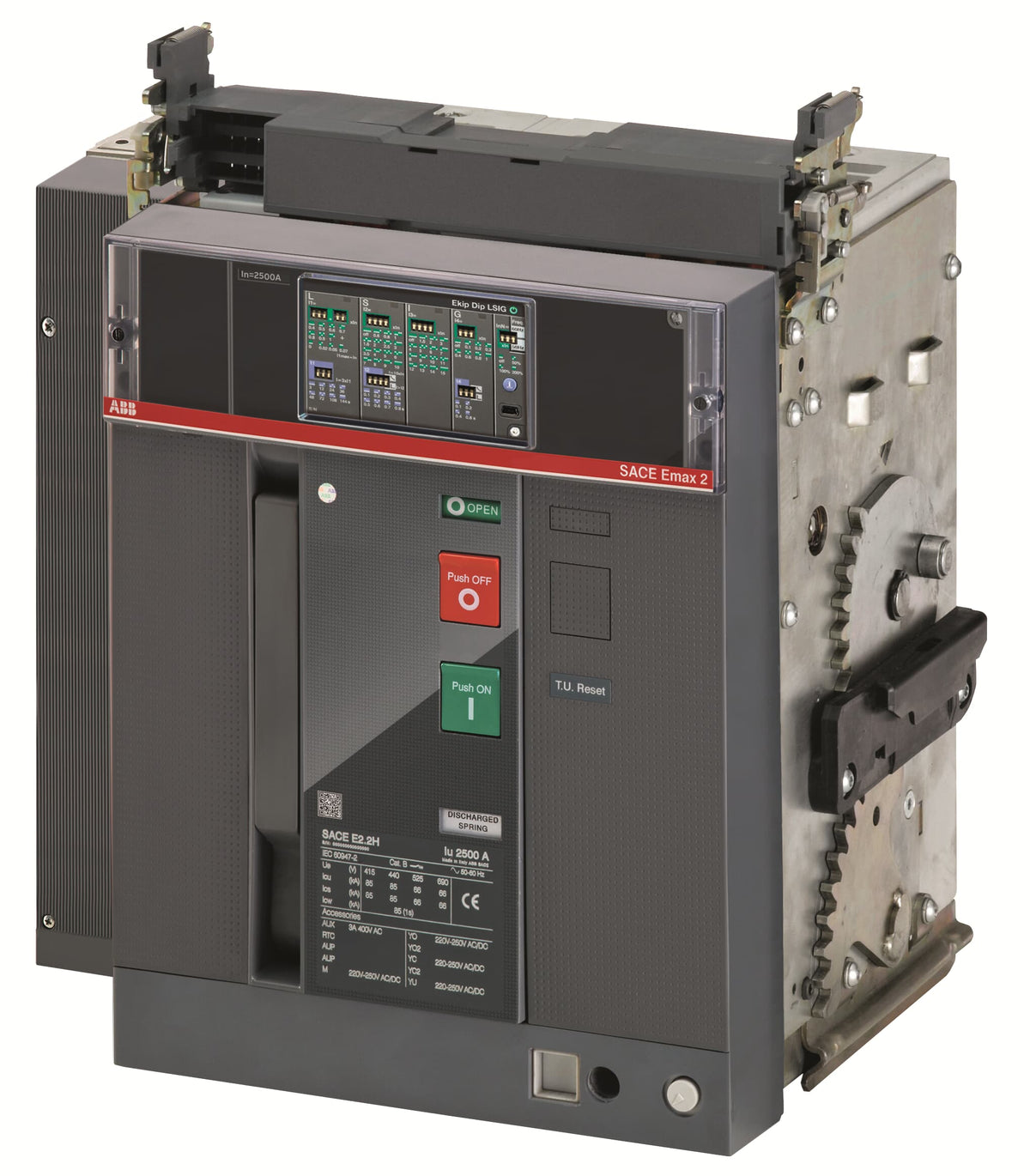

The ABB 1SDA072932R1 is an air circuit breaker moving part: a SACE Emax 2 E2.2N 1250, four-pole, Ekip Dip LSI electronic release, rated 1250 A uninterrupted current and 66 kA breaking capacity at 400 V AC. It ships as a WMP, so a compatible fixed part is a separate purchase before it can be installed.

Technical Specifications

SKU 1SDA072932R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2N 1250 Ekip Dip LSI 4p WMP
EAN 8015644767822
Frame / Performance Level E2.2N (level N)
Poles 4P
Neutral Pole Current 100% of In
Rated Current (In / Iu) 1250 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 66 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 66 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 66 kA / 1 s, 50 kA / 3 s
Release / Trip Unit Ekip Dip LSI
Connecting Capacity 1200 mm²
Power Loss (per pole) 176 W
Dimensions (W x H x D) 407 x 425 x 383 mm
Net Weight 55 kg
Suitable for IT Networks Yes, up to 690 V

Selection Notes

Carrying the S function, this Ekip Dip LSI release can be set with a short-time delay so the breaker rides through a downstream fault and lets a smaller device clear it first — the reason to choose it over the plain LI release wherever this unit needs to coordinate selectively with other breakers on the installation. 66 kA Icu and 66 kA Icw for 1 second mark it as the N performance level, a lower fault-current rating than the H-level E2.2 frame and typically the lower-cost option when the switchboard's available fault current does not require it. As a WMP, order the matching fixed part separately; together they form a withdrawable breaker that can be pulled for maintenance without touching the wiring. At 1250 A this sits below the 1600 A and 2000 A E2.2N siblings in the same release and pole count.

Technical Details

Short Description
ABB 1SDA072932R1 - SACE Emax 2 E2.2N 1250A 4P, Ekip Dip LSI release, 66 kA Icu, withdrawable moving part (cradle sold separately).
Rated Current (Ampere)
1250
Breaking Capacity (kA)
66 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2N 1250 Ekip Dip LSI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E2.2N 1250 Ekip Dip LSI 4p WMP
Tariff Code
853620
