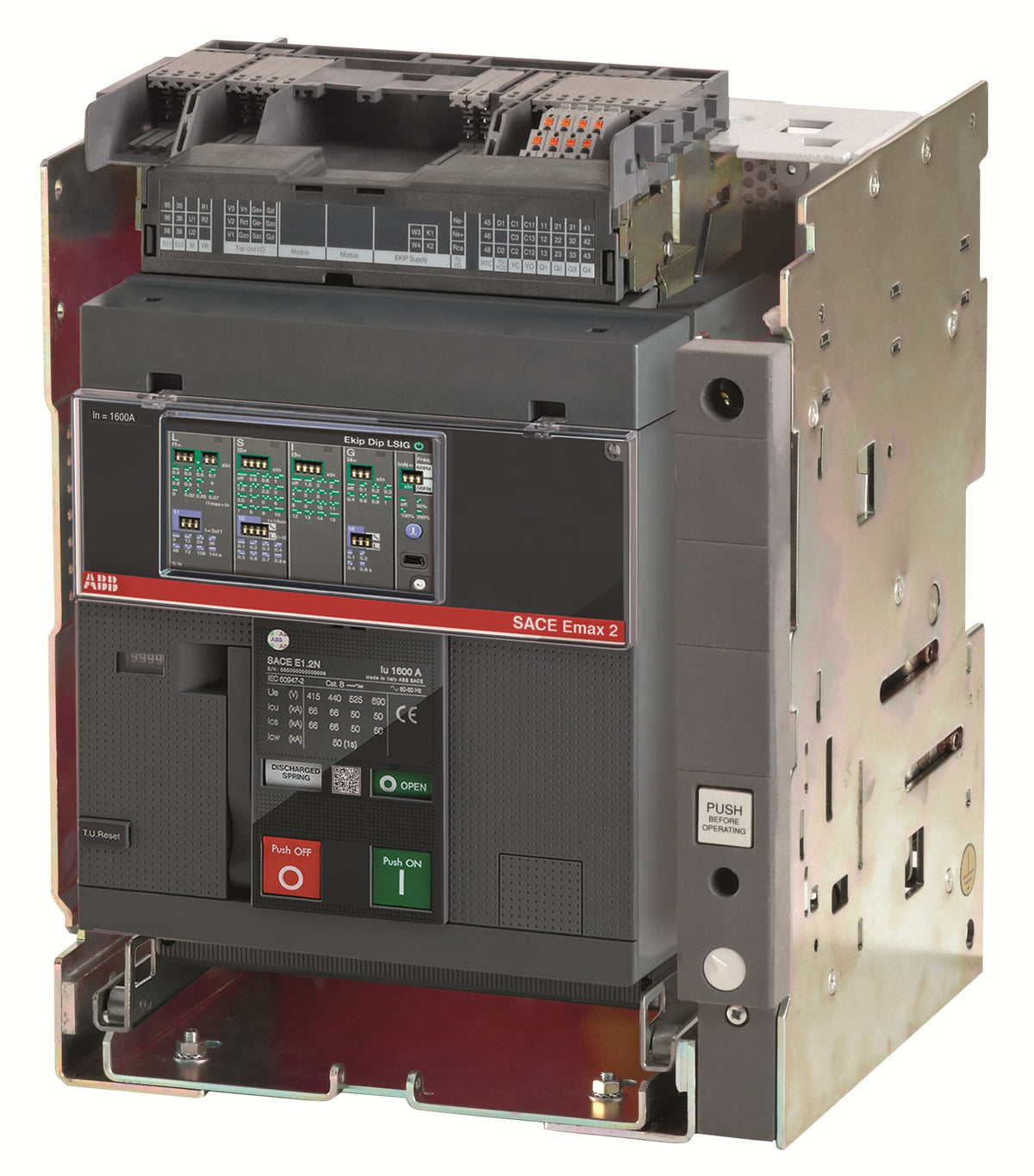

ABB 1SDA072741R1 E1.2N 800 Ekip Dip LI 4p WMP 66kA Air Circuit Breaker

% $-3,414.17
ABB 1SDA072741R1 E1.2N 800 Ekip Dip LI 4p WMP Air Circuit Breaker - 66 kA
ABB 1SDA072741R1 E1.2N 800 Ekip Dip LI 4p WMP Air Circuit Breaker - 66 kA

ABB 1SDA072741R1 E1.2N 800 Ekip Dip LI 4p WMP 66kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072741R1
Catalog No: E1.2N 800 Ekip Dip LI 4p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 800
Breaking Capacity: 66 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,414.17

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Order code 1SDA072741R1 is the ABB SACE Emax 2 E1.2N 800 Ekip Dip LI 4p WMP, a four-pole withdrawable moving part rated 800 A (Iu) with a 66 kA ultimate breaking capacity (Icu) at 400 V AC. It supplies the drawout truck only — a compatible fixed part and cradle must already be in place for the breaker to operate.

Technical Specifications

SKU 1SDA072741R1
Brand ABB
Series SACE Emax 2
Catalog Designation E1.2N 800 Ekip Dip LI 4p WMP
EAN 8015644765910
Number of Poles 4P
Neutral Pole Current 100% of Iu
Rated Current (In / Iu) 800 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 66 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 50 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 50 kA / 1 s, 30 kA / 3 s
Release / Trip Unit Ekip Dip LI
Short-Circuit Performance Level N
Connecting Capacity 500 mm²
Mounting Withdrawable (moving part only — fixed part/cradle ordered separately)
Current Type AC
Suitable for IT Networks Yes, up to 690 V
Power Loss 100 W
Net Dimensions (W x H x D) 348 x 363.5 x 271 mm
Net Weight 20 kg

Selection Notes

With no short-time delay (S) stage, Ekip Dip LI opens on the first instantaneous (I) or overload (L) trip rather than holding for a downstream breaker, which points this moving part at a final feeder position behind the cradle rather than a selectively coordinated main. The fourth pole carries 100% of Iu for four-wire distribution, and 800 A places it between the 630 A and 1000 A E1.2N WMP siblings — step up to the 1000 A truck if the circuit current exceeds this rating.

Technical Details

Short Description
ABB SACE Emax 2 E1.2N 800 Ekip Dip LI 4p WMP moving part, 800 A, 66 kA Icu at 400 V AC, withdrawable.
Rated Current (Ampere)
800
Breaking Capacity (kA)
66 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E1.2N 800 Ekip Dip LI 4p WMP
Number of Poles
4P
Delivery Date (Days)
30 days
Model Number
E1.2N 800 Ekip Dip LI 4p WMP
Tariff Code
853620
