SACE Emax 2 E6.2V ACB, 5000 A, 150 kA Icu, 3-pole, Ekip Dip LI, WMP.

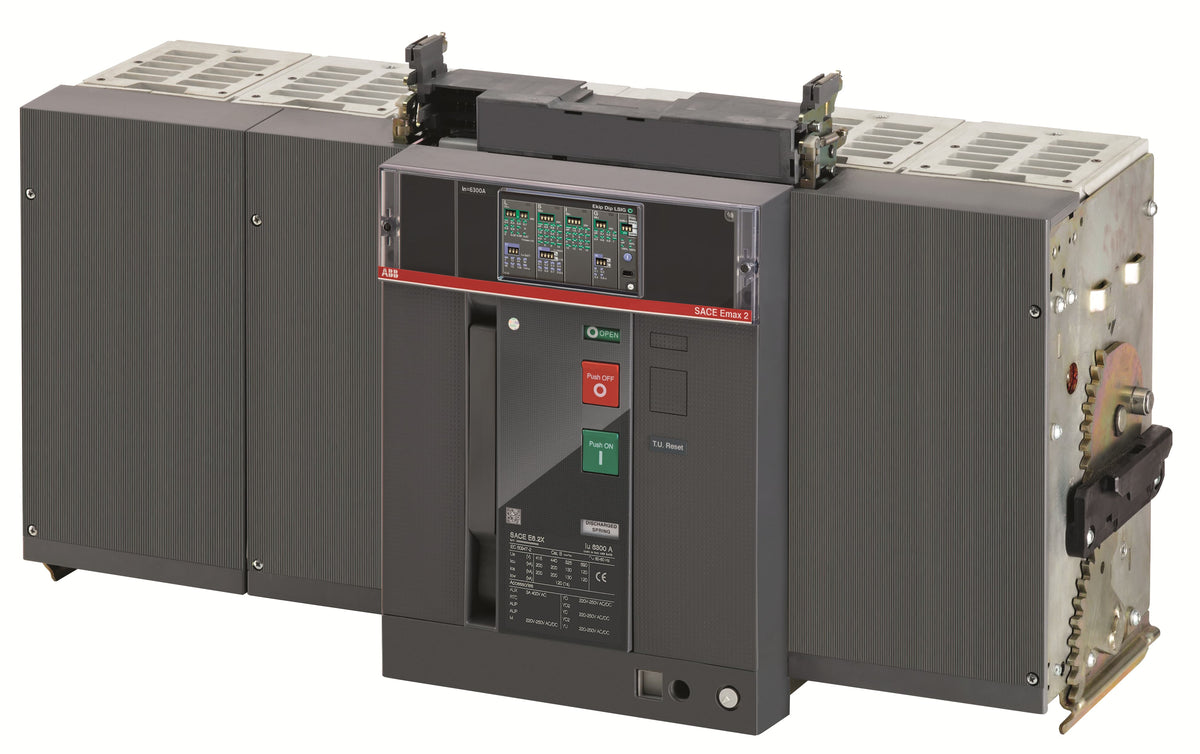

The ABB 1SDA072621R1 is the E6.2V 5000 Ekip Dip LI 3p WMP moving part for the SACE Emax 2 E6.2V air circuit breaker — a withdrawable insert rated 5000 A with a 150 kA breaking capacity at 400 V AC, built for 3-pole, 690 V AC drawout switchboards. It carries the Ekip Dip LI electronic release and replaces or stocks the moving element of an already-installed E6.2V cradle.
This WMP is the moving part for the 5000 A, 150 kA E6.2V frame. The Ekip Dip LI release limits it to L (overload, long-time), I (instantaneous) — there is no adjustable short-time delay to hold through a downstream fault. That suits a feeder position where fast, instantaneous clearing is preferred over coordination with a smaller breaker below it; for an incomer or bus-tie needing that coordination, the Ekip Dip LSI sibling at the same 5000 A rating adds the S function. Its V-class short-circuit performance level raises Icu to 150 kA between 400 and 440 V AC, tapering to 130 kA at 500-525 V and 100 kA at 690 V — specify it over the H-class sibling's flat 100 kA only when the calculated prospective fault current calls for that extra margin.
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
| Product Net Width | 803 mm |
|---|---|
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 120 kg |
| Product Main Type | SACE Emax 2 |
|---|---|
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Part number | 1SDA072621R1 |
|---|---|
| Type designation | E6.2V |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 8015644764715 |
| ETIM class | EC000228 |
| eCl@ss | 27370409 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Connecting Capacity | 5000 mm² |
|---|---|
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 3000 cycle, Ue = 500 ... 690 V 2000 cycle, 10 cycles per hour |
| Mechanical Durability | 12000 cycle, 60 cycles per hour |
| Number of Poles | 3P |
| Power Loss | 850 W |
| Rated Current (In) | 5000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA, (230 V AC) 150 kA, (380 V AC) 150 kA, (400 V AC) 150 kA, (415 V AC) 150 kA, (440 V AC) 150 kA, (500 V AC) 130 kA, (660 V AC) 100 kA, (690 V AC) 100 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA, for 3 s 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA, (415 V AC) 150 kA, (440 V AC) 150 kA, (500 V AC) 130 kA, (525 V AC) 130 kA, (690 V AC) 100 kA |
| Rated Uninterrupted Current (Iu) | 5000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E6.2 |
| Suitable for IT Networks | Yes, 690V |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
|---|---|
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1000 mm |
| Package Level 1 Gross Weight | 129 kg |
| Package Level 1 EAN | 8015644764715 |
| Shipping weight | 120.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 02 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of E6.2V is 5000 A.
The rated operational voltage of E6.2V is 690 V AC.
The tariff (HS) code on file for E6.2V is 853620.
The EAN (GTIN) of E6.2V is 8015644764715.
E6.2V ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
