Part number
1SDA072552R1
Model no
E4.2S
$9,162.81 On request Dispatch — · From TürkiyeGet a Quote

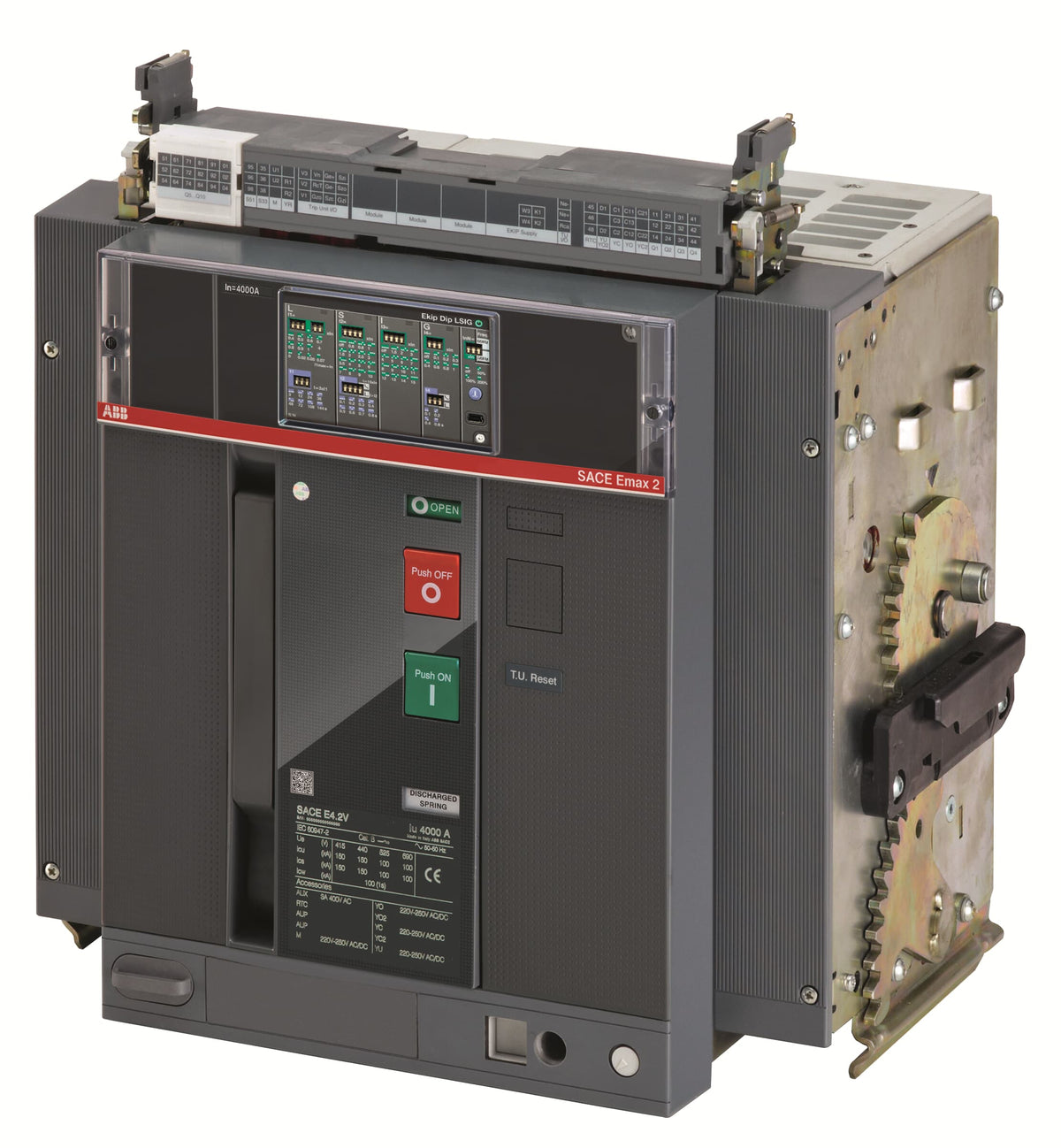

ABB 1SDA072552R1 E4.2S 4000 Ekip Dip LSI 3p WMP 85kA Air Circuit Breaker

ABB 1SDA072552R1 - SACE Emax 2 E4.2S air circuit breaker, Ekip Dip LSI, 3-pole, WMP, 4000 A, 85 kA Icu at 400 V AC.

Rated current
4000 A
Rated operational voltage
690 V AC
Poles
3P
Breaking capacity
85 kA
EAN
8015644764029
Description

About the E4.2S

The ABB 1SDA072552R1 is the withdrawable moving part of a SACE Emax 2 E4.2S air circuit breaker, supplied without its fixed part. Three-pole, fitted with an Ekip Dip LSI electronic release, it carries a 4000 A rated current and an 85 kA ultimate breaking capacity (Icu) at 400 V AC.

Selection Notes

The Ekip Dip LSI release combines long-time overload (L), short-time delay (S) and instantaneous (I) protection, so the adjustable S stage lets this breaker hold off tripping long enough for a downstream device to clear a fault first, within its 66 kA Icw rating for 1 s and 3 s. Because 1SDA072552R1 ships as the moving part (WMP) only, it has to be fitted into a separate E4.2 fixed part or withdrawable cradle before it can be installed and racked in or out for isolation. Choose the 4-pole WMP variant instead when the installation needs a switched neutral, or a fixed version when the switchboard does not require drawout isolation.

Specification

Full specification

56 values · Last verified 02 Oct 2026

Material Compliance 1

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Dimensions 4

Product Net Width 425 mm
Product Net Height 425 mm
Product Net Depth / Length 383 mm
Product Net Weight 60 kg

Additional Information 4

Product Main Type SACE Emax 2
Product Name Air Circuit Breaker
Product Type Air Circuit Breaker
Version W
Show all 56 specifications ↓ Show less ↑47 more values in Identification, Technical, External Classifications and Standards, Logistics.

Identification 11

Part number 1SDA072552R1
Type designation E4.2S
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 8015644764029
ETIM class EC000228
eCl@ss 27370409
Minimum Order Quantity 1 piece
Customs Tariff Number 85362090

Technical 23

Connecting Capacity 4000 mm²
Current Type AC
Electrical Durability Ue =< 440 V 5000 cycle, Ue = 500 ... 690 V 4000 cycle, 20 cycles per hour
Mechanical Durability 15000 cycle, 60 cycles per hour
Number of Poles 3P
Power Loss 900 W
Rated Current (In) 4000 A
Rated Impulse Withstand Voltage (Uimp) acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui) AC 1000 V
Rated Operational Voltage 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) (220 V AC) 85 kA, (230 V AC) 85 kA, (380 V AC) 85 kA, (400 V AC) 85 kA, (415 V AC) 85 kA, (440 V AC) 85 kA, (500 V AC) 66 kA, (660 V AC) 66 kA, (690 V AC) 66 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) 100 %
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 66 kA, for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (400 V AC) 85 kA, (415 V AC) 85 kA, (440 V AC) 85 kA, (500 V AC) 66 kA, (525 V AC) 66 kA, (690 V AC) 66 kA
Rated Uninterrupted Current (Iu) 4000 A
Rated Voltage (Ur) 690 V
Recommended Screw Driver M12
Release Ekip Dip LSI
Release Type EL
Short-Circuit Performance Level S
Standards IEC
Sub-type E4.2
Suitable for IT Networks Yes, 690V

External Classifications and Standards 3

ETIM 10 EC000228 - Power circuit-breaker for trafo/generator/installation protection
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
eClass V11.1 : 27370409

Logistics 10

Package Level 1 Units box 1 piece
Package Level 1 Width 515 mm
Package Level 1 Height 610 mm
Package Level 1 Depth / Length 615 mm
Package Level 1 Gross Weight 67 kg
Package Level 1 EAN 8015644764029
Shipping weight 60.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 02 Oct 2026
