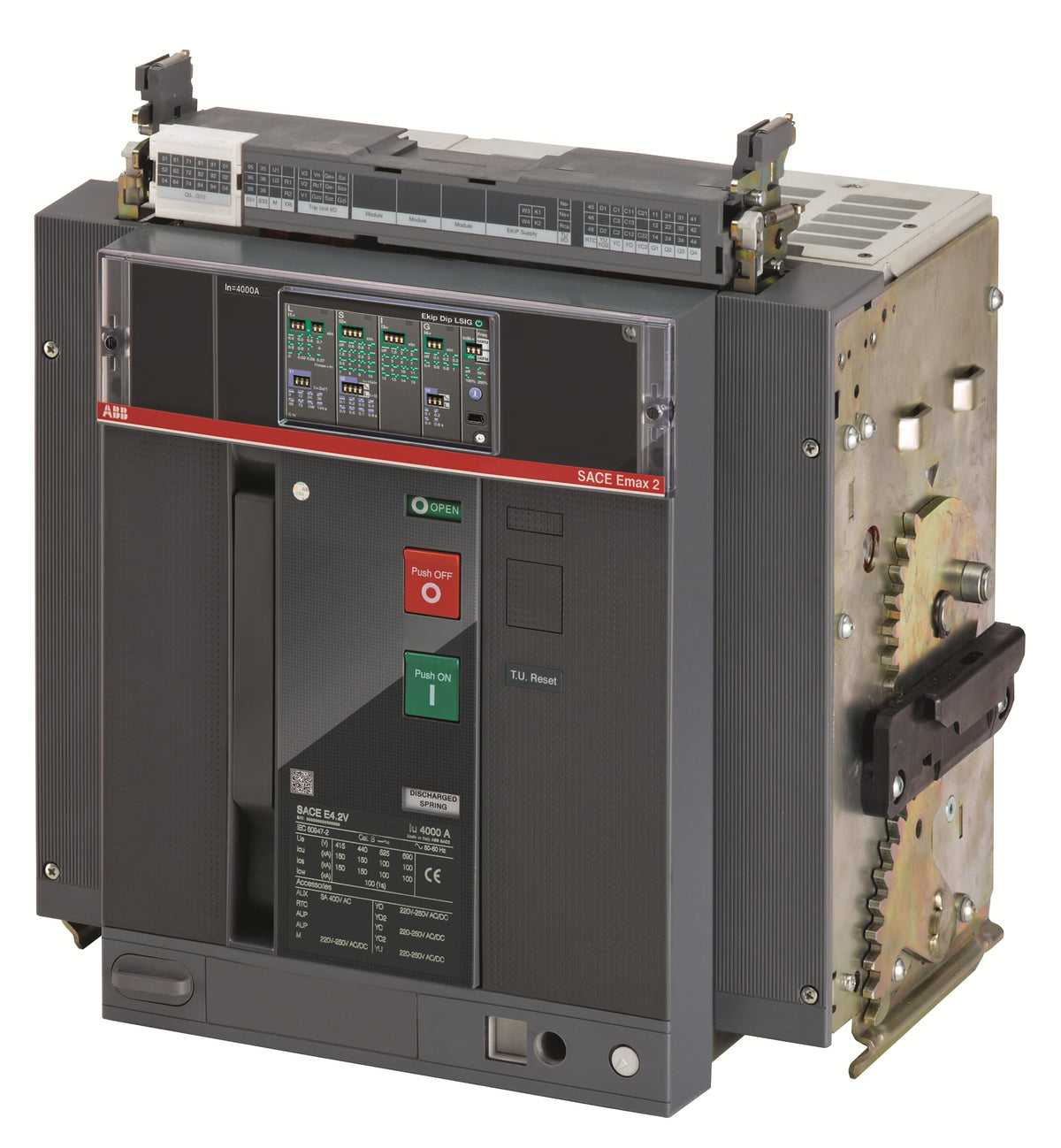

ABB 1SDA072512R1 E4.2H 3200 Ekip Dip LSI 3p WMP 100kA Air Circuit Breaker

% $-6,660.64
ABB 1SDA072512R1 E4.2H 3200 Ekip Dip LSI 3p WMP Air Circuit Breaker - 100kA
ABB 1SDA072512R1 E4.2H 3200 Ekip Dip LSI 3p WMP Air Circuit Breaker - 100kA

ABB 1SDA072512R1 E4.2H 3200 Ekip Dip LSI 3p WMP 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072512R1
Catalog No: E4.2H 3200 Ekip Dip LSI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 3200
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$6,660.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA072512R1 moving part sits in the E4.2H 3200 Ekip Dip LSI line of the SACE Emax 2 range, rated 100 kA ultimate breaking capacity at 400 V AC across three poles. The LSI release combines overload, adjustable short-time, and instantaneous protection in the largest Emax 2 frame.

Technical Specifications

SKU 1SDA072512R1
Brand ABB
Series SACE Emax 2
Catalog Designation E4.2H 3200 Ekip Dip LSI 3p WMP
EAN 8015644763626
Frame E4.2
Breaking Capacity Performance Level H
Rated Current (In) 3200 A
Number of Poles 3P
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 100 kA
Service Breaking Capacity (Ics, 400 V AC) 100 kA (100% of Icu)
Short-Time Withstand Current (Icw) 85 kA for 1 s / 66 kA for 3 s
Release / Trip Unit Ekip Dip LSI
Version Withdrawable moving part (WMP) - separate fixed part/cradle required
Connecting Capacity 3000 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 743 W
Net Weight 60 kg
Dimensions (W x H x D) 425 x 425 x 383 mm

Selection Notes

The adjustable short-time stage lets this breaker stay closed through a downstream fault on a timed delay, supporting a main-incomer role at 3200 A ahead of smaller selectively coordinated breakers - the LI-only 1SDA072511R1 in the same WMP, H-level frame trips instantaneously instead. Icu of 100 kA and Icw of 85 kA/1 s are the highest ratings available in the Emax 2 range at 400 V AC. As a WMP unit it requires a matching E4.2 fixed part already installed in the switchboard before it can be racked in.

Technical Details

Short Description
ABB 1SDA072512R1 - SACE Emax 2 E4.2H 3200 Ekip Dip LSI 3p WMP, 3200 A, 100 kA Icu at 400 V AC, withdrawable moving part.
Rated Current (Ampere)
3200
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable (Moving Part Only - WMP)
Catalog No
E4.2H 3200 Ekip Dip LSI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E4.2H 3200 Ekip Dip LSI 3p WMP
Tariff Code
853620
