ABB 1SDA072432R1 E2.2H 2500 Ekip Dip LSI 3p WMP 100kA Air Circuit Breaker

% $-5,543.92

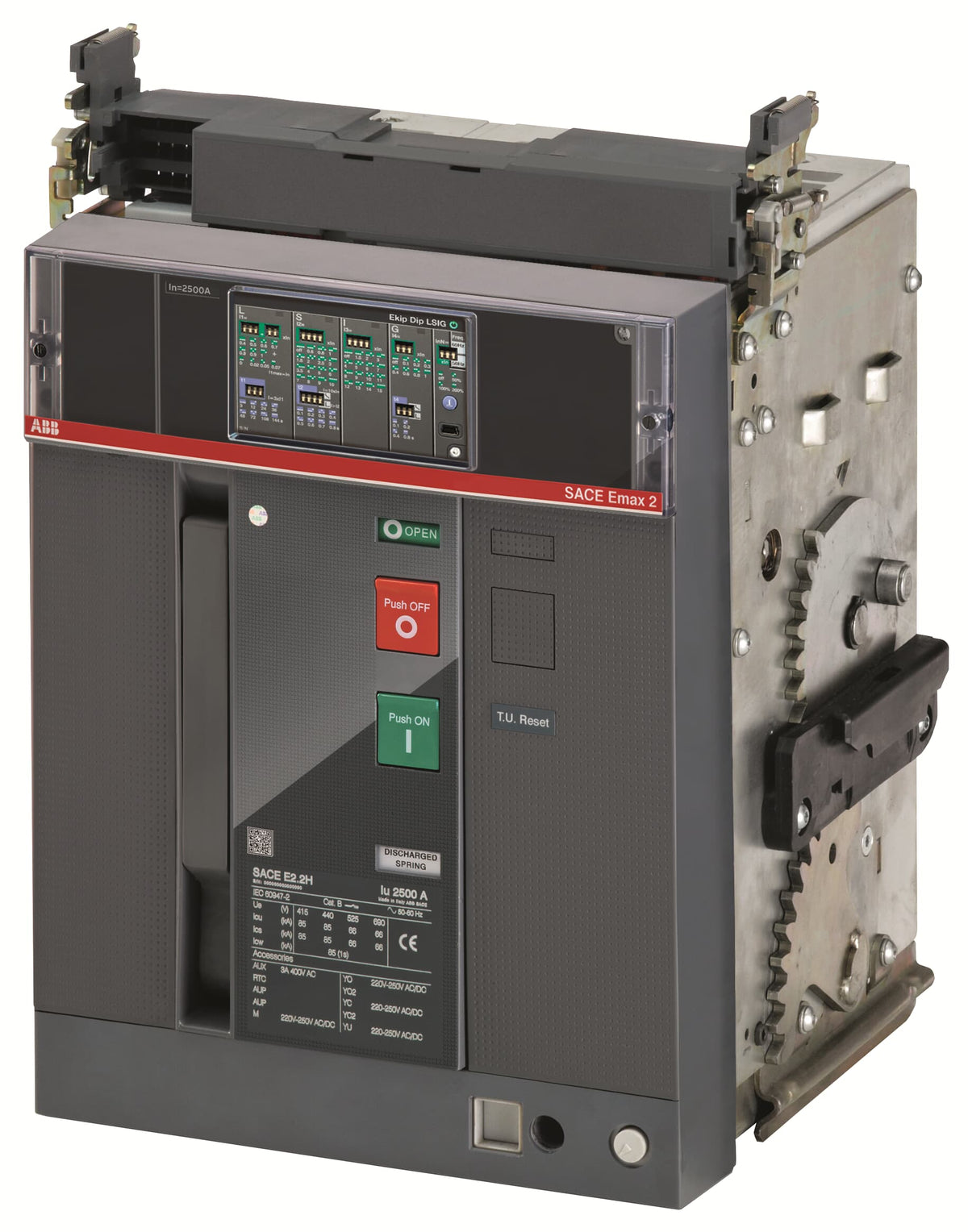

ABB 1SDA072432R1 E2.2H 2500 Ekip Dip LSI 3p WMP air circuit breaker moving part
ABB 1SDA072432R1 E2.2H 2500 Ekip Dip LSI 3p WMP air circuit breaker moving part

ABB 1SDA072432R1 E2.2H 2500 Ekip Dip LSI 3p WMP 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072432R1
Catalog No: E2.2H 2500 Ekip Dip LSI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2500
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5,543.92

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

1SDA072432R1 is the withdrawable moving part of an ABB SACE Emax 2 E2.2H 2500 air circuit breaker, three-pole, with the Ekip Dip LSI electronic release, 2500 A uninterrupted current and 100 kA breaking capacity at 400 V AC. As a WMP it does not include the fixed part, which must be ordered separately for installation.

Technical Specifications

SKU 1SDA072432R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2H 2500 Ekip Dip LSI 3p WMP
EAN 8015644762827
Frame / Performance Level E2.2H (level H)
Poles 3P
Rated Current (In / Iu) 2500 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 100 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 100 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 85 kA / 1 s, 66 kA / 3 s
Release / Trip Unit Ekip Dip LSI
Connecting Capacity 1800 mm²
Power Loss (per pole) 550 W
Dimensions (W x H x D) 317 x 425 x 383 mm
Net Weight 48 kg
Suitable for IT Networks Yes, up to 690 V

Selection Notes

The S function in Ekip Dip LSI allows a settable short-time delay alongside L and I protection, so this breaker can hold off tripping on a downstream fault and let a smaller device clear it first — worth specifying wherever this unit backs up other Emax 2 breakers further down the installation. At 2500 A it is the top current rating in this E2.2H series among the parts covered here, keeping the same 100 kA Icu as the lower-current siblings. The WMP designation means the fixed part ships separately; pairing both is what makes the breaker withdrawable for maintenance without disconnecting panel wiring. Choose the LI release on the same frame and current if that short-time grading is not needed.

Technical Details

Short Description
ABB 1SDA072432R1 - SACE Emax 2 E2.2H 2500A 3P, Ekip Dip LSI release, 100 kA Icu, withdrawable moving part (cradle sold separately).
Rated Current (Ampere)
2500
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2H 2500 Ekip Dip LSI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2H 2500 Ekip Dip LSI 3p WMP
Tariff Code
853620
