ABB 1SDA072431R1 E2.2H 2500 Ekip Dip LI 3p WMP 100kA Air Circuit Breaker

% $-5,436.00

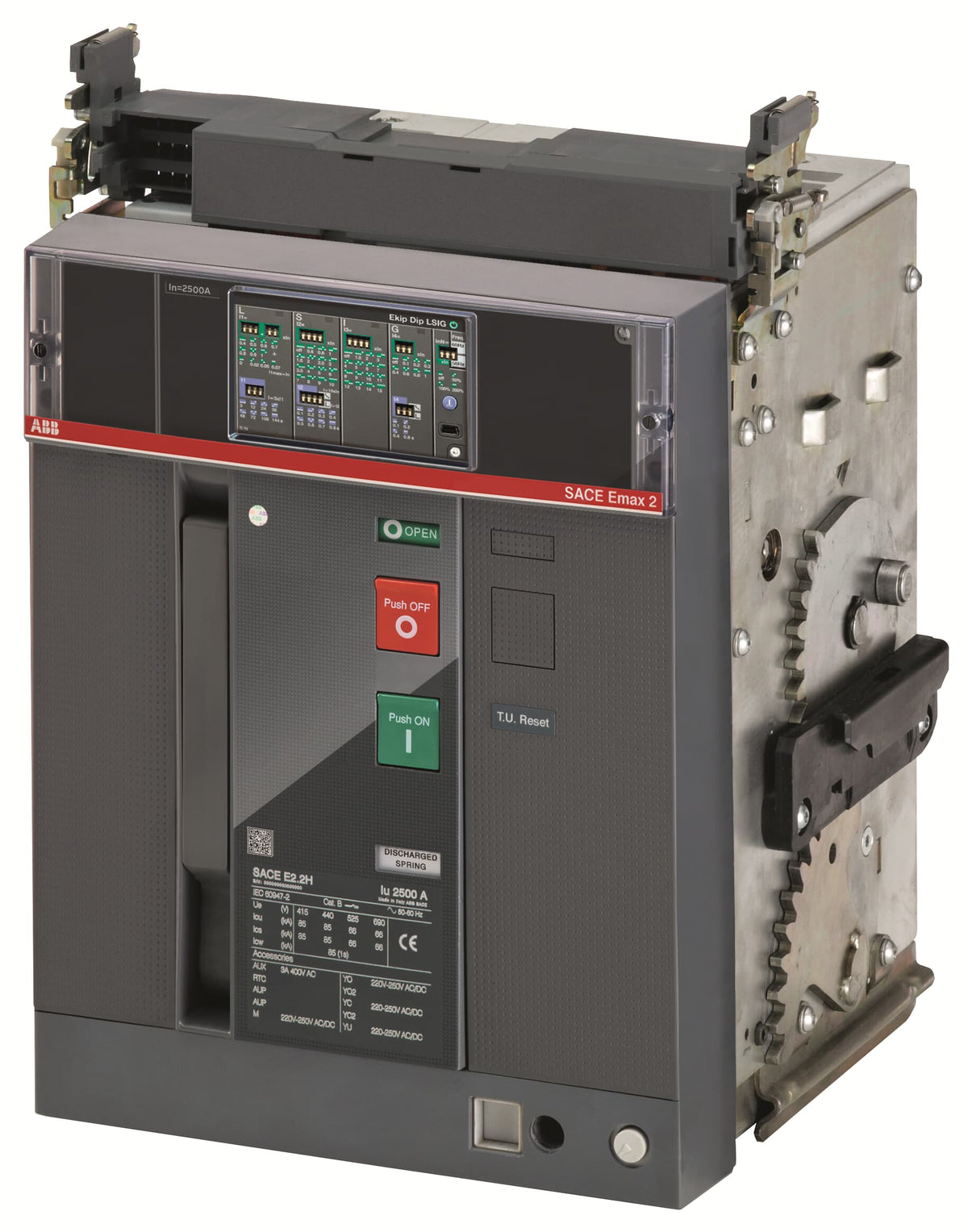

ABB 1SDA072431R1 E2.2H 2500 Ekip Dip LI 3p WMP air circuit breaker moving part
ABB 1SDA072431R1 E2.2H 2500 Ekip Dip LI 3p WMP air circuit breaker moving part

ABB 1SDA072431R1 E2.2H 2500 Ekip Dip LI 3p WMP 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072431R1
Catalog No: E2.2H 2500 Ekip Dip LI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2500
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$5,436.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA072431R1 is the withdrawable moving part of a SACE Emax 2 E2.2H 2500 air circuit breaker, three-pole, with the Ekip Dip LI electronic release. Its uninterrupted current is 2500 A and its breaking capacity is 100 kA at 400 V AC; being a WMP, it needs a compatible fixed part ordered separately before it can be installed.

Technical Specifications

SKU 1SDA072431R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2H 2500 Ekip Dip LI 3p WMP
EAN 8015644762810
Frame / Performance Level E2.2H (level H)
Poles 3P
Rated Current (In / Iu) 2500 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 100 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 100 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 85 kA / 1 s, 66 kA / 3 s
Release / Trip Unit Ekip Dip LI
Connecting Capacity 1800 mm²
Power Loss (per pole) 550 W
Dimensions (W x H x D) 317 x 425 x 383 mm
Net Weight 48 kg
Suitable for IT Networks Yes, up to 690 V

Selection Notes

This Ekip Dip LI release has no S short-time delay, so it clears a fault immediately instead of holding off for a downstream breaker — a sound fit where it is the sole protection on the circuit or discrimination with a smaller Emax 2 further down the system is not required. At 2500 A, it is the highest In in the E2.2H frame among this set of siblings, with the same 100 kA Icu and 85 kA Icw (1 s) as the 1600 A and 2000 A variants on the same frame. As a WMP, order the matching fixed part separately; that pairing is what delivers a withdrawable breaker for servicing without disturbing the panel wiring. Pick the LSI release on the same frame and current instead if selective coordination with downstream devices is required.

Technical Details

Short Description
ABB 1SDA072431R1 - SACE Emax 2 E2.2H 2500A 3P, Ekip Dip LI release, 100 kA Icu, withdrawable moving part (cradle sold separately).
Rated Current (Ampere)
2500
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2H 2500 Ekip Dip LI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2H 2500 Ekip Dip LI 3p WMP
Tariff Code
853620
