ABB 1SDA072402R1 E2.2H 2000 Ekip Dip LSI 3p WMP 100kA Air Circuit Breaker

% $-4,529.30

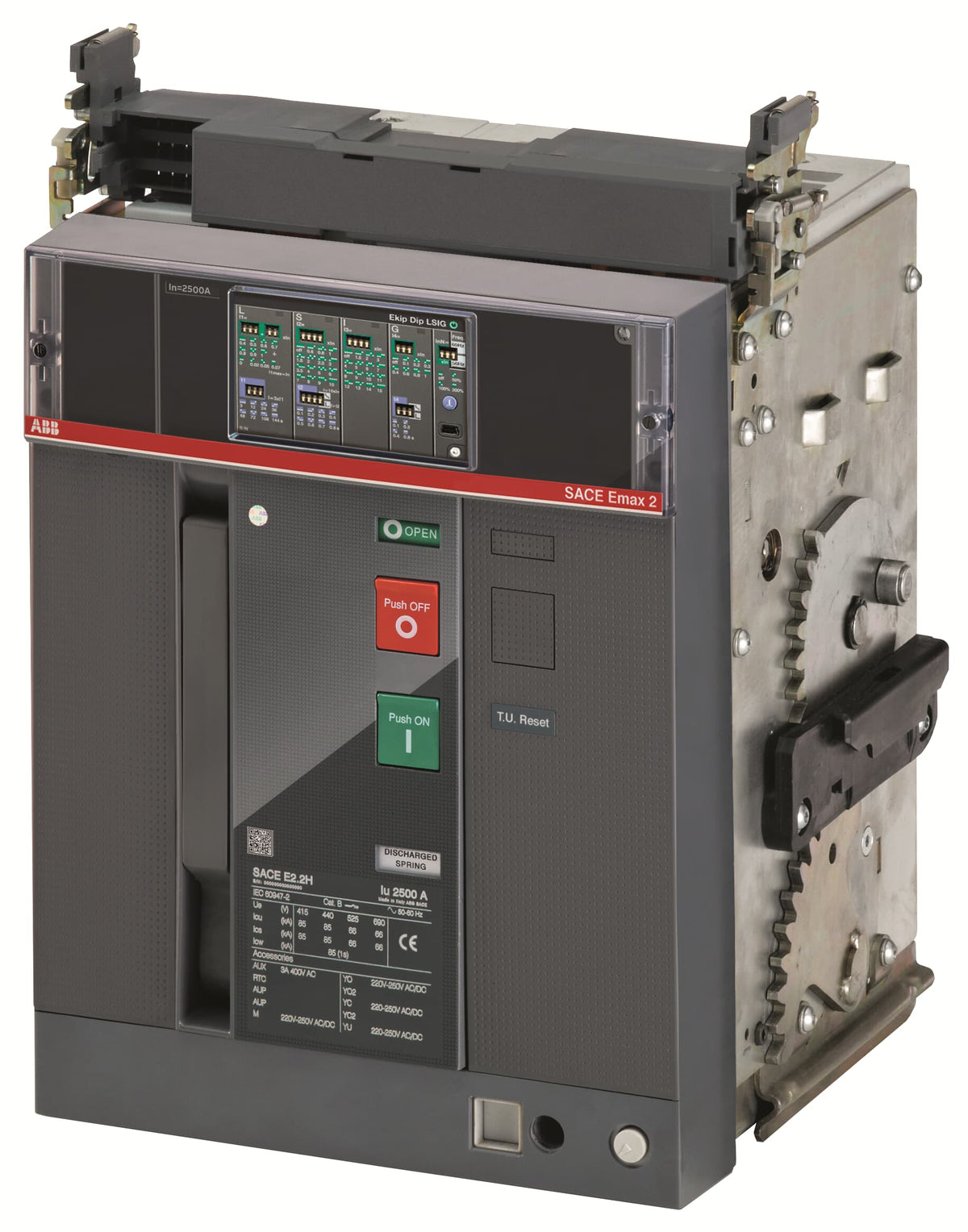

ABB 1SDA072402R1 E2.2H 2000 Ekip Dip LSI 3p WMP air circuit breaker moving part
ABB 1SDA072402R1 E2.2H 2000 Ekip Dip LSI 3p WMP air circuit breaker moving part

ABB 1SDA072402R1 E2.2H 2000 Ekip Dip LSI 3p WMP 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072402R1
Catalog No: E2.2H 2000 Ekip Dip LSI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2000
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,529.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Part number 1SDA072402R1 is the withdrawable moving part of an ABB SACE Emax 2 E2.2H 2000 air circuit breaker, three-pole, with the Ekip Dip LSI electronic release, 2000 A uninterrupted current and 100 kA breaking capacity at 400 V AC. It is a WMP, so a matching fixed part (cradle) must be purchased separately to complete the installation.

Technical Specifications

SKU 1SDA072402R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2H 2000 Ekip Dip LSI 3p WMP
EAN 8015644762520
Frame / Performance Level E2.2H (level H)
Poles 3P
Rated Current (In / Iu) 2000 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 100 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 100 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 85 kA / 1 s, 66 kA / 3 s
Release / Trip Unit Ekip Dip LSI
Connecting Capacity 1800 mm²
Power Loss (per pole) 450 W
Dimensions (W x H x D) 317 x 425 x 383 mm
Net Weight 48 kg
Suitable for IT Networks Yes, up to 690 V

Selection Notes

Because the release is Ekip Dip LSI, this breaker has the S short-time delay in addition to L and I protection, so it can be set to ride through a downstream fault long enough for a smaller breaker to clear it first; that is the deciding factor when this breaker sits upstream of other Emax 2 units in a selective scheme. 100 kA Icu and 85 kA Icw for 1 second confirm the H performance level, built for higher available fault currents than the N-level frame. The WMP designation means only the moving part is included here — a compatible fixed part is required separately, and the pairing is what lets the breaker be drawn out for servicing without disturbing cabling. For a switched neutral, the 4-pole WMP in the same frame and current is the one to pick instead.

Technical Details

Short Description
ABB 1SDA072402R1 - SACE Emax 2 E2.2H 2000A 3P, Ekip Dip LSI release, 100 kA Icu, withdrawable moving part (cradle sold separately).
Rated Current (Ampere)
2000
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2H 2000 Ekip Dip LSI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2H 2000 Ekip Dip LSI 3p WMP
Tariff Code
853620
