ABB 1SDA072401R1 E2.2H 2000 Ekip Dip LI 3p WMP 100kA Air Circuit Breaker

% $-4,401.28

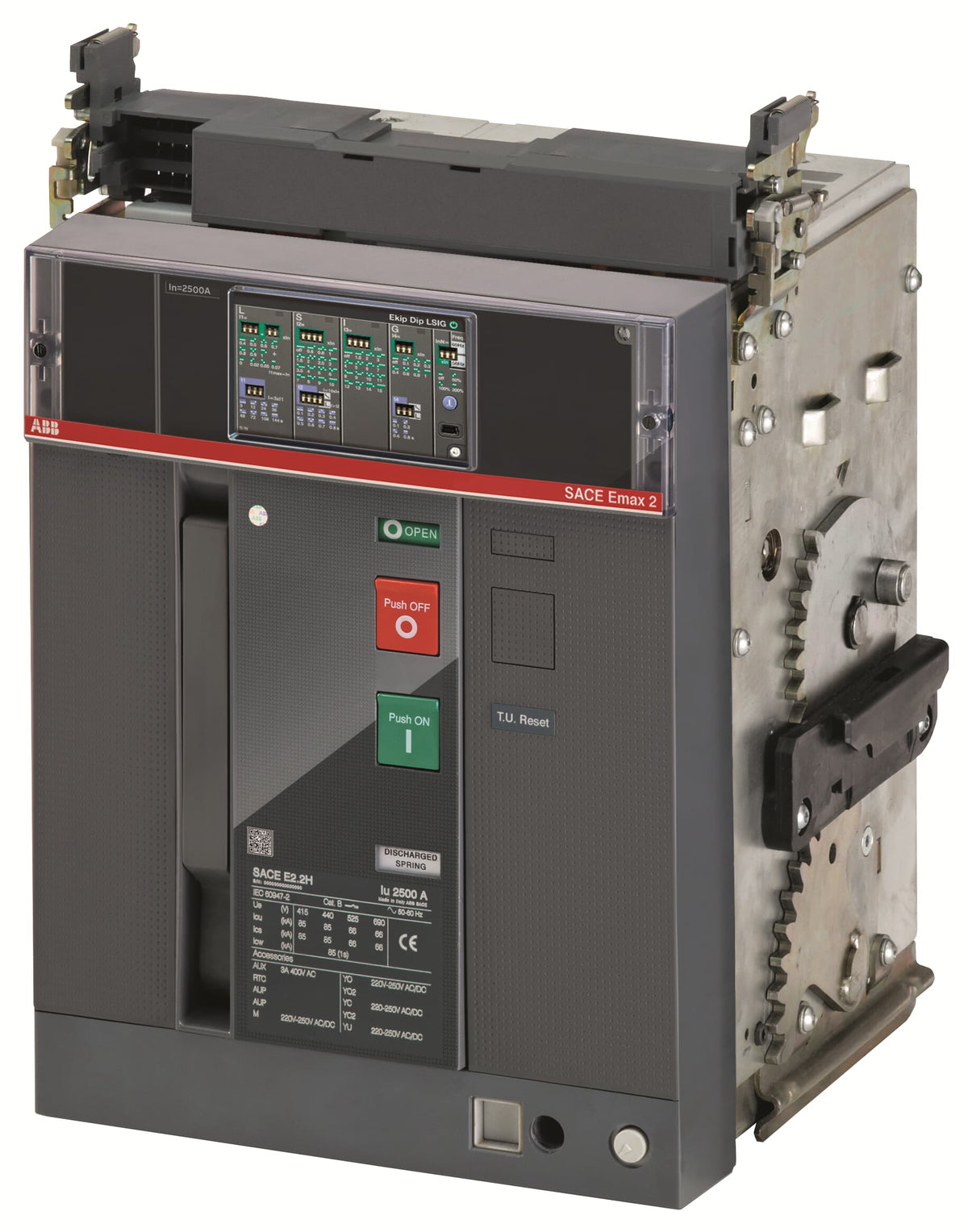

ABB 1SDA072401R1 E2.2H 2000 Ekip Dip LI 3p WMP air circuit breaker moving part
ABB 1SDA072401R1 E2.2H 2000 Ekip Dip LI 3p WMP air circuit breaker moving part

ABB 1SDA072401R1 E2.2H 2000 Ekip Dip LI 3p WMP 100kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072401R1
Catalog No: E2.2H 2000 Ekip Dip LI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2000
Breaking Capacity: 100 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,401.28

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

1SDA072401R1 is the moving part of an ABB SACE Emax 2 E2.2H 2000 air circuit breaker, three-pole, with the Ekip Dip LI electronic release, rated for 2000 A uninterrupted current and 100 kA breaking capacity at 400 V AC. Supplied as a WMP, it does not include the fixed part and cannot be installed in a panel without a matching cradle.

Technical Specifications

SKU 1SDA072401R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2H 2000 Ekip Dip LI 3p WMP
EAN 8015644762513
Frame / Performance Level E2.2H (level H)
Poles 3P
Rated Current (In / Iu) 2000 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 100 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 100 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 85 kA / 1 s, 66 kA / 3 s
Release / Trip Unit Ekip Dip LI
Connecting Capacity 1800 mm²
Power Loss (per pole) 450 W
Dimensions (W x H x D) 317 x 425 x 383 mm
Net Weight 48 kg
Suitable for IT Networks Yes, up to 690 V

Selection Notes

With no S function, Ekip Dip LI trips instantaneously on a short-circuit rather than holding off for a downstream breaker to clear it first, which is appropriate where this unit is the only protective device on the circuit or where selective coordination is not a design requirement. The 100 kA Icu / 85 kA Icw (1 s) rating places it on the H performance level, matched to higher prospective short-circuit currents than the N-level frame. Because it is a WMP, order the compatible fixed part separately; the pairing is what lets the breaker be withdrawn for maintenance or testing without removing panel wiring. Step up to the 2500 A sibling in the same frame if the feeder current exceeds this rating.

Technical Details

Short Description
ABB 1SDA072401R1 - SACE Emax 2 E2.2H 2000A 3P, Ekip Dip LI release, 100 kA Icu, withdrawable moving part (cradle sold separately).
Rated Current (Ampere)
2000
Breaking Capacity (kA)
100 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2H 2000 Ekip Dip LI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2H 2000 Ekip Dip LI 3p WMP
Tariff Code
853620
