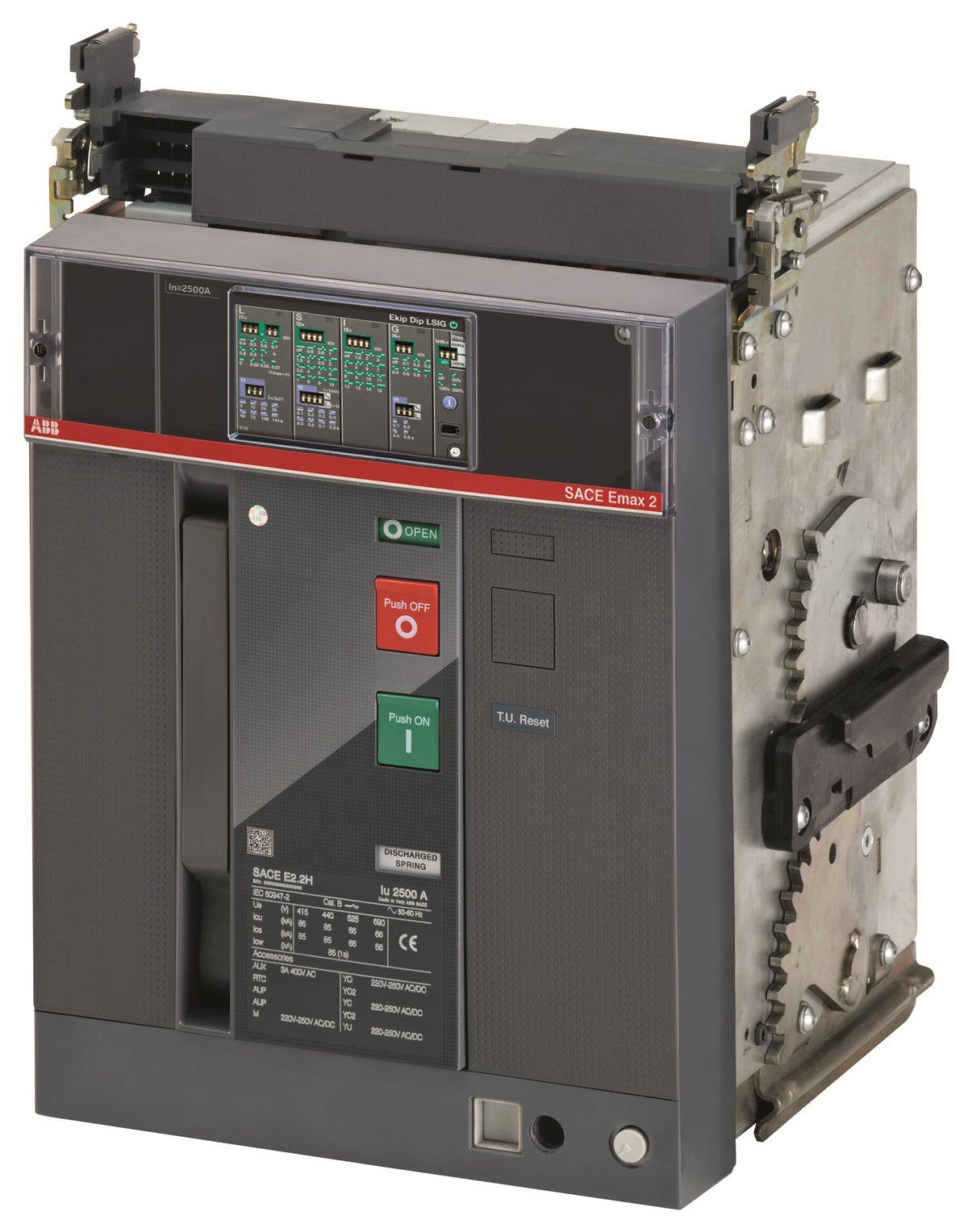

ABB 1SDA072391R1 E2.2S 2000 Ekip Dip LI 3p WMP 85kA Air Circuit Breaker

% $-4,360.55
ABB 1SDA072391R1 E2.2S 2000 Ekip Dip LI 3p WMP Air Circuit Breaker - 85kA
ABB 1SDA072391R1 E2.2S 2000 Ekip Dip LI 3p WMP Air Circuit Breaker - 85kA

ABB 1SDA072391R1 E2.2S 2000 Ekip Dip LI 3p WMP 85kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072391R1
Catalog No: E2.2S 2000 Ekip Dip LI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 2000
Breaking Capacity: 85 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4,360.55

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

Order code 1SDA072391R1 identifies the three-pole moving part of a SACE Emax 2 E2.2S 2000 Ekip Dip LI air circuit breaker: 2000 A rated current and 85 kA ultimate breaking capacity at 400 V AC. The LI release covers long-time overload and instantaneous short-circuit protection without an adjustable short-time stage.

Technical Specifications

SKU 1SDA072391R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2S 2000 Ekip Dip LI 3p WMP
EAN 8015644762414
Frame E2.2
Breaking Capacity Performance Level S
Rated Current (In) 2000 A
Number of Poles 3P
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Ultimate Breaking Capacity (Icu, 400 V AC) 85 kA
Service Breaking Capacity (Ics, 400 V AC) 85 kA (100% of Icu)
Short-Time Withstand Current (Icw) 66 kA for 1 s / 50 kA for 3 s
Release / Trip Unit Ekip Dip LI
Version Withdrawable moving part (WMP) - separate fixed part/cradle required
Connecting Capacity 1800 mm²
Suitable for IT Networks Yes, up to 690 V
Power Loss 450 W
Net Weight 48 kg
Dimensions (W x H x D) 317 x 425 x 383 mm

Selection Notes

The S performance level pushes Icu to 85 kA at 400 V AC, 19 kA above the E2.2N units in the same frame, which matters on boards with a higher prospective short-circuit current than the N-level breakers cover. With an LI release instead of LSI, this breaker trips instantaneously on a short circuit rather than holding a timed short-time delay - choose the LSI-equipped sibling instead where the incomer must stay closed through a downstream fault for selective coordination. As a WMP unit it ships without a fixed part, so a compatible E2.2 cradle must already be installed.

Technical Details

Short Description
ABB 1SDA072391R1 - SACE Emax 2 E2.2S 2000 Ekip Dip LI 3p WMP, 2000 A, 85 kA Icu at 400 V AC, withdrawable moving part.
Rated Current (Ampere)
2000
Breaking Capacity (kA)
85 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable (Moving Part Only - WMP)
Catalog No
E2.2S 2000 Ekip Dip LI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2S 2000 Ekip Dip LI 3p WMP
Tariff Code
853620
