ABB 1SDA072332R1 E2.2B 1600 Ekip Dip LSI 3p WMP 42kA Air Circuit Breaker

% $-3,504.10
ABB 1SDA072332R1 E2.2B 1600 Ekip Dip LSI 3p WMP Air Circuit Breaker - 42 kA Icu
ABB 1SDA072332R1 E2.2B 1600 Ekip Dip LSI 3p WMP Air Circuit Breaker - 42 kA Icu

ABB 1SDA072332R1 E2.2B 1600 Ekip Dip LSI 3p WMP 42kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072332R1
Catalog No: E2.2B 1600 Ekip Dip LSI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 42 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,504.10

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

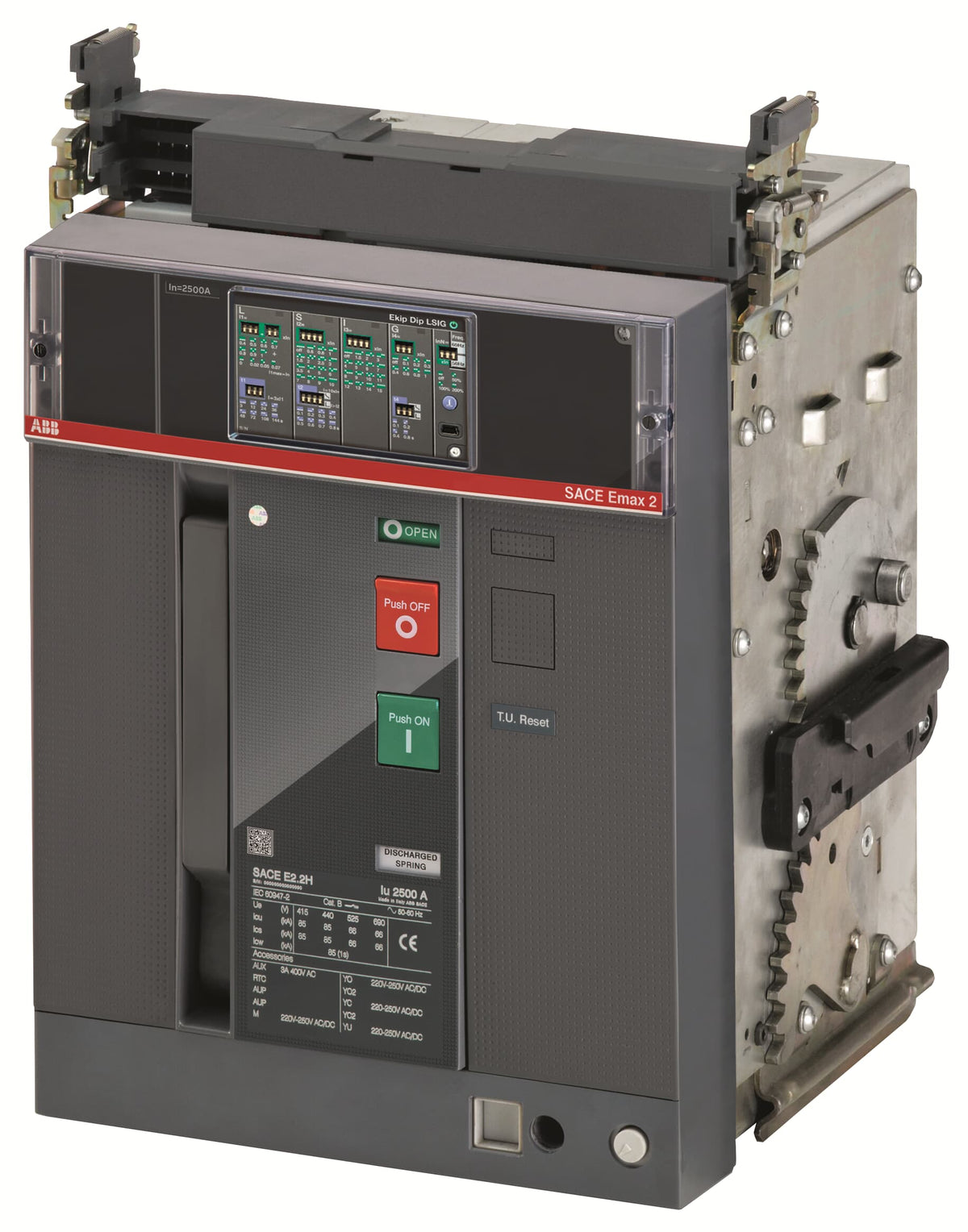

The 1SDA072332R1 is the moving part only of ABB's SACE Emax 2 E2.2B 1600 Ekip Dip LSI three-pole air circuit breaker - a separate fixed part (cradle) is required for installation. Rated current is 1600 A with a 42 kA breaking capacity (Icu) at 400 V AC and a 42 kA short-time withstand for 1 s, matching the fixed F HR version's ratings in withdrawable form.

Technical Specifications

Catalog Designation E2.2B 1600 Ekip Dip LSI 3p WMP
SKU / Order Code 1SDA072332R1
Brand ABB
Series SACE Emax 2 (E2.2 frame, performance level B)
EAN 8015644761820
Number of Poles 3P
Rated Uninterrupted Current (Iu / In) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV, acc. to IEC 60947-2
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 42 kA at 400-690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 42 kA at 220-440 V AC (100% of Icu)
Rated Short-time Withstand Current (Icw) 42 kA for 1 s and 3 s
Release / Trip Unit Ekip Dip LSI (electronic)
Short-Circuit Performance Level B
Version Withdrawable moving part only - requires separate fixed part (cradle)
Connecting Capacity 1200 mm²
Power Loss 288 W
Net Weight 48 kg
Dimensions (W x H x D) 317 x 425 x 383 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

As a WMP (moving part only), this unit ships without a fixed part - it must be installed into a matching Emax 2 E2.2 cradle, making it the right choice when replacing the drawer of an existing withdrawable installation rather than a new fixed panel build. The Ekip Dip LSI release's short-time delay stage lets it coordinate selectively with downstream breakers before tripping on a fault. Breaking capacity stays at 42 kA Icu with a 42 kA Icw held for the full 3 s, matching the fixed three-pole version at the same 1600 A rating.

Technical Details

Short Description
ABB 1SDA072332R1 - SACE Emax 2 E2.2B 1600 Ekip Dip LSI 3p WMP moving part, 1600A, 42 kA Icu.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
42 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2B 1600 Ekip Dip LSI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2B 1600 Ekip Dip LSI 3p WMP
Tariff Code
853620
