ABB 1SDA072331R1 E2.2B 1600 Ekip Dip LI 3p WMP 42kA Air Circuit Breaker

% $-3,300.96
ABB 1SDA072331R1 E2.2B 1600 Ekip Dip LI 3p WMP Air Circuit Breaker - 42 kA
ABB 1SDA072331R1 E2.2B 1600 Ekip Dip LI 3p WMP Air Circuit Breaker - 42 kA

ABB 1SDA072331R1 E2.2B 1600 Ekip Dip LI 3p WMP 42kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072331R1
Catalog No: E2.2B 1600 Ekip Dip LI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 42 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,300.96

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

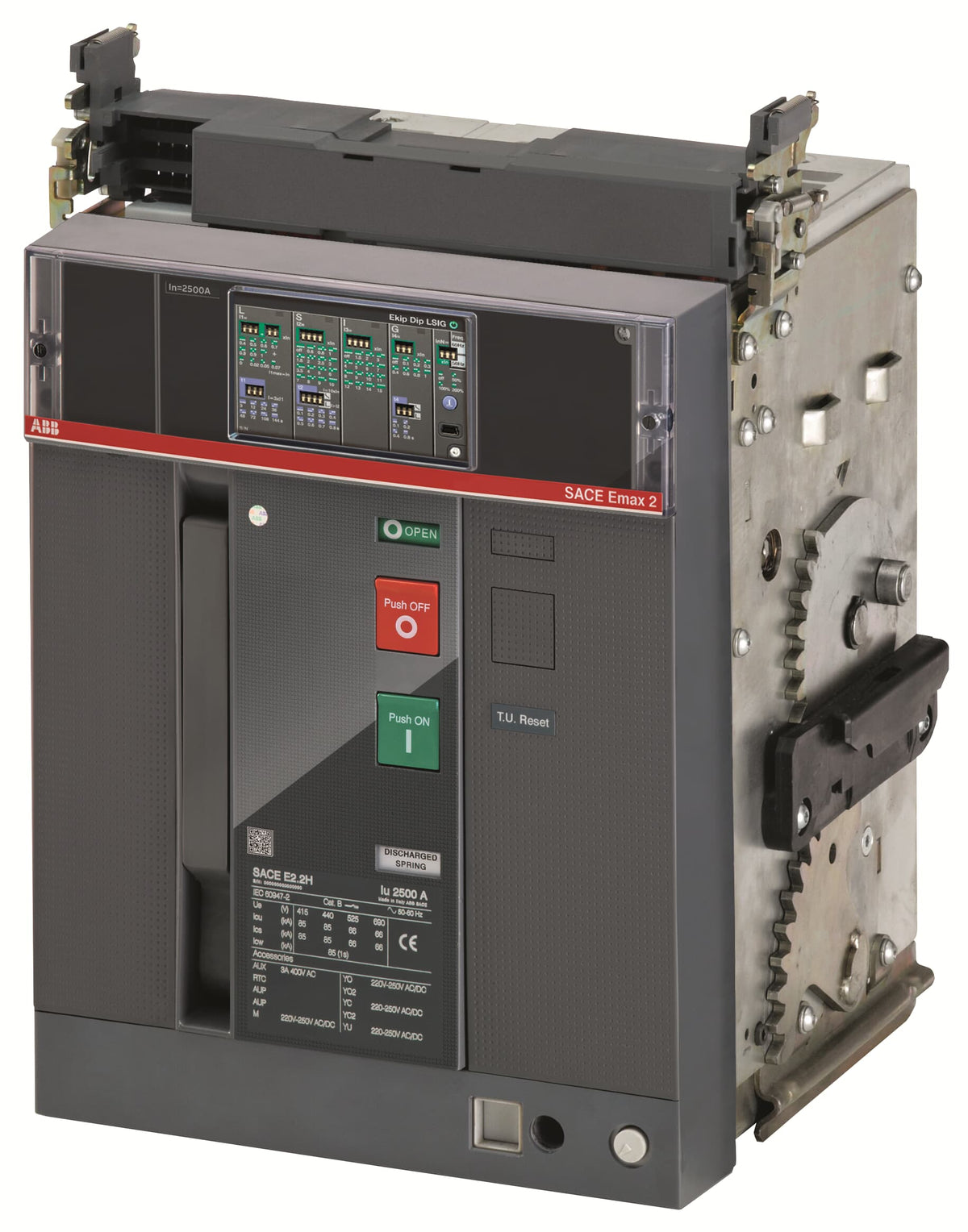

1SDA072331R1 is the ABB SACE Emax 2 E2.2B 1600 Ekip Dip LI 3p WMP, a withdrawable moving part on the larger E2.2 frame, rated 1600 A (Iu) with a 42 kA ultimate breaking capacity (Icu) at 400 V AC. It is the drawout truck only and needs an already-fitted fixed part and cradle to operate.

Technical Specifications

SKU 1SDA072331R1
Brand ABB
Series SACE Emax 2
Catalog Designation E2.2B 1600 Ekip Dip LI 3p WMP
EAN 8015644761813
Number of Poles 3P
Rated Current (In / Iu) 1600 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 42 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 42 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 42 kA / 1 s, 42 kA / 3 s
Release / Trip Unit Ekip Dip LI
Short-Circuit Performance Level B
Connecting Capacity 1200 mm²
Mounting Withdrawable (moving part only — fixed part/cradle ordered separately)
Current Type AC
Suitable for IT Networks Yes, up to 690 V
Power Loss 288 W
Net Dimensions (W x H x D) 317 x 425 x 383 mm
Net Weight 48 kg

Selection Notes

The E2.2 frame carries this unit to 1600 A, above anything the E1.2 frame in this range reaches, while its performance class B holds the 42 kA Icw flat across both the 1 s and 3 s withstand ratings — a steadier short-time withstand than the E1.2N moving parts, whose 3 s figure drops below the 1 s value. Ekip Dip LI has no short-time delay (S) stage, so it trips instantaneously on a fault; for a 1600 A position needing selective coordination with downstream breakers, the LSI-equipped version of this frame and current rating is the one to specify instead.

Technical Details

Short Description
ABB SACE Emax 2 E2.2B 1600 Ekip Dip LI 3p WMP moving part, 1600 A, 42 kA Icu at 400 V AC, withdrawable.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
42 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E2.2B 1600 Ekip Dip LI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E2.2B 1600 Ekip Dip LI 3p WMP
Tariff Code
853620
