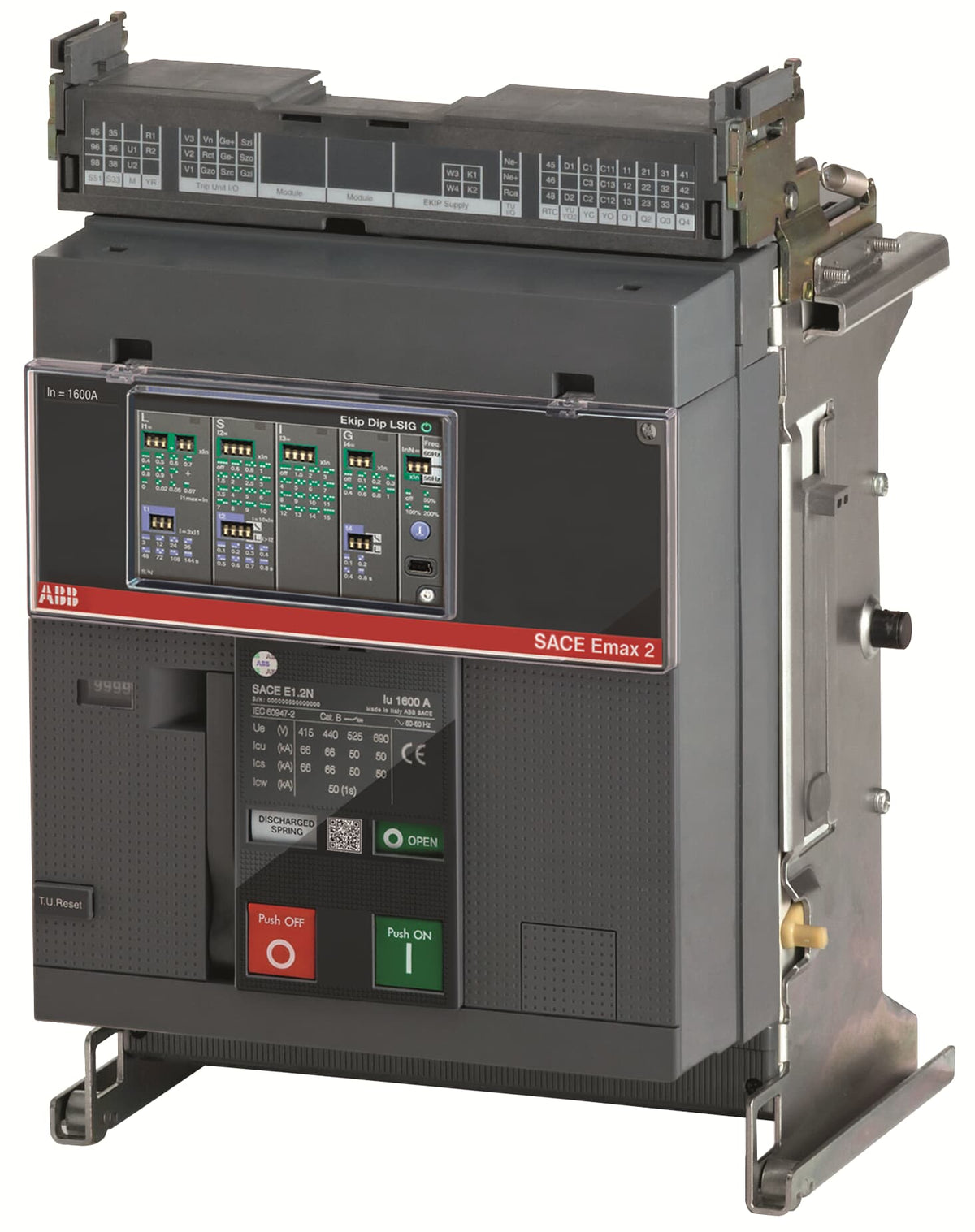

ABB 1SDA072221R1 E1.2C 1600 Ekip Dip LI 3p WMP 50kA Air Circuit Breaker

% $-3,179.29
ABB 1SDA072221R1 E1.2C 1600 Ekip Dip LI 3p WMP Air Circuit Breaker – 50kA Icu
ABB 1SDA072221R1 E1.2C 1600 Ekip Dip LI 3p WMP Air Circuit Breaker – 50kA Icu

ABB 1SDA072221R1 E1.2C 1600 Ekip Dip LI 3p WMP 50kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072221R1
Catalog No: E1.2C 1600 Ekip Dip LI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1600
Breaking Capacity: 50 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3,179.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's SACE Emax 2 1SDA072221R1 air circuit breaker delivers 1600 A rated current with Ekip Dip LI electronic release, three poles, and withdrawable moving part (WMP) mounting. It carries a 50 kA ultimate breaking capacity (Icu) at 400 V AC and a 1 s short-time withstand (Icw) of 42 kA, rated up to 690 V AC.

Technical Specifications

SKU 1SDA072221R1
Brand ABB
Series SACE Emax 2
Catalog Designation E1.2C 1600 Ekip Dip LI 3p WMP
EAN 8015644760717
Frame E1.2
Short-Circuit Performance Level C
Rated Current (In) 1600 A
Number of Poles 3P
Release Ekip Dip LI
Release Type Electronic (EL)
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 50 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 50 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 42 kA / 1 s, 24 kA / 3 s
Connecting Capacity 1200 mm²
Power Loss 400 W
Net Weight 18 kg
Dimensions (W × H × D) 278 × 363.5 × 271 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

At the top of this frame's current range, 1600 A, the Ekip Dip LI release on this breaker provides long-time overload and instantaneous short-circuit protection without a short-time delay stage, so it trips as soon as the instantaneous threshold is crossed rather than waiting out a graded delay. It is supplied as the withdrawable moving part (WMP), racking into a cradle rather than bolting in fixed. Three poles leave the neutral unswitched. For coordination below a main breaker at the same 1600 A rating, the LSI release is the variant to choose instead of this LI unit.

Technical Details

Short Description
ABB 1SDA072221R1 — SACE Emax 2 1600 A air circuit breaker, Ekip Dip LI, 3P, Icu 50 kA, Withdrawable.
Rated Current (Ampere)
1600
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E1.2C 1600 Ekip Dip LI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2C 1600 Ekip Dip LI 3p WMP
Tariff Code
853620
