ABB 1SDA072182R1 E1.2C 1250 Ekip Dip LSI 3p WMP 50kA Air Circuit Breaker

% $-2,896.80
ABB 1SDA072182R1 E1.2C 1250 Ekip Dip LSI 3p WMP Air Circuit Breaker – 50kA Icu
ABB 1SDA072182R1 E1.2C 1250 Ekip Dip LSI 3p WMP Air Circuit Breaker – 50kA Icu

ABB 1SDA072182R1 E1.2C 1250 Ekip Dip LSI 3p WMP 50kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072182R1
Catalog No: E1.2C 1250 Ekip Dip LSI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1250
Breaking Capacity: 50 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,896.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

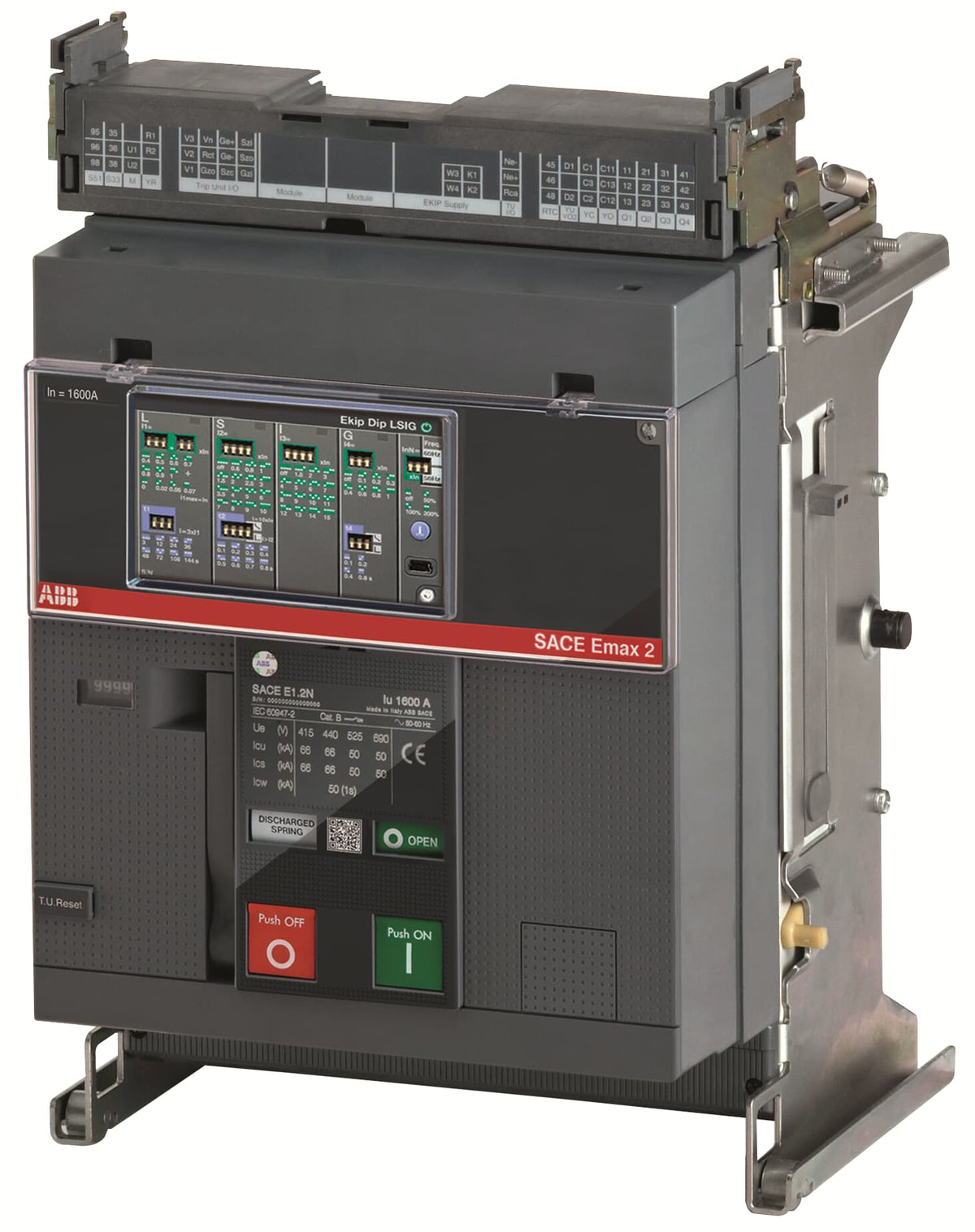

ABB's SACE Emax 2 1SDA072182R1 air circuit breaker delivers 1250 A rated current with Ekip Dip LSI electronic release, three poles, and withdrawable moving part (WMP) mounting. It carries a 50 kA ultimate breaking capacity (Icu) at 400 V AC and a 1 s short-time withstand (Icw) of 42 kA, rated up to 690 V AC.

Technical Specifications

SKU 1SDA072182R1
Brand ABB
Series SACE Emax 2
Catalog Designation E1.2C 1250 Ekip Dip LSI 3p WMP
EAN 8015644760328
Frame E1.2
Short-Circuit Performance Level C
Rated Current (In) 1250 A
Number of Poles 3P
Release Ekip Dip LSI
Release Type Electronic (EL)
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 50 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 50 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 42 kA / 1 s, 24 kA / 3 s
Connecting Capacity 1000 mm²
Power Loss 244 W
Net Weight 18 kg
Dimensions (W × H × D) 278 × 363.5 × 271 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

This 1250 A, three-pole breaker carries the same Ekip Dip LSI release as its fixed sibling but as the withdrawable moving part (WMP), so it can be pulled from its cradle for maintenance or replacement without re-wiring the busbar. The short-time delay stage still applies, giving 42 kA for 1 s of Icw to support graded tripping below a main incomer. Unlike the four-pole version in the same frame, it does not switch the neutral, which fits a TN-C or three-wire arrangement. Choose the F F fixed version where the withdrawable function and its cradle are not needed.

Technical Details

Short Description
ABB 1SDA072182R1 — SACE Emax 2 1250 A air circuit breaker, Ekip Dip LSI, 3P, Icu 50 kA, Withdrawable.
Rated Current (Ampere)
1250
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E1.2C 1250 Ekip Dip LSI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2C 1250 Ekip Dip LSI 3p WMP
Tariff Code
853620
