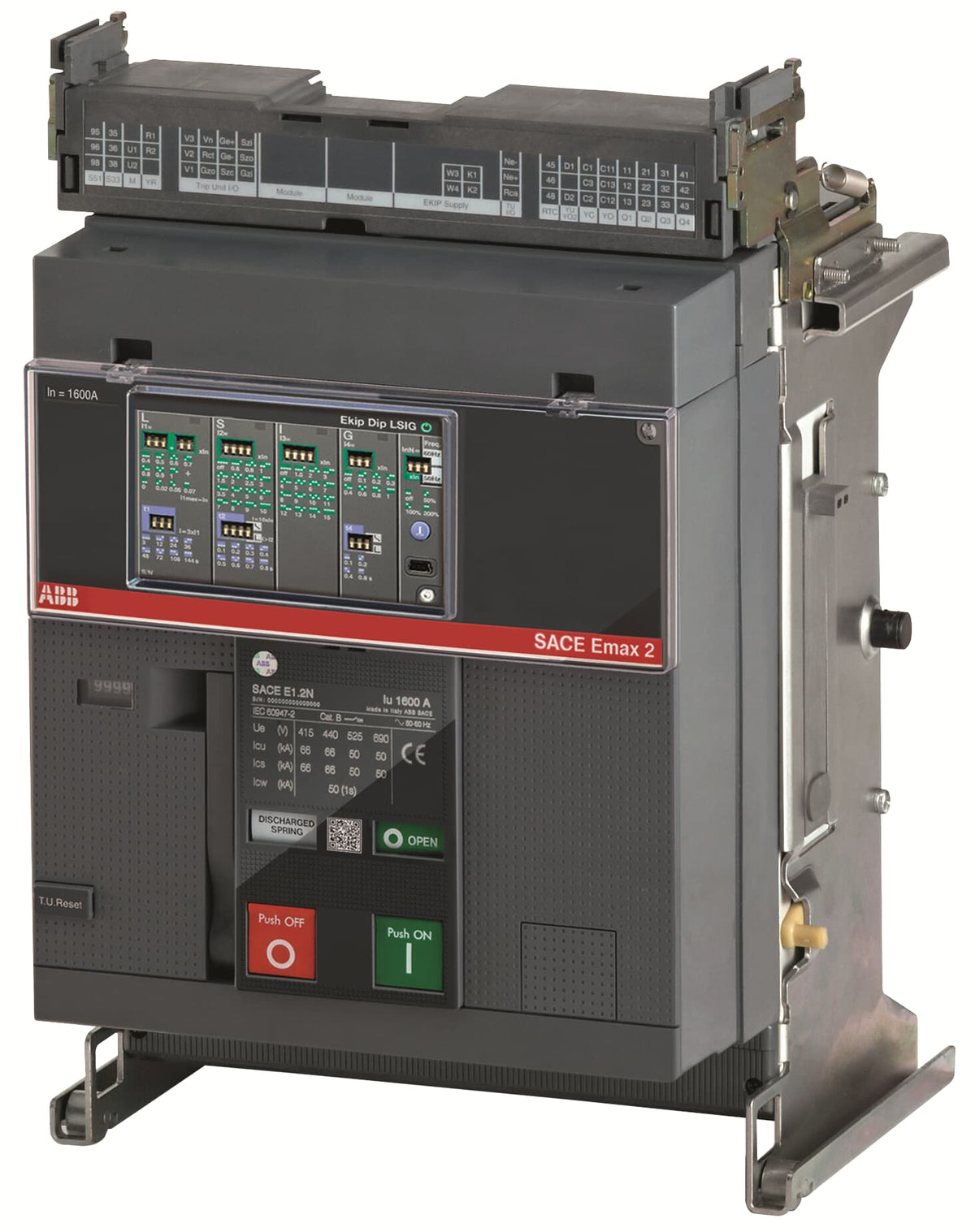

ABB 1SDA072172R1 E1.2B 1250 Ekip Dip LSI 3p WMP 42kA Air Circuit Breaker

% $-2,817.98
ABB 1SDA072172R1 E1.2B 1250 Ekip Dip LSI 3p WMP Air Circuit Breaker - 1250A 3P 42kA
ABB 1SDA072172R1 E1.2B 1250 Ekip Dip LSI 3p WMP Air Circuit Breaker - 1250A 3P 42kA

ABB 1SDA072172R1 E1.2B 1250 Ekip Dip LSI 3p WMP 42kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072172R1
Catalog No: E1.2B 1250 Ekip Dip LSI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 1250
Breaking Capacity: 42 kA
Breaking Type: Ekip Dip LSI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,817.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA072172R1 is the E1.2B performance level B withdrawable moving part of the SACE Emax 2 air circuit breaker, rated 1250 A across 3 poles with an Ekip Dip LSI electronic release. It delivers 42 kA ultimate breaking capacity (Icu) at 400 V AC and 42 kA short-time withstand (Icw) for 1 s, for use up to 690 V AC in drawout switchboard applications.

Technical Specifications

SKU 1SDA072172R1
Brand ABB
Series Emax 2
Catalog Designation E1.2B 1250 Ekip Dip LSI 3p WMP
EAN 8015644760229
Frame / Sub-type E1.2
Short-Circuit Performance Level B
Number of Poles 3P
Rated Current (In) 1250 A
Rated Uninterrupted Current (Iu) 1250 A
Rated Operational Voltage (Ue) 690 V AC
Rated Voltage (Ur) 690 V
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Rated Ultimate Short-Circuit Breaking Capacity (Icu) 42 kA at 400-690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics) 42 kA at 220-690 V AC (100% of Icu)
Rated Short-time Withstand Current (Icw) 42 kA for 1 s / 24 kA for 3 s
Release / Trip Unit Ekip Dip LSI
Connecting Capacity 1000 mm²
Power Loss 244 W
Suitable for IT Networks Yes, up to 690 V
Net Dimensions (W x H x D) 278 x 363.5 x 271 mm
Net Weight 18 kg

Selection Notes

The LSI release on this 1250 A, 3-pole moving part keeps the 42 kA/1 s Icw available as a deliberate short-time delay, so it can be set to ride through a downstream fault and let a smaller breaker trip first. That makes it a better candidate for a sub-main position than the LI-only 1250 A variant, which trips instantaneously with no coordination step. As with the rest of the Emax 2 WMP line, the fixing part for the withdrawable cradle is ordered separately.

Technical Details

Short Description
ABB 1SDA072172R1 - SACE Emax 2 E1.2B air circuit breaker moving part, 1250 A, 3-pole, Ekip Dip LSI, 42 kA Icu at 400 V AC.
Rated Current (Ampere)
1250
Breaking Capacity (kA)
42 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E1.2B 1250 Ekip Dip LSI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2B 1250 Ekip Dip LSI 3p WMP
Tariff Code
853620
