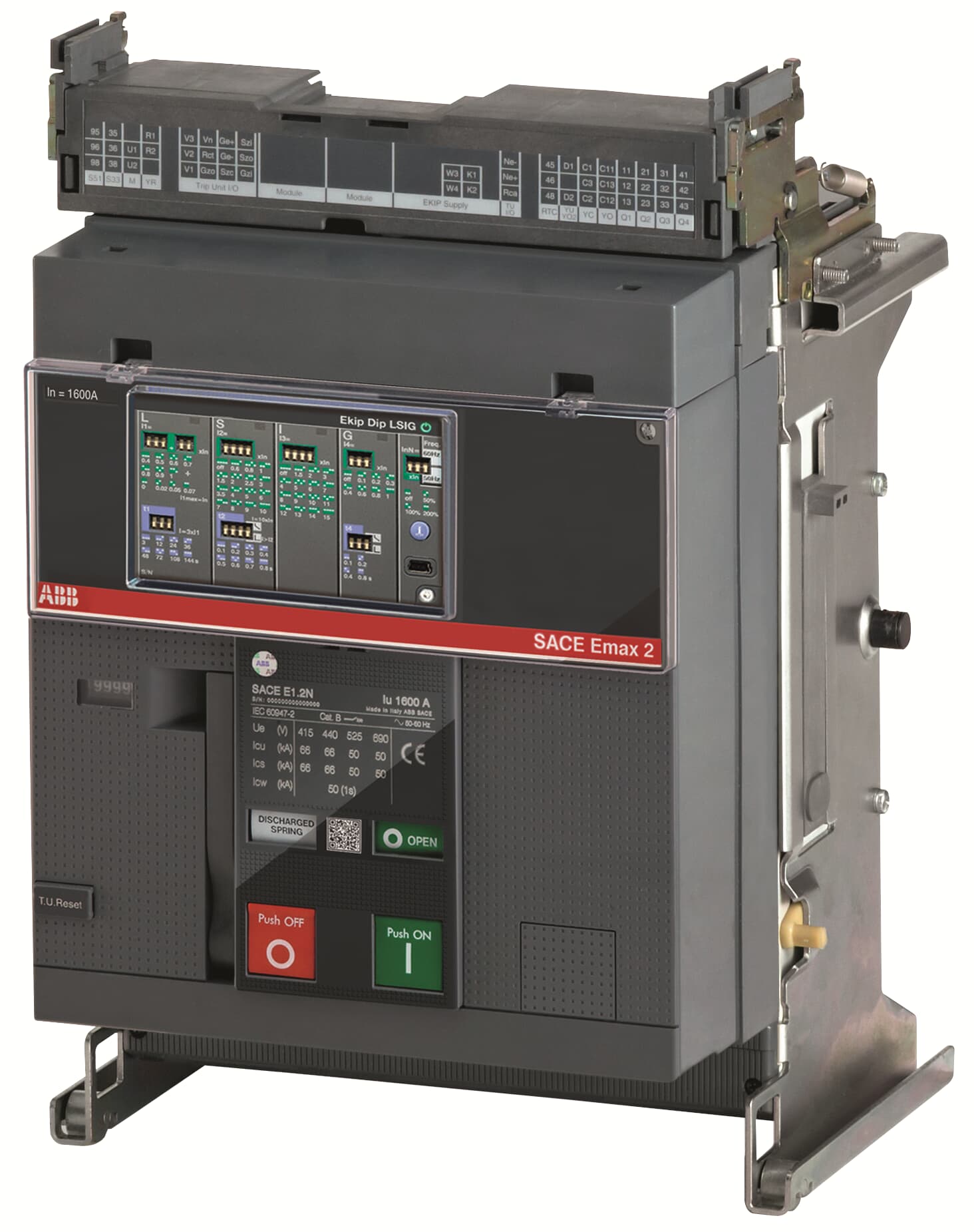

ABB 1SDA072151R1 E1.2N 1000 Ekip Dip LI 3p WMP 1000A 3P 66kA Withdrawable Power Circuit Breaker

The ABB 1SDA072151R1 — catalog number E1.2N 1000 Ekip Dip LI 3p WMP — is a 1000A, 3-pole withdrawable power circuit breaker from the SACE Emax 2 series, delivering a breaking capacity of 66 kA at 400V AC. Designed for transformer, generator, and installation protection, this unit features the Ekip Dip LI electronic trip unit and a withdrawable moving part (WMP) mounting for ease of maintenance in demanding power distribution environments.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH chemical safety regulation
• EU Directive 2011/65/EU: Compliance with the original RoHS2 Directive
• Amendment 2015/863: Compliant with the updated RoHS2 restricted substances list
• IEC: Manufactured to International Electrotechnical Commission standards
• IEC 60947: Compliant with IEC 60947 low-voltage switchgear and controlgear standard
• EN 45555: Compliant with general methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
• UL 2799: Certified to UL 2799 standard for electrical systems
• ATEX: Certified for use in potentially explosive atmospheres
• CSA: Canadian Standards Association certified
• CE: Carries CE marking for European Economic Area compliance
• VDE: Certified by VDE (Verband der Elektrotechnik) German electrical engineering standard
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

• Transformer protection in industrial and commercial power distribution panels
• Generator protection for standby and primary power systems
• Main installation protection in low-voltage switchboards
• Applications requiring withdrawable circuit breaker functionality for rapid maintenance and replacement
• Heavy industrial facilities, data centres, and infrastructure projects demanding high breaking capacity at 400V AC
