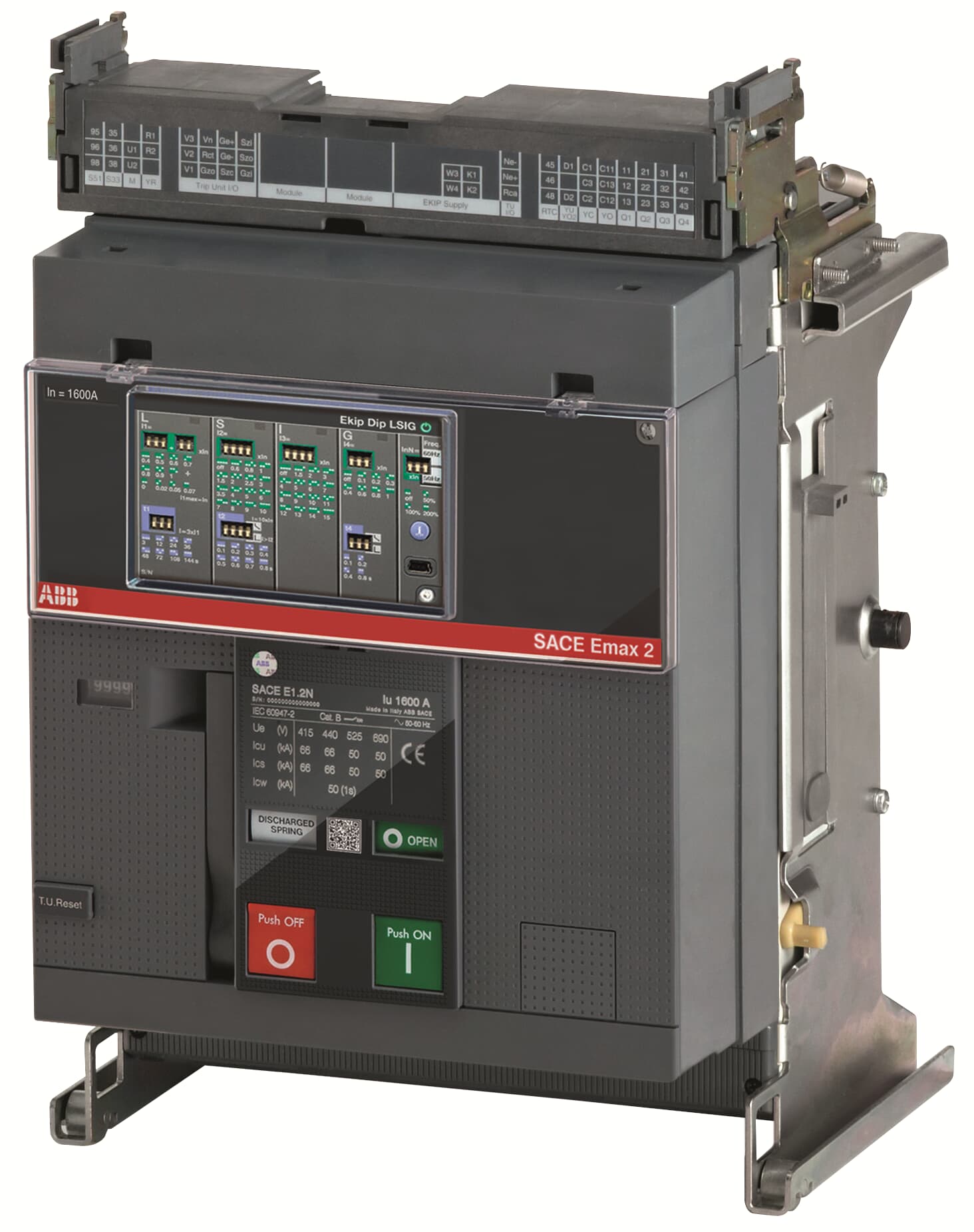

ABB 1SDA072141R1 E1.2C 1000 Ekip Dip LI 3p WMP 1000A 3P 50kA Withdrawable Power Circuit Breaker

The ABB 1SDA072141R1 E1.2C 1000 Ekip Dip LI 3p WMP is a heavy-duty withdrawable power circuit breaker from the SACE Emax2 E1.2 series, rated at 1000 A with a breaking capacity of 50 kA at 400 V AC. Featuring the Ekip Dip LI trip unit with Long-time and Instantaneous protection functions, the E1.2C 1000 Ekip Dip LI 3p WMP delivers reliable protection for transformers, generators, and power distribution installations in demanding industrial environments.

Technical Specifications

Certifications & Standards

• CE: Compliant with applicable EU directives for the European Economic Area
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• Amendment 2015/863: Compliant with the updated RoHS substance restriction amendment
• REACH: Compliant with EU REACH regulation on chemical substances
• IEC: Designed and tested in accordance with applicable IEC standards for power circuit breakers
• UL 2799: Listed to UL 2799 standard
• ATEX: Certified for use in potentially explosive atmospheres
• CSA: Certified to Canadian Standards Association requirements
• VDE: Tested and approved by VDE (Verband der Elektrotechnik) to relevant German/European electrical standards
• WEEE: Compliant with EU Directive on Waste Electrical and Electronic Equipment for responsible end-of-life disposal

Applications & Use Cases

• Transformer feeder and outgoing protection in main and sub-distribution switchboards
• Generator protection in standby and prime power applications
• Main incoming protection for industrial power distribution panels
• Motor feeders and large load protection in heavy industry and process plants
• Applications requiring withdrawable design for ease of maintenance and hot-swap capability
• Hazardous area installations where ATEX certification is required
