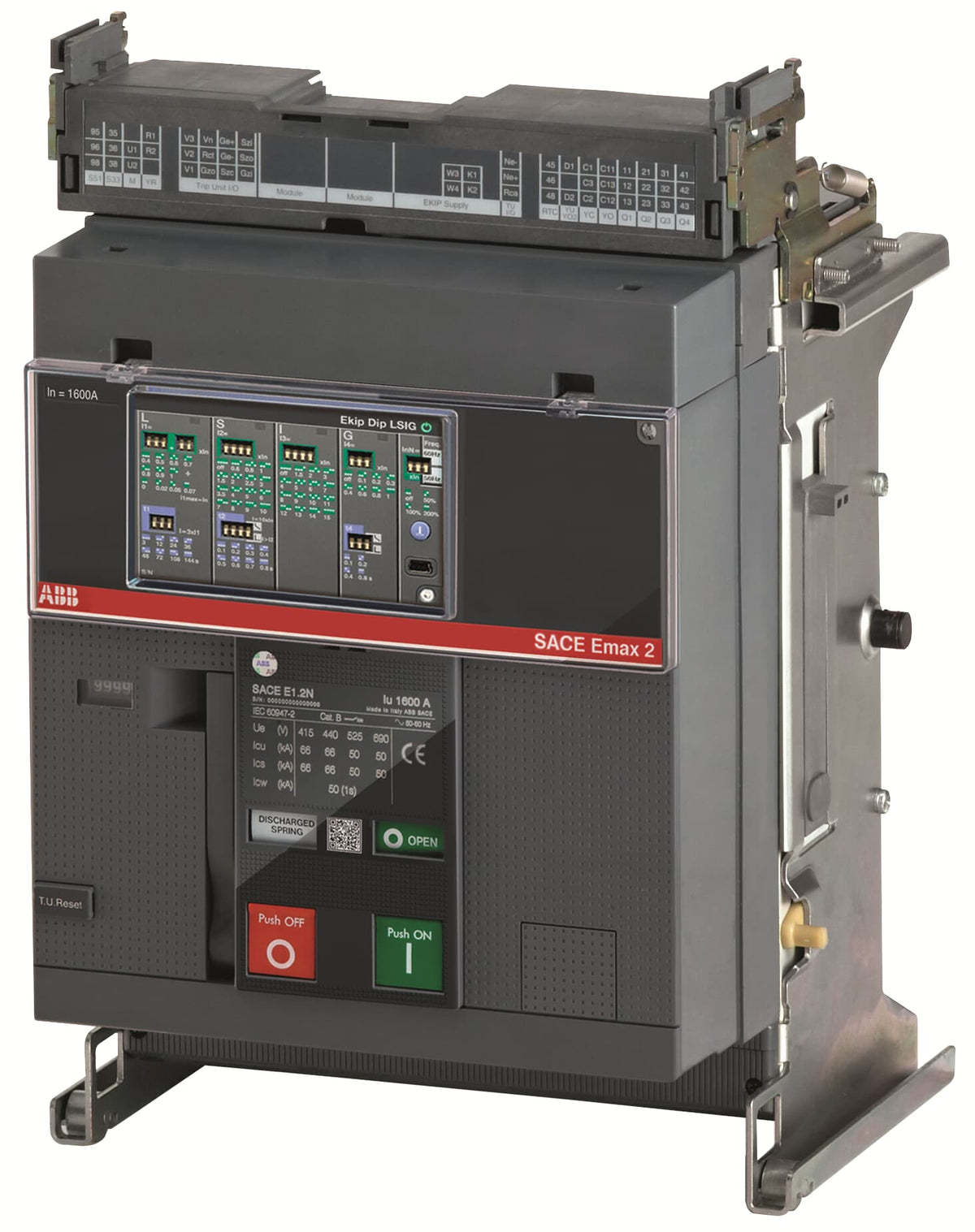

ABB 1SDA072101R1 E1.2C 800 Ekip Dip LI 3p WMP 50kA Air Circuit Breaker

% $-2,610.09
ABB 1SDA072101R1 E1.2C 800 Ekip Dip LI 3p WMP Air Circuit Breaker – 50kA Icu
ABB 1SDA072101R1 E1.2C 800 Ekip Dip LI 3p WMP Air Circuit Breaker – 50kA Icu

ABB 1SDA072101R1 E1.2C 800 Ekip Dip LI 3p WMP 50kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072101R1
Catalog No: E1.2C 800 Ekip Dip LI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 800
Breaking Capacity: 50 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,610.09

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's SACE Emax 2 1SDA072101R1 air circuit breaker delivers 800 A rated current with Ekip Dip LI electronic release, three poles, and withdrawable moving part (WMP) mounting. It carries a 50 kA ultimate breaking capacity (Icu) at 400 V AC and a 1 s short-time withstand (Icw) of 42 kA, rated up to 690 V AC.

Technical Specifications

SKU 1SDA072101R1
Brand ABB
Series SACE Emax 2
Catalog Designation E1.2C 800 Ekip Dip LI 3p WMP
EAN 8015644759513
Frame E1.2
Short-Circuit Performance Level C
Rated Current (In) 800 A
Number of Poles 3P
Release Ekip Dip LI
Release Type Electronic (EL)
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 50 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 50 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 42 kA / 1 s, 24 kA / 3 s
Connecting Capacity 500 mm²
Power Loss 100 W
Net Weight 18 kg
Dimensions (W × H × D) 278 × 363.5 × 271 mm
Suitable for IT Networks Yes, up to 690 V

Selection Notes

At 800 A, Ekip Dip LI provides long-time overload and instantaneous short-circuit protection without the short-time delay stage of an LSI release, so this breaker clears a fault immediately once the instantaneous threshold is reached. It is the withdrawable moving part (WMP), racking into a cradle for isolation and replacement rather than bolting in fixed. Three poles leave the neutral unswitched, appropriate where N does not need to be broken. For selective coordination below a downstream breaker at the same 800 A rating, the LSI release is the one to specify.

Technical Details

Short Description
ABB 1SDA072101R1 — SACE Emax 2 800 A air circuit breaker, Ekip Dip LI, 3P, Icu 50 kA, Withdrawable.
Rated Current (Ampere)
800
Breaking Capacity (kA)
50 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E1.2C 800 Ekip Dip LI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2C 800 Ekip Dip LI 3p WMP
Tariff Code
853620
