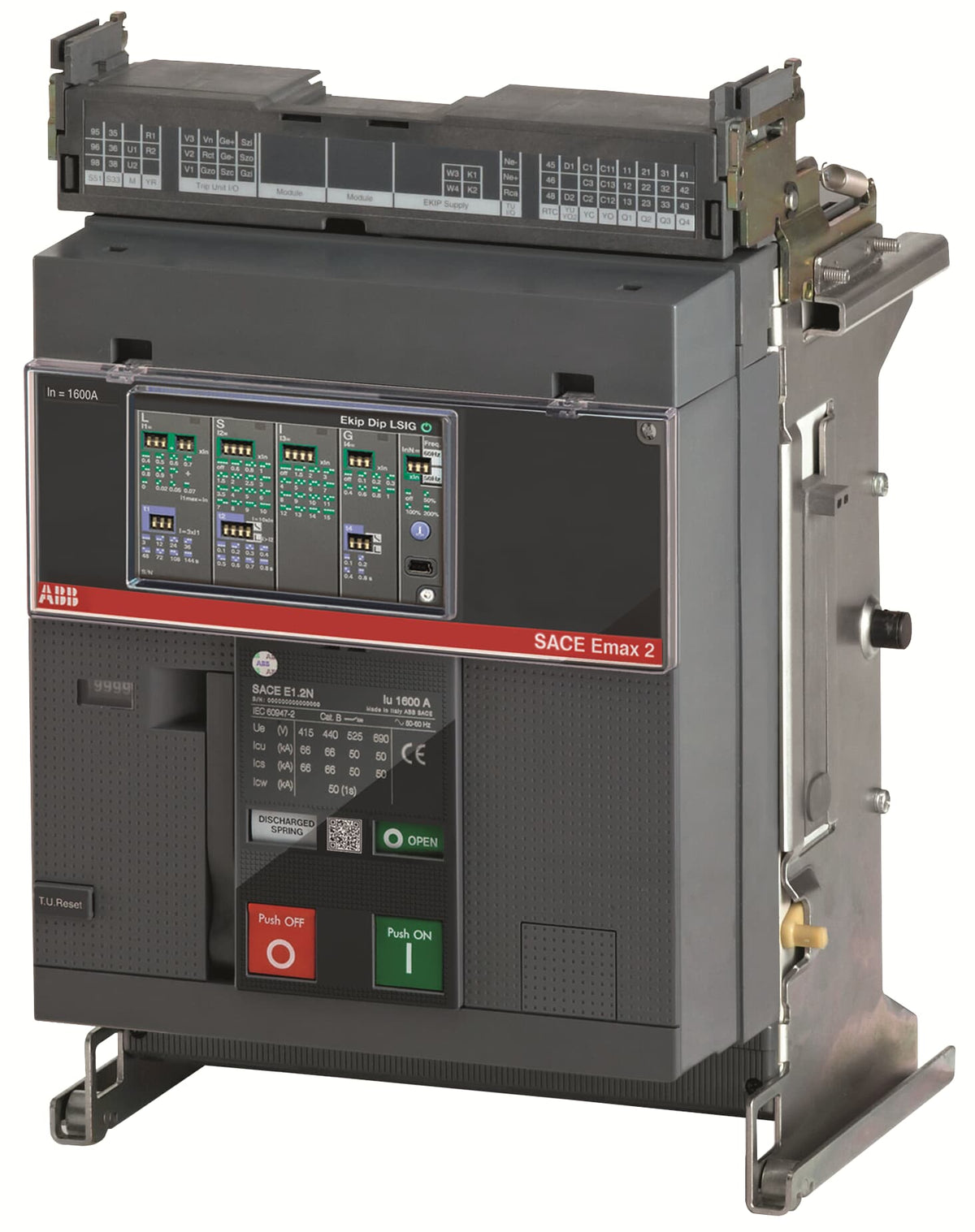

ABB 1SDA072071R1 E1.2N 630 Ekip Dip LI 3p WMP 66kA Air Circuit Breaker

% $-2,589.98
ABB 1SDA072071R1 E1.2N 630 Ekip Dip LI 3p WMP Air Circuit Breaker - 66 kA
ABB 1SDA072071R1 E1.2N 630 Ekip Dip LI 3p WMP Air Circuit Breaker - 66 kA

ABB 1SDA072071R1 E1.2N 630 Ekip Dip LI 3p WMP 66kA Air Circuit Breaker

Brand: ABB
Reference No: 1SDA072071R1
Catalog No: E1.2N 630 Ekip Dip LI 3p WMP
Series: Emax 2
Tariff Code (HS): 853620
Rated Current: 630
Breaking Capacity: 66 kA
Breaking Type: Ekip Dip LI
Rated Voltage: 690 V AC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$2,589.98

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

1SDA072071R1 identifies the ABB SACE Emax 2 E1.2N 630 Ekip Dip LI 3p WMP, a three-pole withdrawable moving part rated 630 A (Iu) with a 66 kA ultimate breaking capacity (Icu) at 400 V AC. This order code covers the drawout truck only, so a matching fixed part and cradle must already be installed for it to function.

Technical Specifications

SKU 1SDA072071R1
Brand ABB
Series SACE Emax 2
Catalog Designation E1.2N 630 Ekip Dip LI 3p WMP
EAN 8015644759216
Number of Poles 3P
Rated Current (In / Iu) 630 A
Rated Operational Voltage (Ue) 690 V AC
Rated Insulation Voltage (Ui) 1000 V AC
Rated Impulse Withstand Voltage (Uimp) 12 kV (IEC 60947-2)
Rated Ultimate Breaking Capacity (Icu) at 400 V AC 66 kA
Rated Service Breaking Capacity (Ics) at 400 V AC 50 kA (100% of Icu)
Rated Short-Time Withstand Current (Icw) 50 kA / 1 s, 30 kA / 3 s
Release / Trip Unit Ekip Dip LI
Short-Circuit Performance Level N
Connecting Capacity 400 mm²
Mounting Withdrawable (moving part only — fixed part/cradle ordered separately)
Current Type AC
Suitable for IT Networks Yes, up to 690 V
Power Loss 62 W
Net Dimensions (W x H x D) 278 x 363.5 x 271 mm
Net Weight 18 kg

Selection Notes

Ekip Dip LI protects only on overload (L) and instantaneous (I); without the short-time delay (S) stage it opens immediately on a fault rather than holding selectively, so it suits a final three-pole feeder rather than a main with downstream coordination. Within the E1.2N 630 WMP line, the three-pole version is the one to pick for a three-wire circuit with no switched neutral — the four-pole 630 A WMP sibling exists for installations that need the neutral pole switched too.

Technical Details

Short Description
ABB SACE Emax 2 E1.2N 630 Ekip Dip LI 3p WMP moving part, 630 A, 66 kA Icu at 400 V AC, withdrawable.
Rated Current (Ampere)
630
Breaking Capacity (kA)
66 kA
Rated Voltage (VAC)
690 V AC
Mounting Type
Withdrawable
Catalog No
E1.2N 630 Ekip Dip LI 3p WMP
Number of Poles
3P
Delivery Date (Days)
30 days
Model Number
E1.2N 630 Ekip Dip LI 3p WMP
Tariff Code
853620
